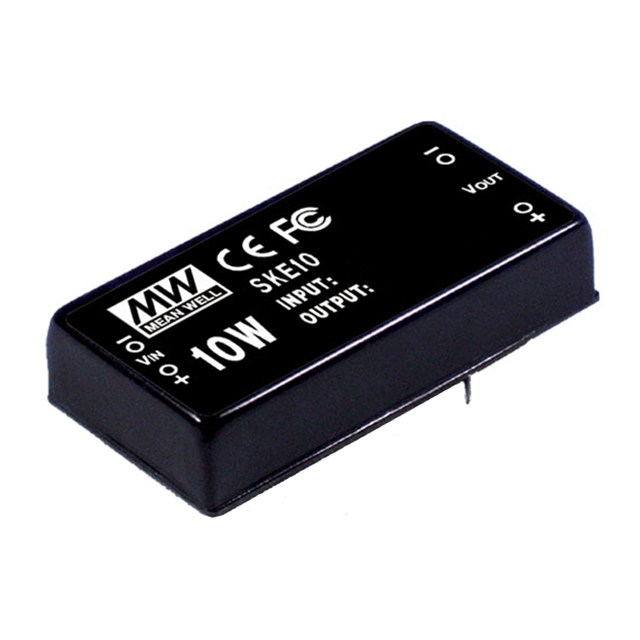

SKE10 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC DC CONVERTER 5V 10W
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Power (Watts) | Voltage - Input (Min) [Min] | Voltage - Output 1 | Voltage - Input (Max) [Max] | Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Current - Output (Max) [Max] | Efficiency | Voltage - Isolation | Applications | Mounting Type | Number of Outputs | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | -25 °C | 71 °C | 5-DIP Module | 10 W | 9 V | 5 V | 18 V | Isolated Module | 2 in | 0.44 in | 50.8 mm | 25.4 mm | 1 " | 11.3 mm | 2 A | 78 % | 1000 V | ITE (Commercial) | Through Hole | 1 | OCP SCP |
MEAN WELL USA Inc. | -25 °C | 71 °C | 5-DIP Module | 10 W | 18 V | 15 V | 36 V | Isolated Module | 2 in | 0.44 in | 50.8 mm | 25.4 mm | 1 " | 11.3 mm | 666 mA | 1000 V | ITE (Commercial) | Through Hole | 1 | OCP SCP |
