91910 Series

Catalog

CONN HDR 25POS SMD GOLD

Part	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Features	Connector Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Number of Positions	Mated Stacking Heights

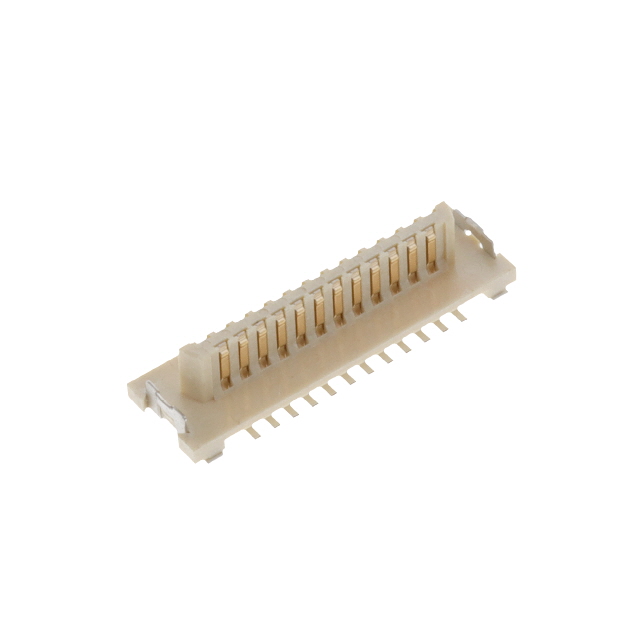

Amphenol ICC (FCI) 91910-21225LF	0.039 in	1 mm	2	Surface Mount	Board Guide Solder Retention	Header Center Strip Contacts	0.048 "	1.22 mm	Gold or Gold GXT™	15 µin	0.38 µm

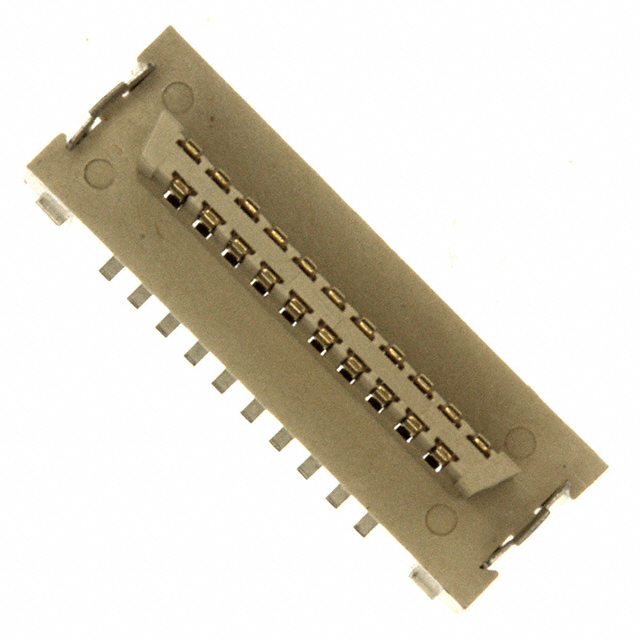

Amphenol ICC (FCI) 91910-21521LF	0.039 in	1 mm	2	Surface Mount	Board Guide Solder Retention	Header Center Strip Contacts			Gold or Gold GXT™	15 µin	0.38 µm	3.72 mm	0.147 in	21	7 mm

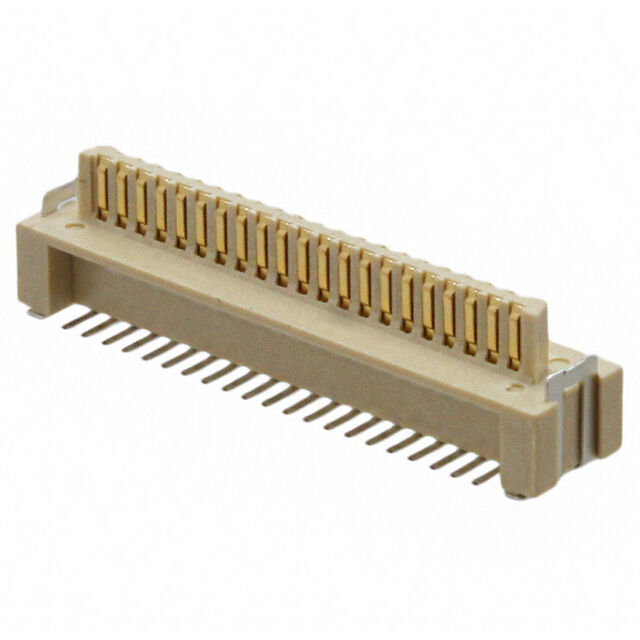

Amphenol ICC (FCI) 91910-21541LF	0.039 in	1 mm	2	Surface Mount	Board Guide Solder Retention	Header Center Strip Contacts			Gold or Gold GXT™	15 µin	0.38 µm	3.72 mm	0.147 in	41	7 mm
Amphenol ICC (FCI) 91910-21325	0.039 in	1 mm	2	Surface Mount	Board Guide Solder Retention	Header Center Strip Contacts			Gold or Gold GXT™	15 µin	0.38 µm	1.73 mm	0.068 in		5 mm
Amphenol ICC (FCI) 91910-22315LF	0.039 in	1 mm	2	Surface Mount	Board Guide Solder Retention	Header Center Strip Contacts			Gold or Gold GXT™	30 Áin	0.76 Ám	1.73 mm	0.068 in	15	5 mm
Amphenol ICC (FCI) 91910-21311LF	0.039 in	1 mm	2	Surface Mount	Board Guide Solder Retention	Header Center Strip Contacts			Gold or Gold GXT™	15 µin	0.38 µm	1.73 mm	0.068 in	11	5 mm
Amphenol ICC (FCI) 91910-21141	0.039 in	1 mm	2	Surface Mount	Board Guide Solder Retention	Header Center Strip Contacts			Gold or Gold GXT™	15 µin	0.38 µm	0.86 mm	0.034 "	41	4.15 mm

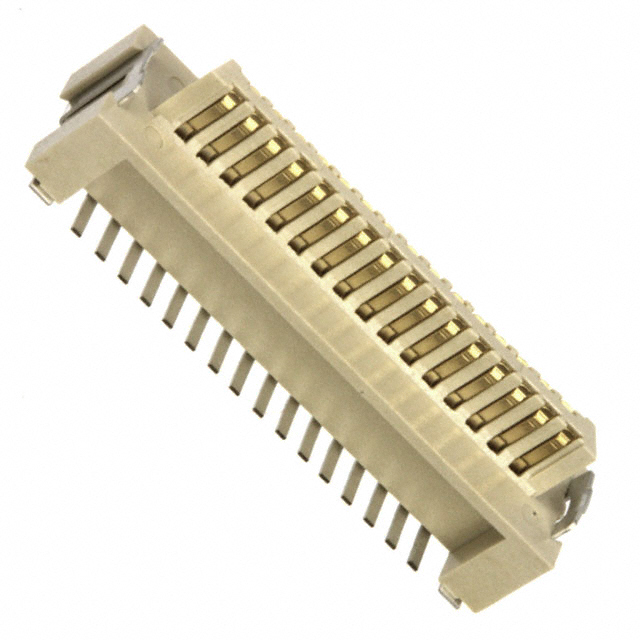

Amphenol ICC (FCI) 91910-21531LF	0.039 in	1 mm	2	Surface Mount	Board Guide Solder Retention	Header Center Strip Contacts			Gold or Gold GXT™	15 µin	0.38 µm	3.72 mm	0.147 in	31	7 mm

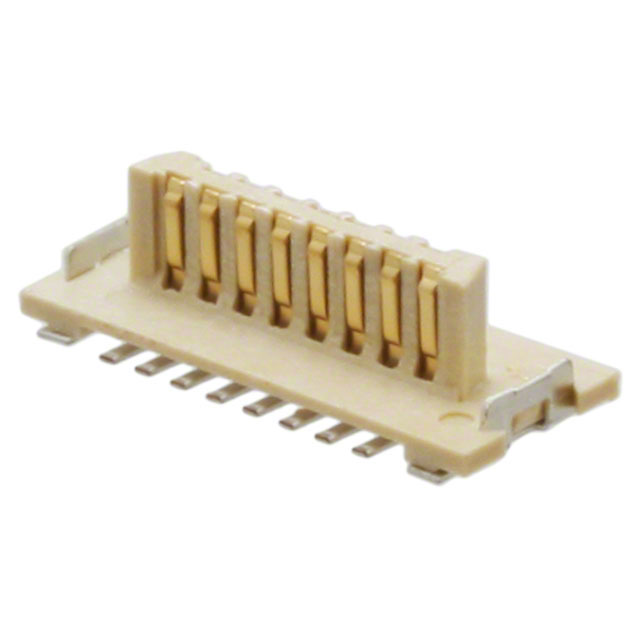

Amphenol ICC (FCI) 91910-21115LF	0.039 in	1 mm	2	Surface Mount	Board Guide Solder Retention	Header Center Strip Contacts			Gold or Gold GXT™	15 µin	0.38 µm	0.86 mm	0.034 "	15	4.15 mm
Amphenol ICC (FCI) 91910-21331LF	0.039 in	1 mm	2	Surface Mount	Board Guide Solder Retention	Header Center Strip Contacts			Gold or Gold GXT™	15 µin	0.38 µm	1.73 mm	0.068 in	31	5 mm
