NEOHM SMA-Q Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

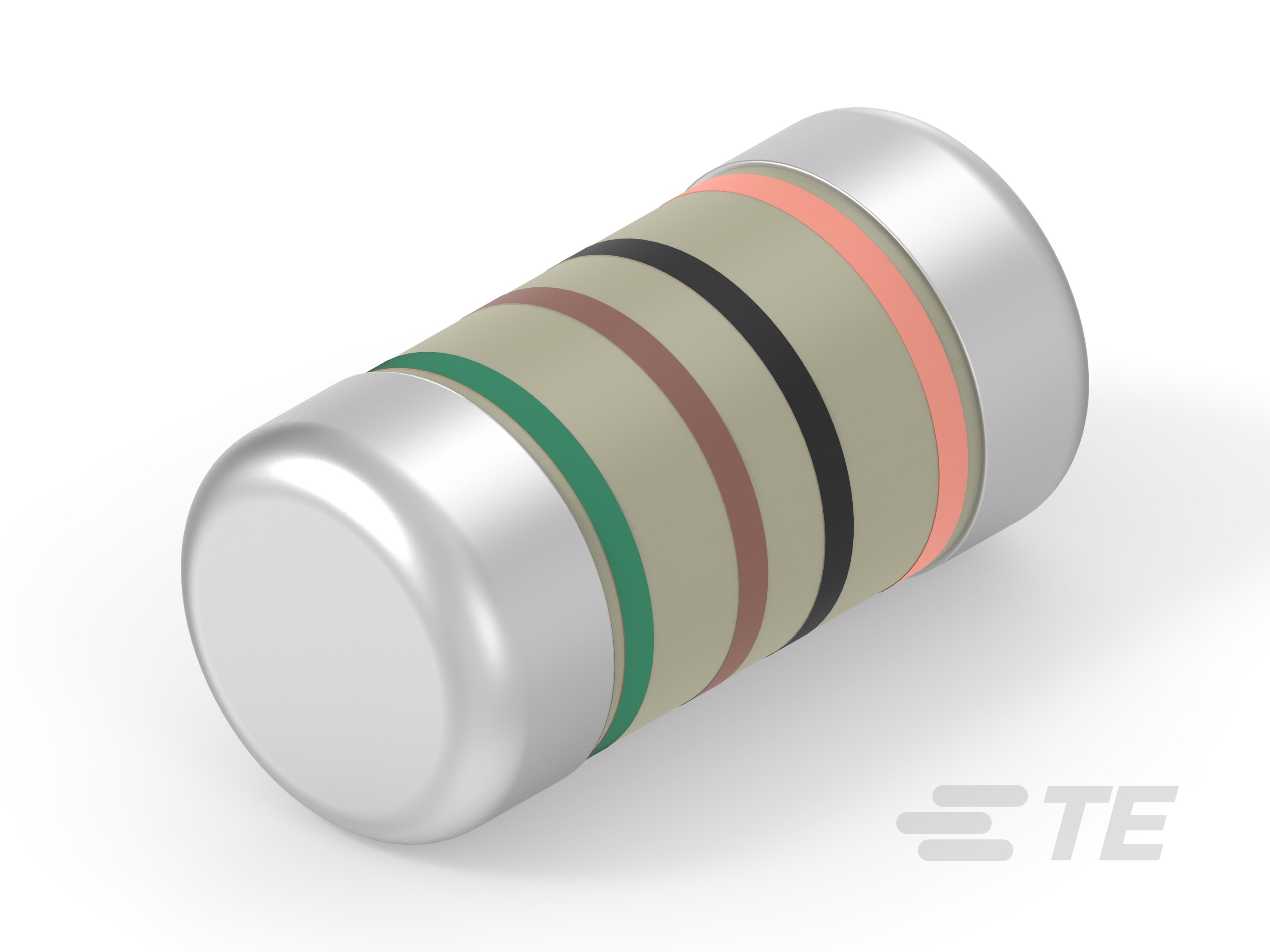

MELF SMA-Q 147R 0.1% 25PPM 0102 0.2W
| Part | Power (Watts) | Power (Watts) | Composition | Temperature Coefficient | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Resistance | Features | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Ratings | Package / Case | Tolerance | Number of Terminations [custom] | Size / Dimension [y] | Power (Watts) [Min] | Power (Watts) [Max] | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.2 W | 0.2 W | Thin Film | 25 ppm/°C | 0102 | 155 C | -55 C | 147 Ohms | Automotive AEC-Q200 | 1.1 mm | 0.043 in | 2.2 mm | 0.087 in | AEC-Q200 | MELF 0102 | 0.1 % | 2 | ||||
TE Connectivity AMP Connectors | 0.25 W | 0.25 W | Thin Film | 25 ppm/°C | 0204 | 155 C | -55 C | 4.12 kOhms | Automotive AEC-Q200 | 0.055 in | 0.138 in 1.4 mm | AEC-Q200 | MELF 0204 | 0.1 % | 2 | 3.5 mm | |||||
TE Connectivity AMP Connectors | 0.25 W | 0.25 W | Thin Film | 25 ppm/°C | 0204 | 155 C | -55 C | 8.25 kOhms | Automotive AEC-Q200 | 0.055 in | 0.138 in 1.4 mm | AEC-Q200 | MELF 0204 | 0.1 % | 2 | 3.5 mm | |||||
 TE Connectivity AMP Connectors | 0.4 W | Thin Film | 25 ppm/°C | 0204 | 155 C | -55 C | 1500 Ohms | Automotive AEC-Q200 | 0.055 in | 0.138 in 1.4 mm | MELF 0204 | 0.1 % | 2 | 3.5 mm | 2 W | 5 W | |||||
TE Connectivity AMP Connectors | 0.2 W | 0.2 W | Thin Film | 25 ppm/°C | 0102 | 155 C | -55 C | 53.6 kOhms | Automotive AEC-Q200 | 1.1 mm | 0.043 in | 2.2 mm | 0.087 in | AEC-Q200 | MELF 0102 | 0.1 % | 2 | ||||
TE Connectivity AMP Connectors | 300 mW | Thin Film | 25 ppm/°C | 0102 | 155 C | -55 C | 38.3 kOhms | Automotive AEC-Q200 | 1.1 mm | 0.043 in | 2.2 mm | 0.087 in | AEC-Q200 | MELF 0102 | 0.1 % | 2 | |||||
 TE Connectivity AMP Connectors | Thin Film | 0207 | 155 C | -55 C | 0 mOhms | Automotive AEC-Q200 | 2.2 mm | 0.087 " | 5.9 mm | 0.232 " | MELF 0207 | 2 | Jumper | ||||||||
TE Connectivity AMP Connectors | 0.5 W | 0.5 W | Thin Film | 25 ppm/°C | 0207 | 155 C | -55 C | 8.66 kOhms | Automotive AEC-Q200 | 2.2 mm | 0.087 " | 5.9 mm | 0.232 " | AEC-Q200 | MELF 0207 | 0.1 % | 2 | ||||
TE Connectivity AMP Connectors | 0.4 W | Thin Film | 25 ppm/°C | 0204 | 155 C | -55 C | Automotive AEC-Q200 | 0.055 in | 0.138 in 1.4 mm | AEC-Q200 | MELF 0204 | 0.1 % | 2 | 3.5 mm | 2 W | 5 W | |||||
TE Connectivity AMP Connectors | 1 W | Thin Film | 25 ppm/°C | 0207 | 155 C | -55 C | 6.34 kOhms | Automotive AEC-Q200 | 2.2 mm | 0.087 " | 5.9 mm | 0.232 " | AEC-Q200 | MELF 0207 | 0.1 % | 2 |
