G10KAC-P Series
Manufacturer: ODU
Beta
⌘K

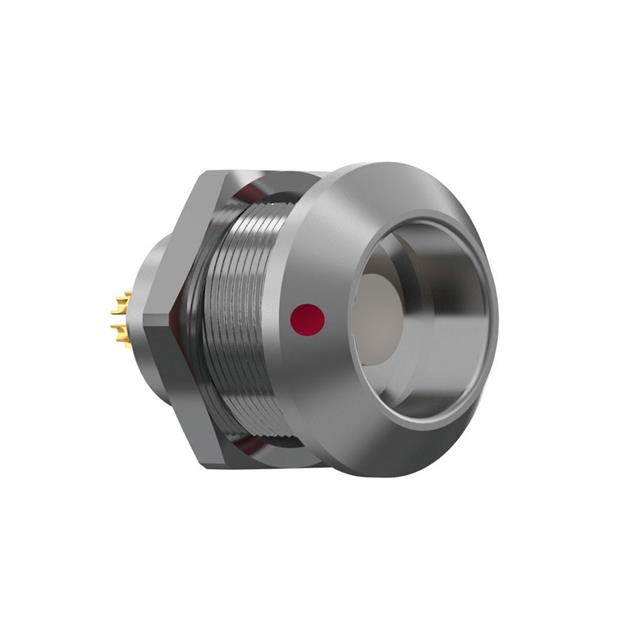

CONN RCPT FMALE 6P GOLD SLDR CUP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Finish - Mating | Mounting Type | Features | Orientation | Ingress Protection | Shell Material | Shell Finish | Shell Size - Insert [custom] | Mounting Feature | Fastening Type | Number of Positions | Current Rating (Amps) | Connector Type | Insert Material | Primary Material | Shielding | Applications | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
120 °C | -40 C | Silver | Gold | Panel Mount | Ground | A | IP68 - Dust Tight Waterproof | Brass | Chrome over Nickel | 0 | Bulkhead - Rear Side Nut | Push-Pull | 6 | 4 A | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Metal | Shielded | Industrial Medical Military Testing Equipment & Measurement | Brass | |
120 °C | -40 C | Silver | Gold | Panel Mount | Ground | A | IP68 - Dust Tight Waterproof | Brass | Chrome over Nickel | 0 | Bulkhead - Rear Side Nut | Push-Pull | 10 | 4 A | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Metal | Shielded | Industrial Medical Military Testing Equipment & Measurement | Brass | |
120 °C | -40 C | Silver | Gold | Panel Mount | Ground | A | IP68 - Dust Tight Waterproof | Brass | Chrome over Nickel | 0 | Bulkhead - Rear Side Nut | Push-Pull | 2 | 7.5 A | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Metal | Shielded | Industrial Medical Military Testing Equipment & Measurement | Brass | |
120 °C | -40 C | Silver | Gold | Panel Mount | Ground | A | IP68 - Dust Tight Waterproof | Brass | Chrome over Nickel | 0 | Bulkhead - Rear Side Nut | Push-Pull | 4 | 7.5 A | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Metal | Shielded | Industrial Medical Military Testing Equipment & Measurement | Brass |
