1337439 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

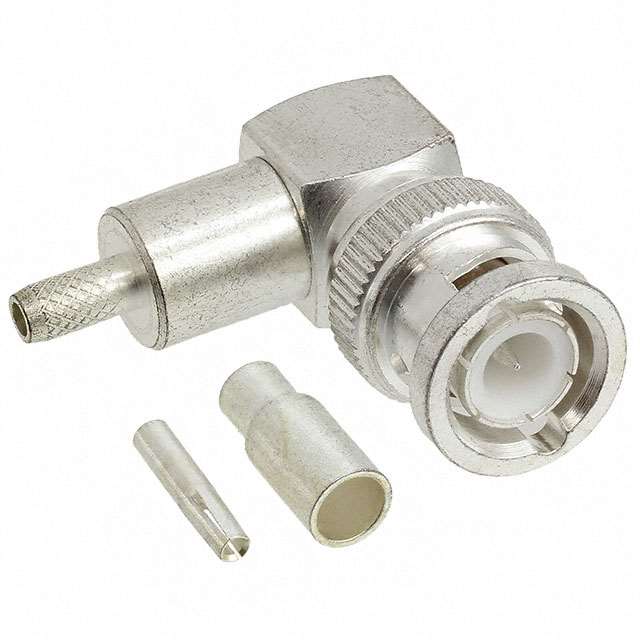

CONN BNC PLUG R/A 50 OHM SOLDER
| Part | Includes | Center Contact Plating | Body Finish | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Body Material | Voltage Rating | Mating Cycles | Contact Termination | Connector Type | Impedance | Center Contact Material | Housing Color | Number of Ports | Frequency - Max [Max] | Shield Termination | Fastening Type | Mounting Type | Cable Group | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1 Connector 1 Contact 1 Ferrule | Silver | Silver | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 0.3 dB | Brass | 500 V | 500 | Solder | Plug Male Pin | 50 Ohms | Brass | Silver | 1 | 4 GHz | Crimp | Bayonet Lock | Free Hanging (In-Line) Right Angle | 188A 316 RG-174A | BNC |
