CS11029 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Switch Travel	Actuator Material	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Switch Function	Circuit	Actuator Orientation	Operating Force	Contact Rating @ Voltage	Illumination	Mounting Type	Actuator Height off PCB, Vertical [z]	Outline [x]	Outline [y]

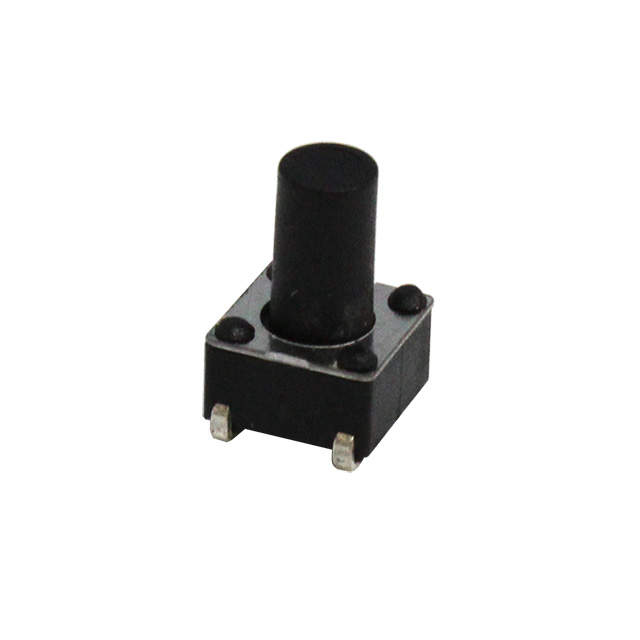

CIT Relay and Switch CS11029.5F160J	0.25 mm	Polyamide (PA46) Nylon 4/6	J Lead	85 °C	-40 C	Plunger for Cap	Off-Mom	SPST-NO	Top Actuated	160 gf	0.05 A 50 VDC	Non-Illuminated	Surface Mount	9.5 mm	6 mm	6 mm
CIT Relay and Switch CS11029.5F100J	0.25 mm	Polyamide (PA46) Nylon 4/6	J Lead	85 °C	-40 C	Plunger for Cap	Off-Mom	SPST-NO	Top Actuated	100 gf	0.05 A 50 VDC	Non-Illuminated	Surface Mount	9.5 mm	6 mm	6 mm
CIT Relay and Switch CS11029.5F260J	0.25 mm	Polyamide (PA46) Nylon 4/6	J Lead	85 °C	-40 C	Plunger for Cap	Off-Mom	SPST-NO	Top Actuated	260 gf	0.05 A 50 VDC	Non-Illuminated	Surface Mount	9.5 mm	6 mm	6 mm

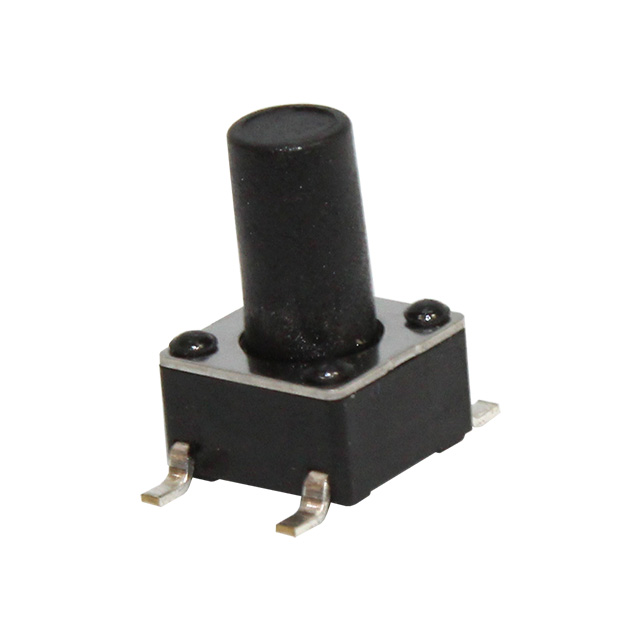

CIT Relay and Switch CS11029.5F100	0.25 mm	Polyamide (PA46) Nylon 4/6	Gull Wing	85 °C	-40 C	Plunger for Cap	Off-Mom	SPST-NO	Top Actuated	100 gf	0.05 A 50 VDC	Non-Illuminated	Surface Mount	9.5 mm	6 mm	6 mm
CIT Relay and Switch CS11029.5F260	0.25 mm	Polyamide (PA46) Nylon 4/6	Gull Wing	85 °C	-40 C	Plunger for Cap	Off-Mom	SPST-NO	Top Actuated	260 gf	0.05 A 50 VDC	Non-Illuminated	Surface Mount	9.5 mm	6 mm	6 mm
