046556 Series

Manufacturer: Molex

Catalog

SEARAY SLIM PLUG ASSY 04X20 2.9

Part	Features	Connector Type	Contact Finish	Height Above Board	Height Above Board	Mated Stacking Heights	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Pitch [x]	Pitch [x]	Mated Stacking Heights [z]
Molex 0465562245

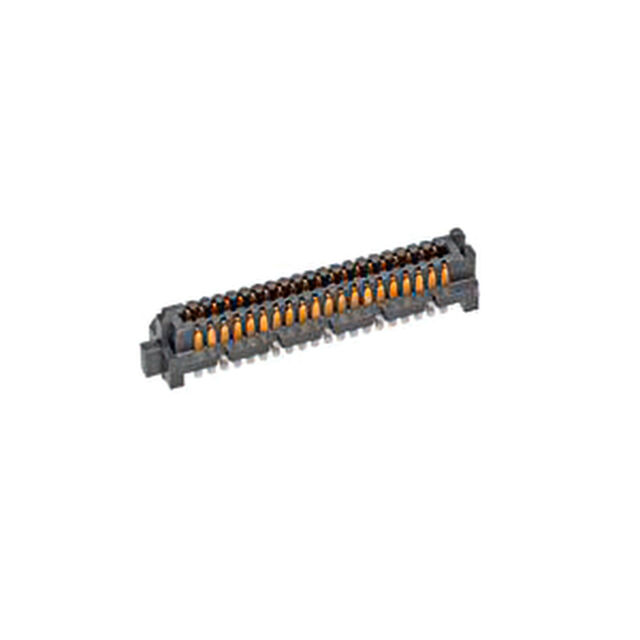

Molex 0465562345	Board Guide	High Density Array Male	Gold	0.28 in	7.1 mm	8.5 mm 9.5 mm 10 mm 11 mm 11.5 mm	80	0.76 Ám	30 Áin	Surface Mount	0.05 in	1.27 mm
Molex 0465566145	Board Guide Pick and Place	High Density Array Male	Gold	0.221 "	5.61 mm	7 mm 8 mm 8.5 mm 9.5 mm 10 mm	60	0.76 Ám	30 Áin	Surface Mount	0.05 in	1.27 mm
Molex 0465562347	Board Guide	High Density Array Male	Gold	0.28 in	7.1 mm	8.5 mm 9.5 mm 10 mm 11 mm 11.5 mm	80	0.76 Ám	30 Áin	Surface Mount	0.05 in	1.27 mm
Molex 0465562547	Board Guide	High Density Array Male	Gold	0.319 in	8.1 mm	9.5 mm 10.5 mm 11 mm 12 mm 12.5 mm	80	0.76 Ám	30 Áin	Surface Mount	0.05 in	1.27 mm

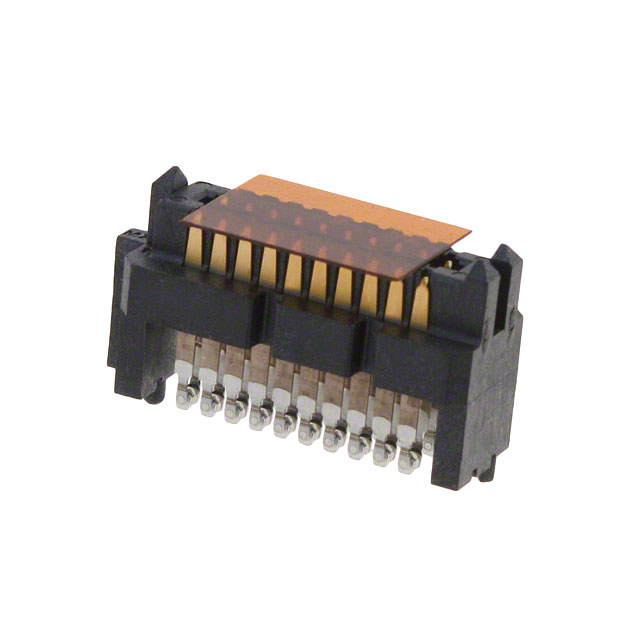

Molex 0465561745	Board Guide	High Density Array Male	Gold	0.421 in	10.7 mm	12 mm 13 mm 13.5 mm 14.5 mm 15 mm	40	0.76 Ám	30 Áin	Surface Mount	0.05 in	1.27 mm

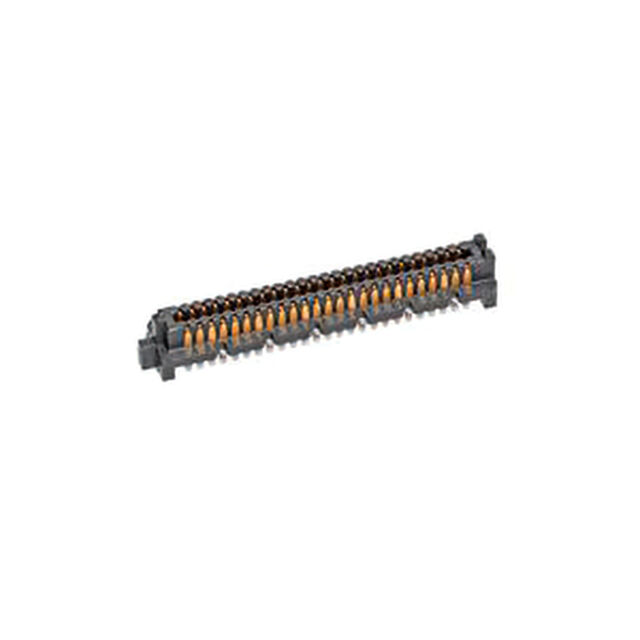

Molex 0465567345	Board Guide	High Density Array Male	Gold	0.26 "	6.6 mm		100	0.76 Ám	30 Áin	Surface Mount	0.05 in	1.27 mm	8 mm 9 mm 9.5 mm 10.5 mm 11 mm

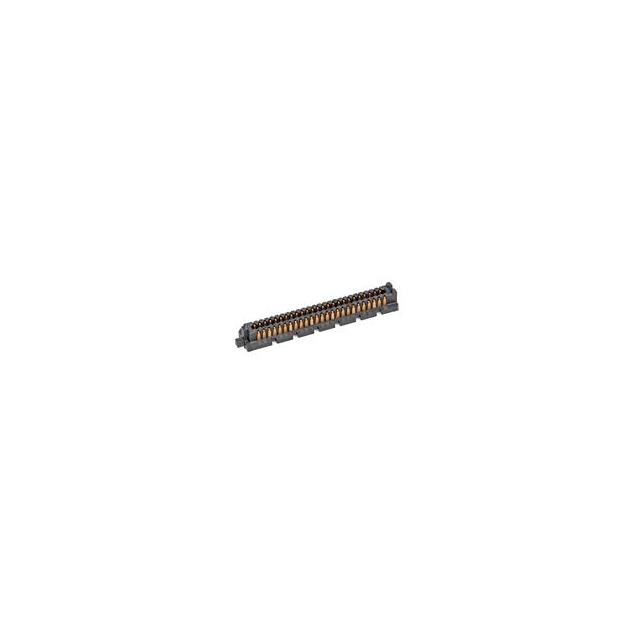

Molex 0465567145	Board Guide	High Density Array Male	Gold	0.221 "	5.61 mm	7 mm 8 mm 8.5 mm 9.5 mm 10 mm	100	0.76 Ám	30 Áin	Surface Mount	0.05 in	1.27 mm
Molex 0465567245	Board Guide	High Density Array Male	Gold	0.26 "	6.6 mm		100	0.76 Ám	30 Áin	Surface Mount	0.05 in	1.27 mm	8 mm 9 mm 9.5 mm 10.5 mm 11 mm

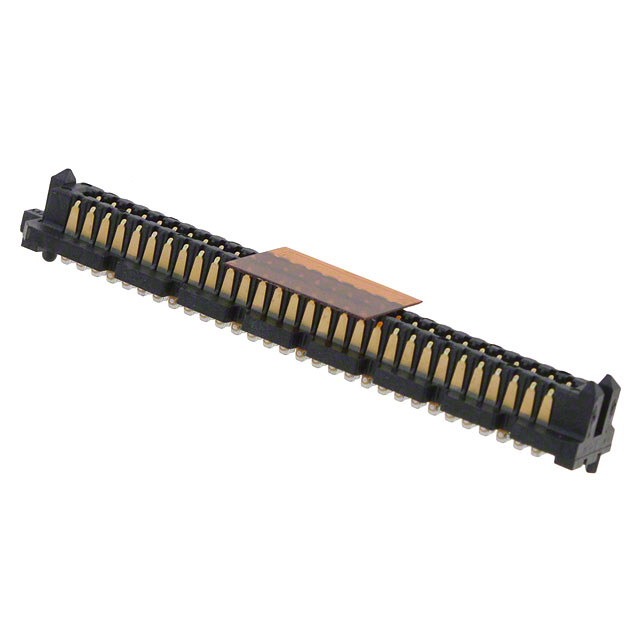

Molex 0465563145	Board Guide	High Density Array Male	Gold	0.221 "	5.61 mm	7 mm 8 mm 8.5 mm 9.5 mm 10 mm	120	0.76 Ám	30 Áin	Surface Mount	0.05 in	1.27 mm
