85603CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

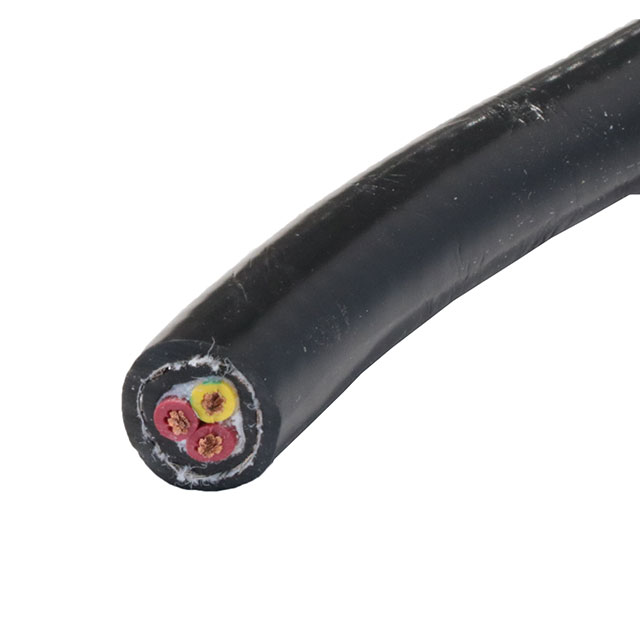

CABLE 3COND 16AWG BLK SHLD 100'
| Part | Ratings | Shield Type | Number of Conductors | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] | Cable Type | Conductor Material | Voltage | Jacket Color | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | UL Style 2587 | Braid | 3 | 85 % | 10.64 mm | 0.419 in | Poly-Vinyl Chloride (PVC) | 0.889 mm | 0.035 in | 30.5 m | 100 ft | Multi-Conductor | Copper Bare | 600 V | Black | Copper Tinned | 105 | 38 AWG | 16 AWG | Poly-Vinyl Chloride (PVC) |
