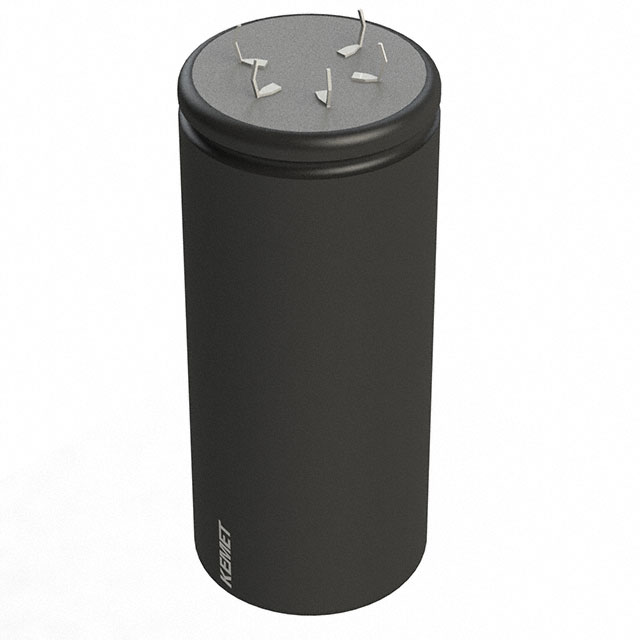

ALC80H Series

Manufacturer: KEMET

Catalog

CAP ALUM 8200UF 20% 200V SNAP TH

Part	Lifetime @ Temp.	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Mounting Type	Tolerance	Ripple Current @ High Frequency	Impedance	Polarization	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Capacitance
KEMET ALC80H822KP200	9000 Hrs	General Purpose	4.213 in	107 mm	Radial Can - Snap-In - 5 Lead	Through Hole	20 %	17.54 A	20 mOhms	Polar	11.15 A	-40 C	105 ░C	25 mm	0.984 in	31 mOhm	50 mm	1.969 in	200 VDC
KEMET ALC80H242FP350	9000 Hrs	General Purpose	4.213 in	107 mm	Radial Can - Snap-In - 5 Lead	Through Hole	20 %	15.72 A	33 mOhms	Polar	7.19 A	-40 C	105 ░C	25 mm	0.984 in	61 mOhm	45 mm	1.772 "	350 V	2.4 mF
KEMET ALC80H152FP450	9000 Hrs	General Purpose	4.213 in	107 mm	Radial Can - Snap-In - 5 Lead	Through Hole	20 %	14.04 A	70 mOhms	Polar	6.25 A	-40 C	105 ░C	25 mm	0.984 in	109 mOhm	45 mm	1.772 "	450 V	1.5 mF
KEMET ALC80H432FP250	9000 Hrs	General Purpose	4.213 in	107 mm	Radial Can - Snap-In - 5 Lead	Through Hole	20 %	16.22 A	28 mOhms	Polar	8.89 A	-40 C	105 ░C	25 mm	0.984 in	44.85 mOhm	45 mm	1.772 "	250 V	4.3 mF
KEMET ALC80H272KP400	9000 Hrs	General Purpose	4.213 in	107 mm	Radial Can - Snap-In - 5 Lead	Through Hole	20 %	17.17 A	27 mOhms	Polar	8.32 A	-40 C	105 ░C	25 mm	0.984 in	50 mOhm	50 mm	1.969 in	400 V	2700 µF
KEMET ALC80H823FP040	9000 Hrs	General Purpose	4.213 in	107 mm	Radial Can - Snap-In - 5 Lead	Through Hole	20 %	20.56 A	9 mOhms	Polar	18.33 A	-40 C	105 ░C	25 mm	0.984 in	10 mOhm	45 mm	1.772 "	40 V	82000 µF
KEMET ALC80H222FP400	9000 Hrs	General Purpose	4.213 in	107 mm	Radial Can - Snap-In - 5 Lead	Through Hole	20 %	16.09 A	32 mOhms	Polar	7.24 A	-40 C	105 ░C	25 mm	0.984 in	60 mOhm	45 mm	1.772 "	400 V	2200 µF
KEMET ALC80H184FP025	9000 Hrs	General Purpose	4.213 in	107 mm	Radial Can - Snap-In - 5 Lead	Through Hole	20 %	20.45 A	9 mOhms	Polar	18.82 A	-40 C	105 ░C	25 mm	0.984 in	10 mOhm	45 mm	1.772 "	25 VDC	180000 µF
KEMET ALC80H244KP025	9000 Hrs	General Purpose	4.213 in	107 mm	Radial Can - Snap-In - 5 Lead	Through Hole	20 %	21.29 A	8 mOhms	Polar	20.06 A	-40 C	105 ░C	25 mm	0.984 in	9.038 mOhm	50 mm	1.969 in	25 VDC	240 mF
KEMET ALC80H682FP200	9000 Hrs	General Purpose	4.213 in	107 mm	Radial Can - Snap-In - 5 Lead	Through Hole	20 %	16.71 A	23 mOhms	Polar	9.99 A	-40 C	105 ░C	25 mm	0.984 in	36 mOhm	45 mm	1.772 "	200 VDC	6800 µF
