LM3658 Series

Catalog

KIT EVAL FOR LM3658SD

Part	Contents	Supplied Contents	Type	Function	Utilized IC / Part	Number of Cells	Supplier Device Package	Voltage - Supply (Max) [Max]	Battery Chemistry	Fault Protection	Charge Current - Max [Max]	Package / Case	Mounting Type	Battery Pack Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Current - Charging

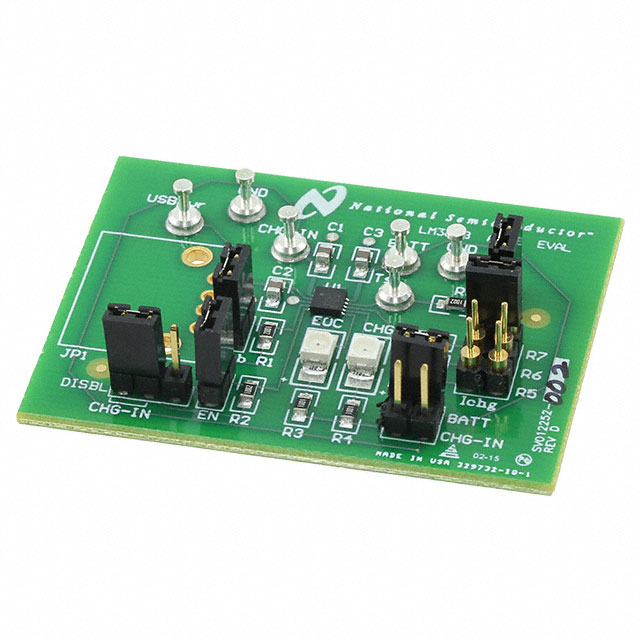

Texas Instruments LM3658SD-AEV/NOPB	Board(s)	Board(s)	Power Management	Battery Charger	LM3658
Texas Instruments LM3658SDX-B/NOPB						1	10-WSON (3x3)	6 V	Lithium Ion/Polymer	Over Current Over Temperature	1 A	10-WFDFN Exposed Pad	Surface Mount	4.2 V	85 °C	-40 °C	USB	Constant - Programmable
Texas Instruments LM3658SDEV/NOPB		Board(s)	Power Management	Battery Charger	LM3658SD
Texas Instruments LM3658SDX/NOPB						1	10-WSON (3x3)	6 V	Lithium Ion/Polymer	Over Current Over Temperature	1 A	10-WFDFN Exposed Pad	Surface Mount	4.2 V	85 °C	-40 °C	USB	Constant - Programmable
Texas Instruments LM3658SD-A/NOPB						1	10-WSON (3x3)	6 V	Lithium Ion/Polymer	Over Current Over Temperature	1 A	10-WFDFN Exposed Pad	Surface Mount	4.2 V	85 °C	-40 °C	USB	Constant - Programmable
Texas Instruments LM3658SD/NOPB						1	10-WSON (3x3)	6 V	Lithium Ion/Polymer	Over Current Over Temperature	1 A	10-WFDFN Exposed Pad	Surface Mount	4.2 V	85 °C	-40 °C	USB	Constant - Programmable
Texas Instruments LM3658SD-B						1	10-WSON (3x3)	6 V	Lithium Ion/Polymer	Over Current Over Temperature	1 A	10-WFDFN Exposed Pad	Surface Mount	4.2 V	85 °C	-40 °C	USB	Constant - Programmable
Texas Instruments LM3658SD-BEV		Board(s)	Power Management	Battery Charger	LM3658SD-B
Texas Instruments LM3658SDX-A/NOPB						1	10-WSON (3x3)	6 V	Lithium Ion/Polymer	Over Current Over Temperature	1 A	10-WFDFN Exposed Pad	Surface Mount	4.2 V	85 °C	-40 °C	USB	Constant - Programmable
Texas Instruments LM3658SDX-B						1	10-WSON (3x3)	6 V	Lithium Ion/Polymer	Over Current Over Temperature	1 A	10-WFDFN Exposed Pad	Surface Mount	4.2 V	85 °C	-40 °C	USB	Constant - Programmable
