TMP708-Q1 Series

Automotive grade, ±3°C temperature switch with pin selectable 10°C and 30°C hy

Catalog

Automotive grade, ±3°C temperature switch with pin selectable 10°C and 30°C hy

Part	Supplier Device Package	Accuracy	Output	Output Type	Current - Output (Max) [Max]	Mounting Type	Package / Case	Features	Grade	Qualification	Current - Supply	Voltage - Supply [Min]	Voltage - Supply [Max]	Trip Temperature Threshold	Switching Temperature	Operating Temperature [Max]	Operating Temperature [Min]	Output Function	Sensing Range [Min]	Sensing Range [Max]	Sensor Type	Interface	Utilized IC / Part	Sensitivity	Supplied Contents
Texas Instruments TMP708AQDBVRQ1	SOT-23-5	3 °C	Active Low	Open Drain	20 mA	Surface Mount	SC-74A SOT-753	Selectable Trip Point	Automotive	AEC-Q100	40 µA	2.7 V	5.5 V	Hot	Programmable	125 °C	-40 °C	/OverTemp
Texas Instruments TMP708AIDBVR	SOT-23-5	3 °C	Active Low	Open Drain	20 mA	Surface Mount	SC-74A SOT-753	Selectable Trip Point			40 µA	2.7 V	5.5 V	Hot	Programmable	125 °C	-40 °C	/OverTemp

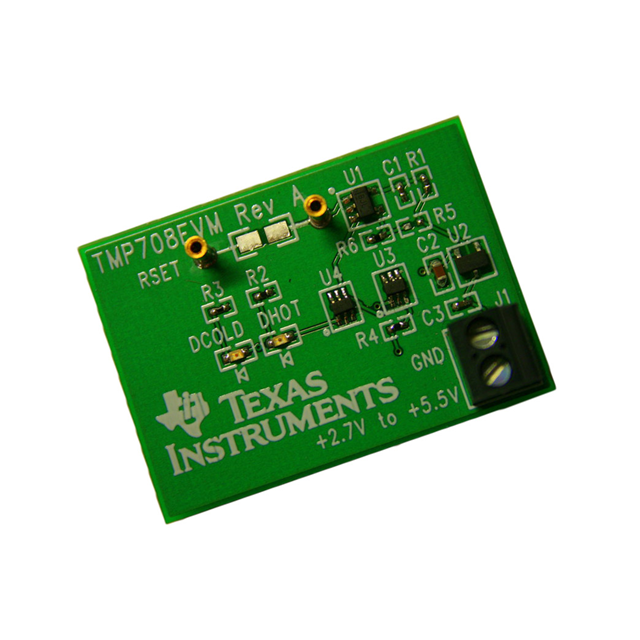

Texas Instruments TMP708EVM												2.7 V	5.5 V						0 °C	125 °C	Thermostat	Analog	TMP708	3 °C	Board(s)
Texas Instruments TMP708AIDBVT	SOT-23-5	3 °C	Active Low	Open Drain	20 mA	Surface Mount	SC-74A SOT-753	Selectable Trip Point			40 µA	2.7 V	5.5 V	Hot	Programmable	125 °C	-40 °C	/OverTemp

Catalog

Automotive grade, ±3°C temperature switch with pin selectable 10°C and 30°C hy

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level 3ADevice CDM ESD Classification Level C6Threshold Accuracy:±0.5°C Typical±3.5°C Maximum (60°C to 100°C)Temperature Threshold Set By 1% External ResistorLow Quiescent Current: 40 µA, TypicalOpen-Drain, Active-Low Output StagePin-Selectable 10°C or 30°C HysteresisReset Operation Specified at VCC= 0.8 VSupply Range: 2.7 V to 5.5 VPackage: 5-Pin SOT-23Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level 3ADevice CDM ESD Classification Level C6Threshold Accuracy:±0.5°C Typical±3.5°C Maximum (60°C to 100°C)Temperature Threshold Set By 1% External ResistorLow Quiescent Current: 40 µA, TypicalOpen-Drain, Active-Low Output StagePin-Selectable 10°C or 30°C HysteresisReset Operation Specified at VCC= 0.8 VSupply Range: 2.7 V to 5.5 VPackage: 5-Pin SOT-23

Description

The TMP708-Q1 is a fully-integrated, resistor- programmable temperature switch with a temperature threshold that is set by just one external resistor within the entire operating range. The TMP708-Q1 provides an open-drain, active-low output and has a 2.7-V to 5.5-V supply voltage range. The temperature threshold accuracy is typically ±0.5°C with a maximum of ±3.5 °C (60°C to 100°C). The quiescent current consumption is typically 40 µA. Hysteresis is pin-selectable to 10°C or 30°C. The TMP708-Q1 is available in a 5-pin SOT-23 package. The TMP708-Q1 is a fully-integrated, resistor- programmable temperature switch with a temperature threshold that is set by just one external resistor within the entire operating range. The TMP708-Q1 provides an open-drain, active-low output and has a 2.7-V to 5.5-V supply voltage range. The temperature threshold accuracy is typically ±0.5°C with a maximum of ±3.5 °C (60°C to 100°C). The quiescent current consumption is typically 40 µA. Hysteresis is pin-selectable to 10°C or 30°C. The TMP708-Q1 is available in a 5-pin SOT-23 package.
