12TS9 Series

Catalog

SWITCH TOGGLE DPDT 15A 125V

Part	Actuator Material	Mounting Type	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Illumination	Termination Style	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Bushing Thread	Voltage Rating - AC	Circuit	Actuator Type	Features
Honeywell Sensing and Productivity Solutions 12TS95127-3	Nickel Plated	Panel Mount	15 A	12.4 mm	16.51 mm	Non-Illuminated	Quick Connect - 0.250" (6.3mm)	On-On	71 °C	-54 °C	15/32-32	125 V	DPDT	Standard Round

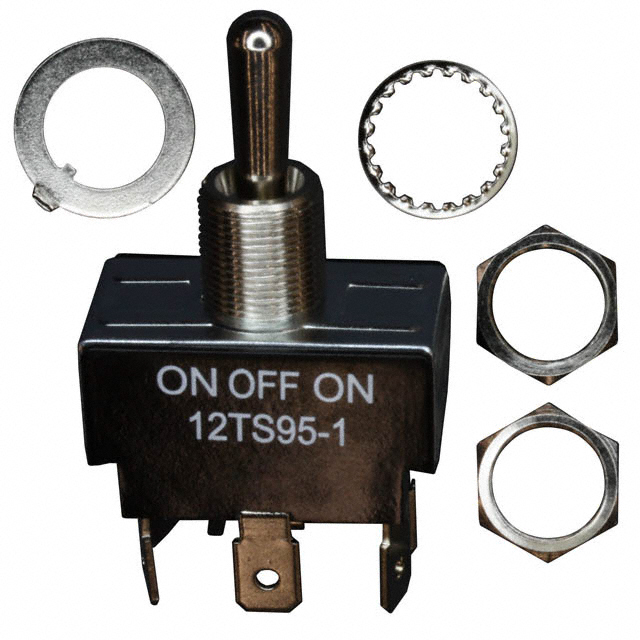

Honeywell Sensing and Productivity Solutions 12TS95-1	Nickel Plated	Panel Mount	20 A	12.4 mm	16.51 mm	Non-Illuminated	Quick Connect - 0.250" (6.3mm)	On-Off-On	71 °C	-54 °C	15/32-32	125 V	DPDT	Standard Round
Honeywell Sensing and Productivity Solutions 12TS95-5	Nickel Plated	Panel Mount	20 A	12.4 mm	16.51 mm	Non-Illuminated	Quick Connect - 0.250" (6.3mm)	On-Off-Mom	71 °C	-54 °C	15/32-32	125 V	DPDT	Standard Round

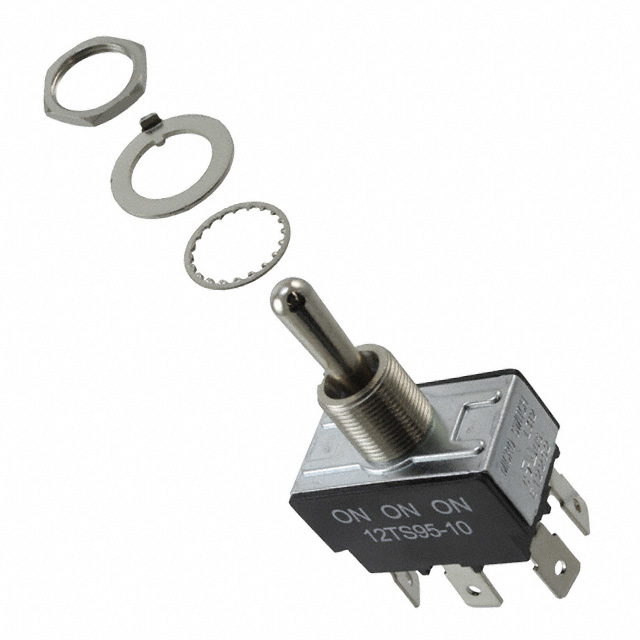

Honeywell Sensing and Productivity Solutions 12TS95-10	Nickel Plated	Panel Mount	20 A	12.4 mm	16.51 mm	Non-Illuminated	Quick Connect - 0.250" (6.3mm)	On-On-On	71 °C	-54 °C	15/32-32	125 V	SP3T	Standard Round	Jumper needed to achieve triple throw

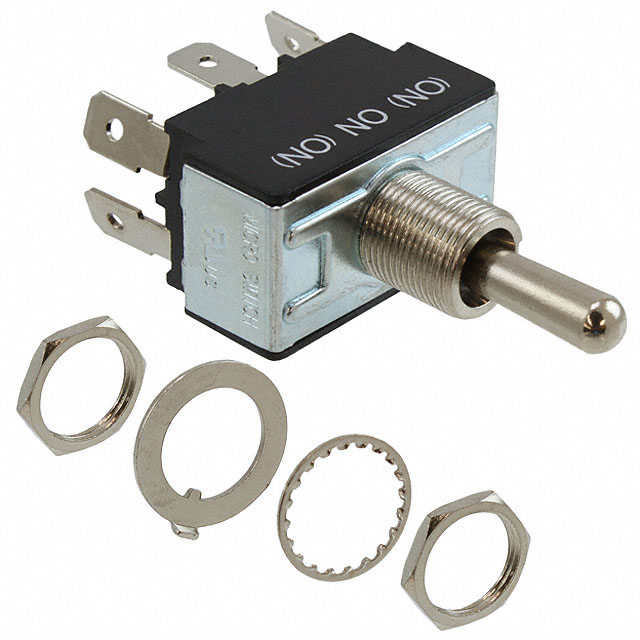

Honeywell Sensing and Productivity Solutions 12TS95127-7	Nickel Plated	Panel Mount	10 A	12.4 mm	16.51 mm	Non-Illuminated	Quick Connect - 0.250" (6.3mm)	Mom-Off-Mom	71 °C	-54 °C	15/32-32	125 V	DPDT	Standard Round
Honeywell Sensing and Productivity Solutions 12TS95-70	Nickel Plated	Panel Mount	20 A	12.4 mm	16.51 mm	Non-Illuminated	Quick Connect - 0.250" (6.3mm)	Mom-On-Mom	71 °C	-54 °C	15/32-32	125 V	DPDT	Standard Round
