0900-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

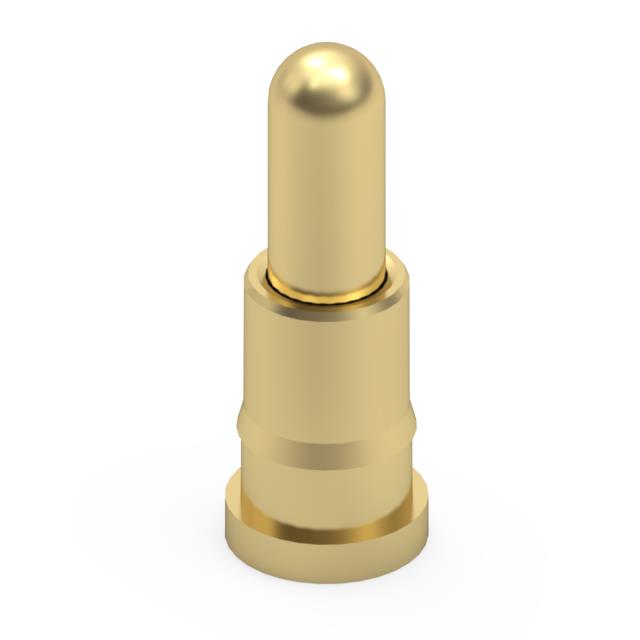

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Recommended Working Height | Recommended Working Height | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Plunger Size [diameter] | Plunger Size [diameter] | Contact Type | Contact Material | Contact Finish | Pad Layout Dimension | Pad Layout Dimension | Minimum Working Height [Min] | Minimum Working Height [Min] | Mounting Type | Operating Force - Mid Compression | Operating Force - Initial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1000000 | 4.3 mm | 0.169 in | 5 mm | 0.197 in | 20 µin | 0.51 µm | 2 A | 0.042 in | 1.07 mm | Sleeve & Plunger (Pogo Pins) | Copper Alloy | Gold | 0.072 in | 1.83 mm | 0.142 in | 3.6 mm | Surface Mount | ||
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1000000 | 4.3 mm | 0.169 in | 5 mm | 0.197 in | 20 µin | 0.51 µm | 5.2 A | 0.042 in | 1.07 mm | Sleeve & Plunger (Pogo Pins) | Brass Alloy | Gold | 0.072 in | 1.83 mm | 0.142 in | 3.6 mm | Surface Mount | 60 gf | 10 gf |
