MAX1709 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC REG BOOST ADJ 7.5A 16SOIC

Part	Supplier Device Package	Frequency - Switching [Max]	Frequency - Switching [Min]	Package / Case	Package / Case [x]	Package / Case [y]	Voltage - Input (Min) [Min]	Output Type	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Output (Min/Fixed)	Voltage - Output (Min/Fixed)	Voltage - Output (Min/Fixed)	Output Configuration	Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Max) [Max]	Number of Outputs	Topology	Package / Case [custom]	Frequency - Switching	Outputs and Type	Outputs and Type	Regulator Topology	Board Type	Supplied Contents	Voltage - Output	Current - Output	Main Purpose
Analog Devices Inc./Maxim Integrated MAX1709ESE	16-SOIC	1 MHz	350 kHz	16-SOIC	0.154 in	3.9 mm	0.7 V	Adjustable (Programmable)	5 V	Surface Mount	2.5 V	3.3 V	5 V	Positive	Step-Up	85 °C	-40 °C	5.5 V	1	Boost
Analog Devices Inc./Maxim Integrated MAX1709EUI+	28-TSSOP-EP	1 MHz	350 kHz	28-TSSOP Exposed Pad	0.173 in		0.7 V	Adjustable (Programmable)	5 V	Surface Mount	2.5 V	3.3 V	5 V	Positive	Step-Up	85 °C	-40 °C	5.5 V	1	Boost	4.4 mm
Analog Devices Inc./Maxim Integrated MAX1709EUI+T	28-TSSOP-EP	1 MHz	350 kHz	28-TSSOP Exposed Pad	0.173 in		0.7 V	Adjustable (Programmable)	5 V	Surface Mount	2.5 V	3.3 V	5 V	Positive	Step-Up	85 °C	-40 °C	5.5 V	1	Boost	4.4 mm

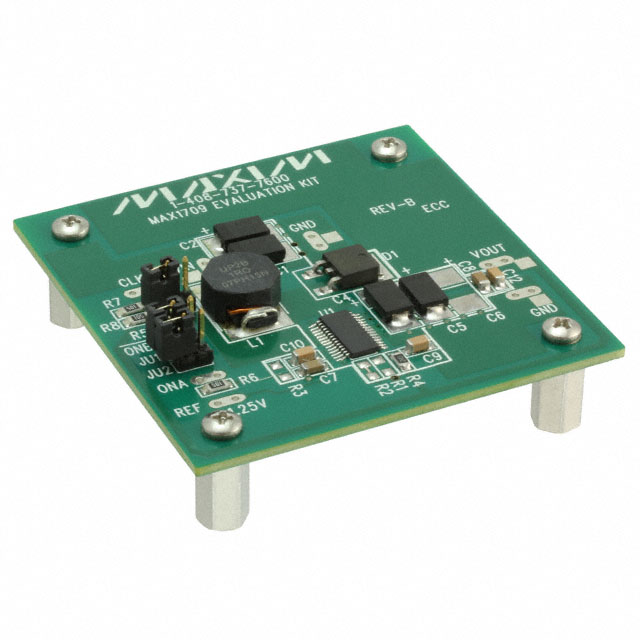

Analog Devices Inc./Maxim Integrated MAX1709EVKIT																						600 kHz	Non-Isolated	1	Boost	Fully Populated	Board(s)	3.3 V 5 V	4 A	DC/DC Step Up
Analog Devices Inc./Maxim Integrated MAX1709ESE+	16-SOIC	1 MHz	350 kHz	16-SOIC	0.154 in	3.9 mm	0.7 V	Adjustable (Programmable)	5 V	Surface Mount	2.5 V	3.3 V	5 V	Positive	Step-Up	85 °C	-40 °C	5.5 V	1	Boost
