78055 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

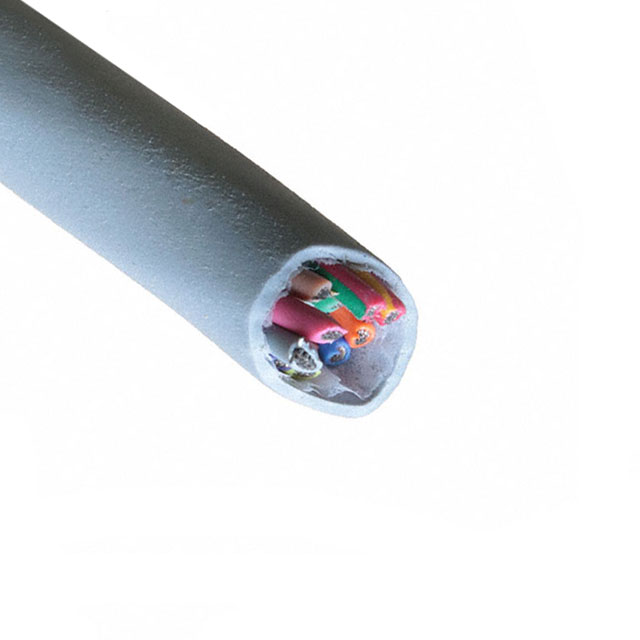

CABLE 15COND 20AWG SLATE
| Part | Number of Conductors | Length | Length | Jacket (Insulation) Material | Features | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Voltage | Conductor Insulation | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE | 15 | 1000 ft | 304.8 m | Polyphenylene Ether Modified (mPPE) | Biological Compatibility Rip Cord | -40 °C | 80 C | Multi-Conductor | 300 V | Polyphenylene Ether Modified (mPPE) | Slate | 7.16 mm | 0.282 in | 20 AWG | Copper Tinned | 19 | 32 AWG | ISO 10993 UL Style 21460 | 0.015 in | 0.381 mm | ||
 ALPHA WIRE | 15 | Polyphenylene Ether Modified (mPPE) | Biological Compatibility Rip Cord | -40 °C | 80 C | Multi-Conductor | 300 V | Polyphenylene Ether Modified (mPPE) | Slate | 7.16 mm | 0.282 in | 20 AWG | Copper Tinned | 19 | 32 AWG | ISO 10993 UL Style 21460 | 0.015 in | 0.381 mm | 30.5 m | 100 ft |
