M50-313 Series

Catalog

CONN, RCPT, 3POS, 1ROW, 1.27MM ROHS COMPLIANT: YES

Part	Contact Material	Insulation Material	Contact Shape	Applications	Mated Stacking Heights	Voltage Rating	Material Flammability Rating	Termination	Mounting Type	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Connector Type	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Contact Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Finish - Mating	Number of Positions	Features

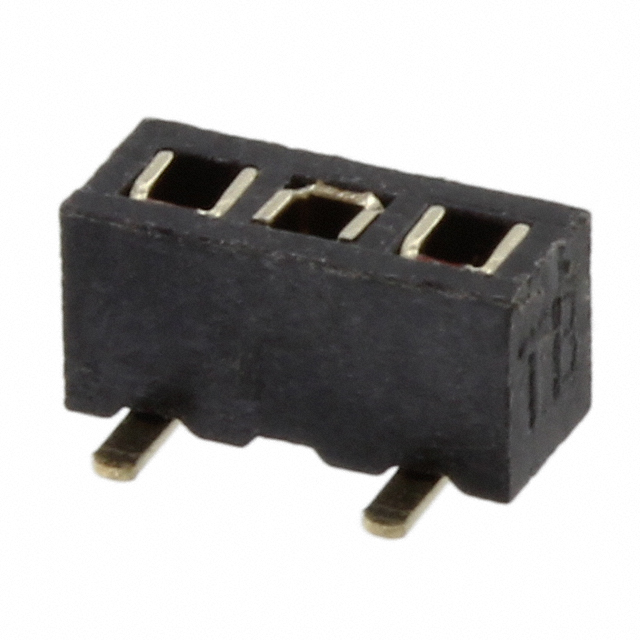

Harwin Inc. M50-3130345	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Medical Telecommunications	3.1 mm 3.6 mm 3.8 mm	500 VAC	UL94 V-0	Solder	Surface Mount	Black	12 Áin	0.3 Ám	-40 C	105 ░C	1	Receptacle Bottom or Top Entry	2 mm	0.079 in	All	Female Socket	Gold	1.27 mm	0.05 in	Push-Pull	Gold

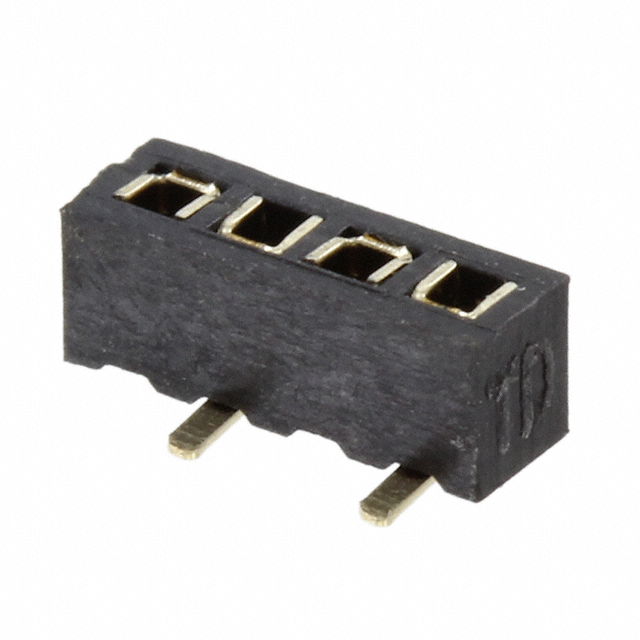

Harwin Inc. M50-3130445	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Medical Telecommunications	3.1 mm 3.6 mm 3.8 mm	500 VAC	UL94 V-0	Solder	Surface Mount	Black	12 Áin	0.3 Ám	-40 C	105 ░C	1	Receptacle Bottom or Top Entry	2 mm	0.079 in	All	Female Socket	Gold	1.27 mm	0.05 in	Push-Pull	Gold	4

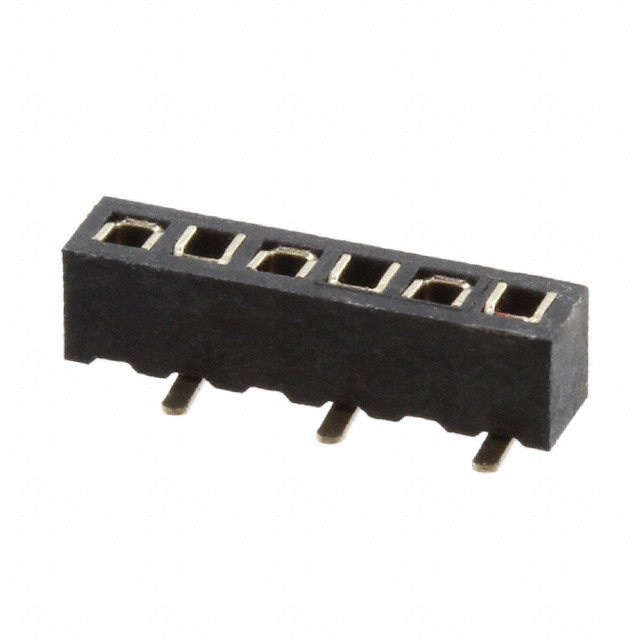

Harwin Inc. M50-3130645	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Medical Telecommunications	3.1 mm 3.6 mm 3.8 mm	500 VAC	UL94 V-0	Solder	Surface Mount	Black	12 Áin	0.3 Ám	-40 C	105 ░C	1	Receptacle Bottom or Top Entry	2 mm	0.079 in	All	Female Socket	Gold	1.27 mm	0.05 in	Push-Pull	Gold	6
Harwin Inc. M50-3130545	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Medical Telecommunications	3.1 mm 3.6 mm 3.8 mm	500 VAC	UL94 V-0	Solder	Surface Mount	Black	12 Áin	0.3 Ám	-40 C	105 ░C	1	Receptacle Bottom or Top Entry	2 mm	0.079 in	All	Female Socket	Gold	1.27 mm	0.05 in	Push-Pull	Gold	5
Harwin Inc. M50-3130345R	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Medical Telecommunications	3.1 mm 3.6 mm 3.8 mm	500 VAC	UL94 V-0	Solder	Surface Mount	Black	12 Áin	0.3 Ám	-40 C	105 ░C	1	Receptacle Bottom or Top Entry	2 mm	0.079 in	All	Female Socket	Gold	1.27 mm	0.05 in	Push-Pull	Gold		Pick and Place

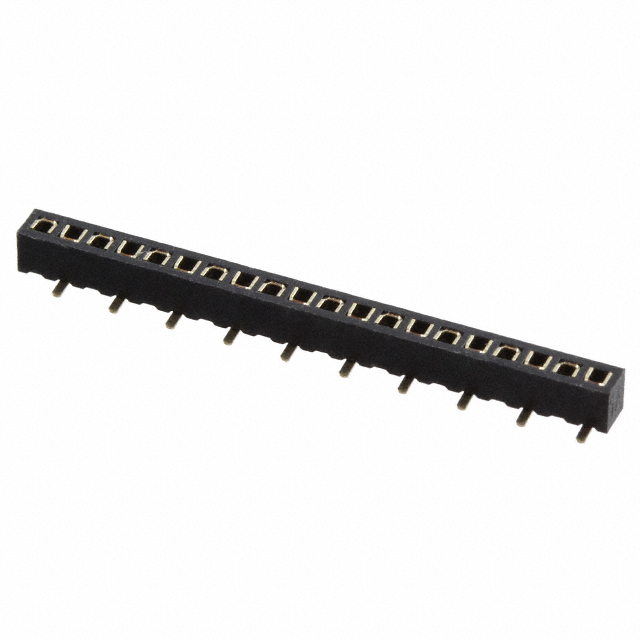

Harwin Inc. M50-3132045	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Medical Telecommunications	3.1 mm 3.6 mm 3.8 mm	500 VAC	UL94 V-0	Solder	Surface Mount	Black	12 Áin	0.3 Ám	-40 C	105 ░C	1	Receptacle Bottom or Top Entry	2 mm	0.079 in	All	Female Socket	Gold	1.27 mm	0.05 in	Push-Pull	Gold	20
