PRG.M0 Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 6P GOLD SLDR CUP

Part	Cable Opening [custom]	Cable Opening [custom]	Ingress Protection	Contact Finish - Mating	Insert Material	Current Rating (Amps)	Backshell Material, Plating	Connector Type	Number of Positions	Fastening Type	Primary Material	Shielding	Color	Shell Size - Insert	Shell Material	Orientation	Features	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
LEMO PRG.M0.6GL.LC65G	0.209 in 0.256 in	5.3 mm 6.5 mm	IP50	Gold	Polyetheretherketone (PEEK)	6 A	Polysulfone (PSU)	Receptacle Female Sockets	6	Detent Lock Push-Pull	Plastic	Unshielded	Gray	M06	Polysulfone (PSU)	G	Backshell	Automotive Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Free Hanging (In-Line)

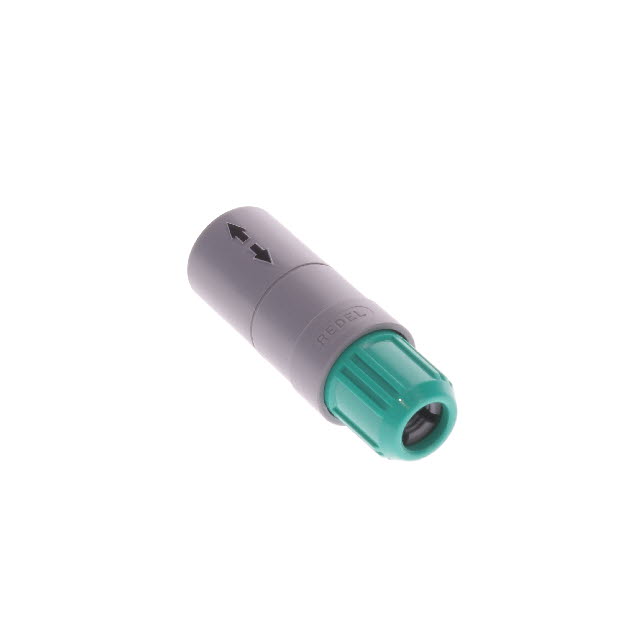

LEMO PRG.M0.2GL.LC52V			IP50	Gold	Polyetheretherketone (PEEK)	10 A	Polysulfone (PSU)	Receptacle Female Sockets	2	Detent Lock Push-Pull	Plastic	Unshielded	Gray Green	M02	Polysulfone (PSU)	G	Backshell	Automotive Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Free Hanging (In-Line)	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PRG.M0.4GL.LC39GZ			IP50	Gold	Polyetheretherketone (PEEK)	8 A	Polysulfone (PSU)	Receptacle Female Sockets	4	Detent Lock Push-Pull	Plastic	Unshielded	Gray	M04	Polysulfone (PSU)	G	Backshell	Automotive Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Free Hanging (In-Line)					2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PRG.M0.2GL.LC52GZ			IP50	Gold	Polyetheretherketone (PEEK)	10 A	Polysulfone (PSU)	Receptacle Female Sockets	2	Detent Lock Push-Pull	Plastic	Unshielded	Gray	M02	Polysulfone (PSU)	G	Backshell	Automotive Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Free Hanging (In-Line)	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PRG.M0.4GL.LC52A			IP50	Gold	Polyetheretherketone (PEEK)	8 A	Polysulfone (PSU)	Receptacle Female Sockets	4	Detent Lock Push-Pull	Plastic	Unshielded	Blue Gray	M04	Polysulfone (PSU)	G	Backshell	Automotive Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Free Hanging (In-Line)	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PRG.M0.6NL.LC65NZ	0.209 in 0.256 in	5.3 mm 6.5 mm	IP50	Gold	Polyetheretherketone (PEEK)	6 A	Polysulfone (PSU)	Receptacle Female Sockets	6	Detent Lock Push-Pull	Plastic	Unshielded	Black	M06	Polysulfone (PSU)	G	Backshell	Automotive Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Free Hanging (In-Line)
LEMO PRG.M0.6NL.LC52Z			IP50	Gold	Polyetheretherketone (PEEK)	6 A	Polysulfone (PSU)	Receptacle Female Sockets	6	Detent Lock Push-Pull	Plastic	Unshielded	Black	M06	Polysulfone (PSU)	G	Backshell	Automotive Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Free Hanging (In-Line)	0.157 in	0.205 in	4 mm	5.2 mm

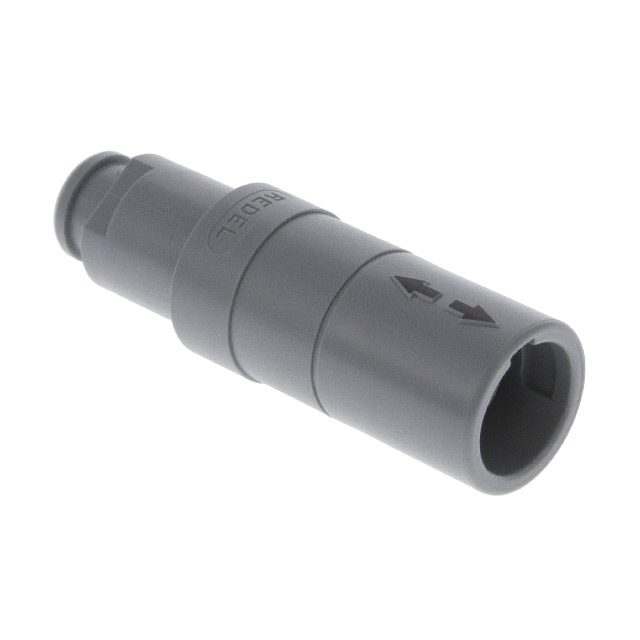

LEMO PRG.M0.6GL.LC52GZ			IP50	Gold	Polyetheretherketone (PEEK)	6 A	Polysulfone (PSU)	Receptacle Female Sockets	6	Detent Lock Push-Pull	Plastic	Unshielded	Gray	M06	Polysulfone (PSU)	G	Backshell	Automotive Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Free Hanging (In-Line)	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PRG.M0.7NL.LC39Z			IP50	Gold	Polyetheretherketone (PEEK)	5 A	Polysulfone (PSU)	Receptacle Female Sockets	7	Detent Lock Push-Pull	Plastic	Unshielded	Black		Polysulfone (PSU)	G	Backshell	Automotive Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Free Hanging (In-Line)					2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PRG.M0.4GL.LC39R			IP50	Gold	Polyetheretherketone (PEEK)	8 A	Polysulfone (PSU)	Receptacle Female Sockets	4	Detent Lock Push-Pull	Plastic	Unshielded	Gray Red	M04	Polysulfone (PSU)	G	Backshell	Automotive Industrial Medical Testing Equipment & Measurement	150 °C	-50 °C	Free Hanging (In-Line)					2.7 mm	0.154 in	3.9 mm	0.106 in
