208LS Series

Catalog

LIMIT SWITCH, WOBBLE ROD, SPDT-1NO, SPDT-NC, 10 A, 480 V, 5 OZF

Part	Operating Position	Operating Position	Switch Function	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage Rating - AC	Circuit	Termination Style	Voltage Rating - DC	Ingress Protection	Operating Force	Actuator Type	Pretravel	Pretravel

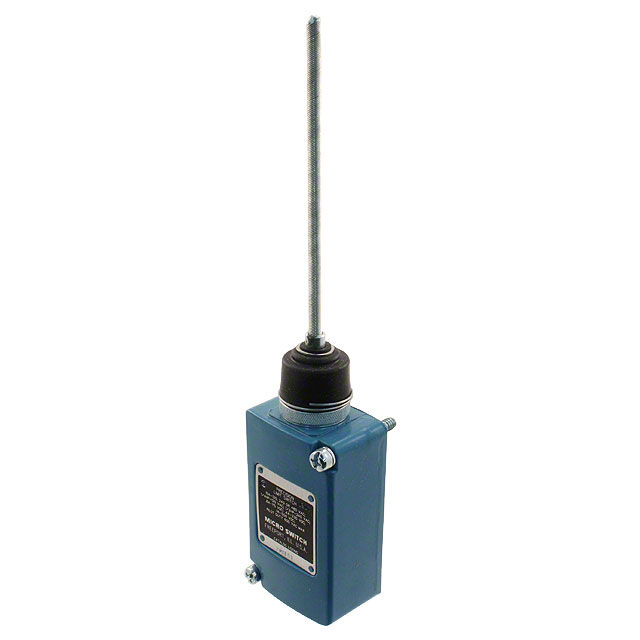

Honeywell Sensing and Productivity Solutions 208LS1	28.6 mm	1.125 in	On-Mom	10 A 800 mA	71 °C	-29 °C	Chassis Mount	120 V	SPDT (DB/DM)	Plug In	115 V	IP67 - Dust Tight Waterproof	141 gf	Flexible Cable	28.6 mm	1.125 in

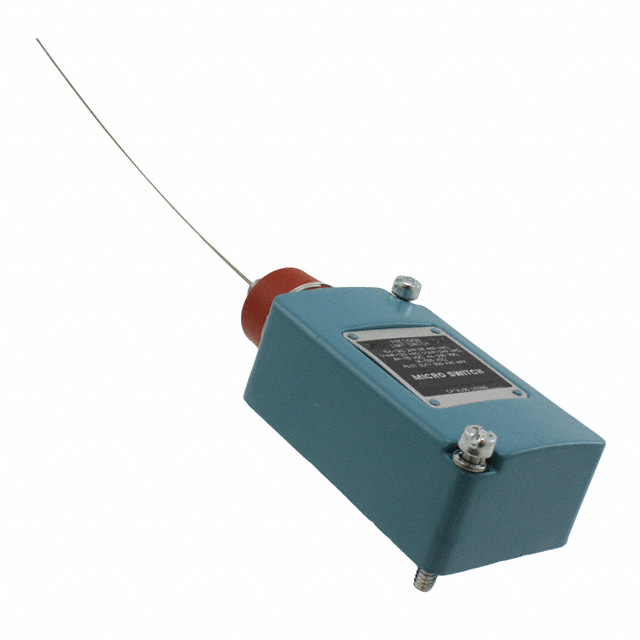

Honeywell Sensing and Productivity Solutions 208LS125	63.5 mm	2.5 in	On-Mom	10 A 800 mA	71 °C	-29 °C	Chassis Mount	120 V	SPDT (DB/DM)	Plug In	115 V	IP67 - Dust Tight Waterproof	28 gf	Wire Lever	63.5 mm	2.5 in

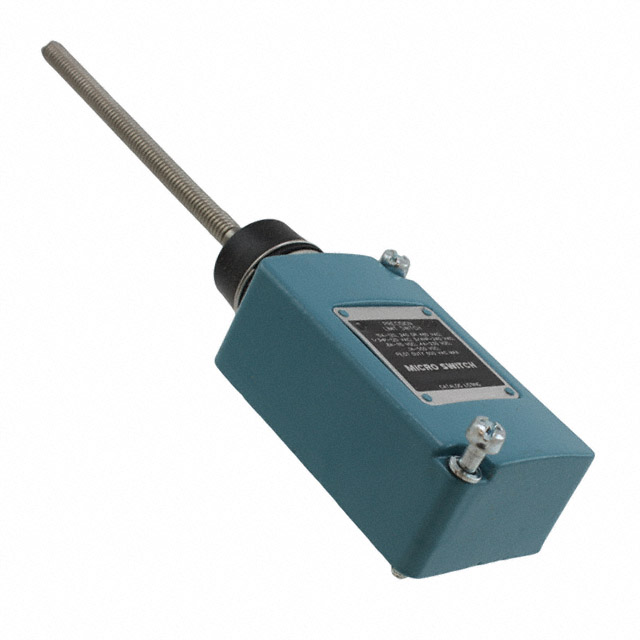

Honeywell Sensing and Productivity Solutions 208LS152	28.6 mm	1.125 in	On-Mom	10 A 800 mA	71 °C	-29 °C	Chassis Mount	120 V	SPDT (DB/DM)	Plug In	115 V	IP67 - Dust Tight Waterproof	141 gf	Coil Spring	28.6 mm	1.125 in
