204281 Series

Wi-Fi 6E Flex Cabled Side-Fed Balanced Antenna, 100.00mm Cable Length, Compatible with I-PEX MHF4 Connectors

Manufacturer: Molex

Catalog

Wi-Fi 6E Flex Cabled Side-Fed Balanced Antenna, 100.00mm Cable Length, Compatible with I-PEX MHF4 Connectors

Part	Frequency (Center/Band)	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Termination	RF Family/Standard	Return Loss	Number of Bands	Mounting Type	Power - Max [Max]	Applications	Antenna Type	Features	Features	Height (Max)	Height (Max) [Max]	Frequency Range [Max]	Frequency Range [Min]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Gain
Molex 2042811200	2.4 GHz 5 GHz	4 GHz	2 GHz	3 GHz	I-PEX MHF4L	WiFi	-10 dB	2	Adhesive	2 W	Wi-Fi	PCB Trace	Cable	200 mm	0.1 mm	0.004 in

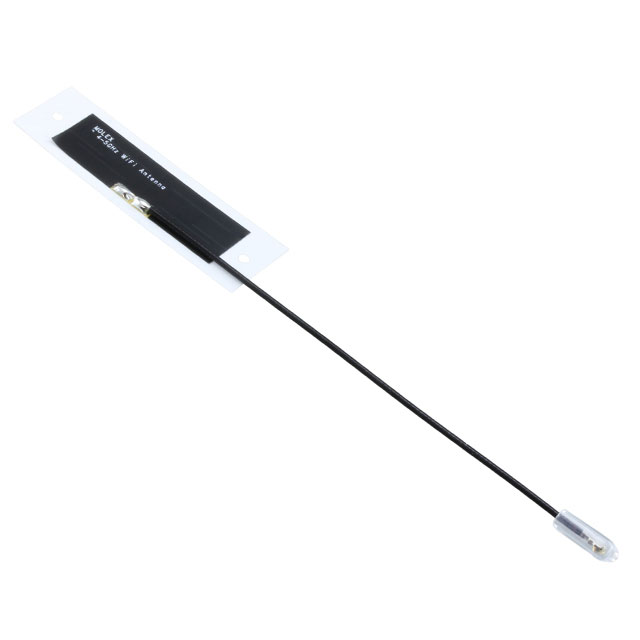

Molex 2042811100	2.4 GHz 5 GHz	4 GHz	2 GHz	3 GHz	I-PEX MHF4L	WiFi	-10 dB	2	Adhesive	2 W	Wi-Fi	PCB Trace	Cable	100 mm	0.1 mm	0.004 in
Molex 2042811150	2.4417 GHz 5.415 GHz	4 GHz	2 GHz	3 GHz	I-PEX MHF4L	802.15.4 WiFi	-10 dB	2	Adhesive		Wi-Fi Zigbee™	PCB Trace	Cable - 150mm		0.1 mm	0.004 in	5 GHz	2.4 GHz

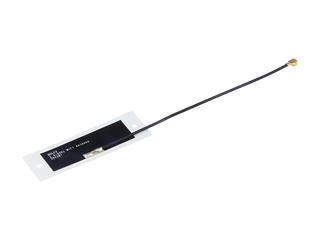

Molex 2042810100	2.4 GHz 5.5 GHz	4 GHz	2 GHz	3 GHz		WiFi	-10 dB	2	Adhesive		Wi-Fi	PCB Trace	Cable	100 mm			2.5 GHz 5.85 GHz	2.4 GHz 5.15 GHz	0.098 in	2.5 mm	3.5 dBi
Molex 2042810050	2.442 GHz 5.5 GHz	4 GHz	2 GHz	3 GHz	I-PEX MHF1 U.FL (UMCC)	802.15.4 WiFi	-10 dB	2	Adhesive		Wi-Fi Zigbee™	PCB Trace	Cable	50 mm	0.1 mm	0.004 in	2.484 GHz 5.85 GHz	2.4 GHz 5.15 GHz			2.2 dBi 3.5 dBi
Molex 2042810200	2.442 GHz 5.5 GHz	4 GHz	2 GHz	3 GHz	IPEX MHF1 U.FL (UMCC)	802.15.4 WiFi	-10 dB	2	Adhesive		Wi-Fi Zigbee™	PCB Trace	Cable	200 mm	0.1 mm	0.004 in	2.484 GHz 5.85 GHz	2.4 GHz 5.15 GHz			1.6 dBi 2.8 dBi

Wi-Fi 6E Flex Cabled Side-Fed Balanced Antenna, 100.00mm Cable Length, Compatible with I-PEX MHF4 Connectors
