TPS55065-Q1 Series

1.5-V to 40-V, 500-mA buck-boost converter with 5-V fixed output voltage, AEC-Q100 qualified

Catalog

1.5-V to 40-V, 500-mA buck-boost converter with 5-V fixed output voltage, AEC-Q100 qualified

Part	Grade	Frequency - Switching	Output Configuration	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case [custom]	Package / Case	Qualification	Supplier Device Package	Voltage - Output (Min/Fixed)	Function	Current - Output	Mounting Type	Topology	Synchronous Rectifier	Voltage - Input (Min) [Min]	Output Type	Utilized IC / Part	Outputs and Type	Outputs and Type	Voltage - Output	Main Purpose	Board Type	Regulator Topology	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents
Texas Instruments TPS55065QPWPRQ1	Automotive	440 kHz	Positive	1	-40 °C	125 °C	20-PowerTSSOP	4.4 mm	0.173 in	AEC-Q100	20-HTSSOP	5 V	Step-Up/Step-Down	500 mA	Surface Mount	Buck-Boost		1.5 V	1.81 mOhm

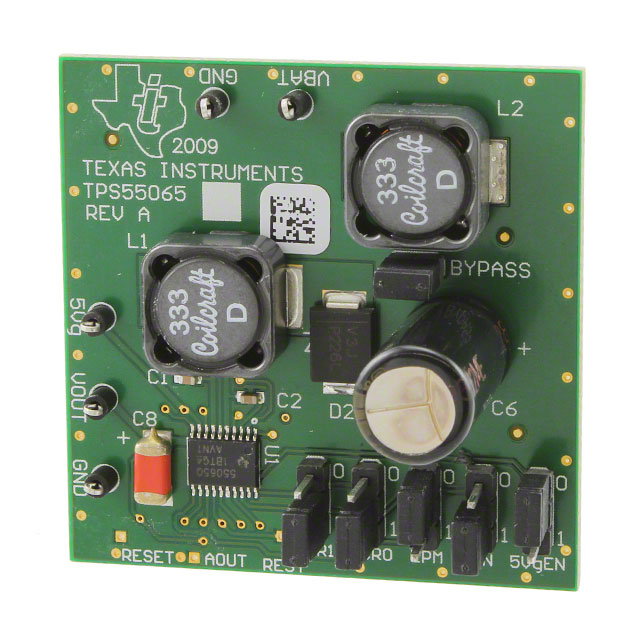

Texas Instruments TPS55065EVM		440 kHz												500 mA						TPS55065	Non-Isolated	1	5 V	DC/DC Step Up or Down	Fully Populated	Buck-Boost	1.5 V	40 V	Board(s)

Catalog

1.5-V to 40-V, 500-mA buck-boost converter with 5-V fixed output voltage, AEC-Q100 qualified

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following ResultsDevice Temperature Grade 1: –40°C to+125°C Ambient Operating TemperatureRangeDevice HBM ESD Classification Level 1BDevice CDM ESD Classification Level C4BSwitched-Mode Regulator5 V ±2%, Normal Mode5 V ±3%, Low-Power or Crossover ModeSwitching Frequency, 440 kHz (Typical)Input Operating Range, 1.5 V to 40 V, (Vdriver)500-mA Load-Current Capability200-mA Load-Current Capability Down to 2-VInput (Vdriver)120-mA Load-Current Capability Down to1.5-V Input (Vdriver)Enable FunctionLow-Power Operation ModeSwitched 5-V Regulated Output on 5Vg WithCurrent LimitProgrammable Slew Rate and FrequencyModulation for EMI ConsiderationReset Function With Deglitch Timer andProgrammable DelayAlarm Function for Undervoltage Detection andIndicationThermally Enhanced Package for Efficient HeatManagementQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following ResultsDevice Temperature Grade 1: –40°C to+125°C Ambient Operating TemperatureRangeDevice HBM ESD Classification Level 1BDevice CDM ESD Classification Level C4BSwitched-Mode Regulator5 V ±2%, Normal Mode5 V ±3%, Low-Power or Crossover ModeSwitching Frequency, 440 kHz (Typical)Input Operating Range, 1.5 V to 40 V, (Vdriver)500-mA Load-Current Capability200-mA Load-Current Capability Down to 2-VInput (Vdriver)120-mA Load-Current Capability Down to1.5-V Input (Vdriver)Enable FunctionLow-Power Operation ModeSwitched 5-V Regulated Output on 5Vg WithCurrent LimitProgrammable Slew Rate and FrequencyModulation for EMI ConsiderationReset Function With Deglitch Timer andProgrammable DelayAlarm Function for Undervoltage Detection andIndicationThermally Enhanced Package for Efficient HeatManagement

Description

The TPS55065 is a switched-mode regulator with integrated switches for voltage-mode control. With the aid of external components (LC combination), the device regulates the output to 5 V ±3% for a wide input-voltage range. The TPS55065 device offers a reset function to detect and indicate when the 5-V output rail is outside of the specified tolerance. This reset delay is programmable using an external timing capacitor on the REST terminal. Additionally, an alarm (AOUT) feature is activated when the input supply rail Vdriveris below a prescaled specified value (set by the AINterminal). The TPS55065 device has a frequency-modulation scheme to minimize EMI. The clock modulator permits a modulation of the switching frequency to reduce interference energy in the frequency band. The 5-Vg output is a switched 5-V regulated output with internal current limiting to prevent assertion of RESET when powering a capacitive load on the supply line. This function is controlled by the 5Vg_ENABLE terminal. If there is a short to ground on this output (5Vg output), the output self-protects by operating in a chopping mode. This does, however, increase the output ripple voltage on VOUTduring this fault condition. The TPS55065 is a switched-mode regulator with integrated switches for voltage-mode control. With the aid of external components (LC combination), the device regulates the output to 5 V ±3% for a wide input-voltage range. The TPS55065 device offers a reset function to detect and indicate when the 5-V output rail is outside of the specified tolerance. This reset delay is programmable using an external timing capacitor on the REST terminal. Additionally, an alarm (AOUT) feature is activated when the input supply rail Vdriveris below a prescaled specified value (set by the AINterminal). The TPS55065 device has a frequency-modulation scheme to minimize EMI. The clock modulator permits a modulation of the switching frequency to reduce interference energy in the frequency band. The 5-Vg output is a switched 5-V regulated output with internal current limiting to prevent assertion of RESET when powering a capacitive load on the supply line. This function is controlled by the 5Vg_ENABLE terminal. If there is a short to ground on this output (5Vg output), the output self-protects by operating in a chopping mode. This does, however, increase the output ripple voltage on VOUTduring this fault condition.
