78453 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

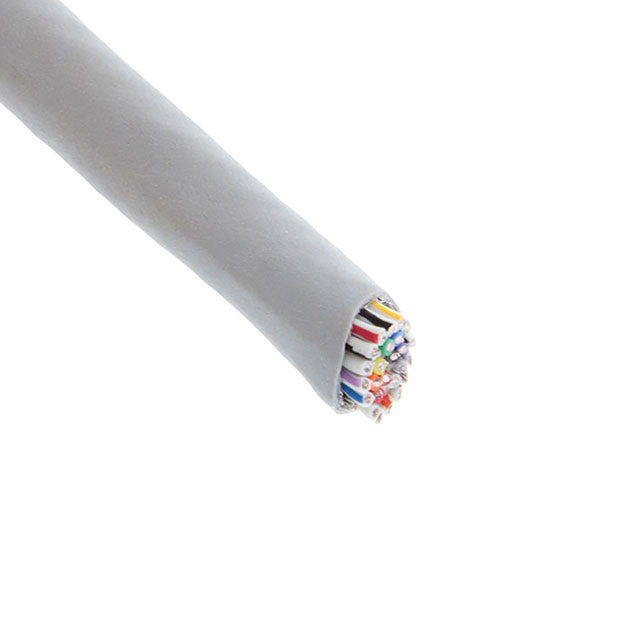

CABLE 25COND 24AWG SHLD
| Part | Voltage | Conductor Insulation | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Length | Length | Shield Coverage | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Shield Material | Conductor Material | Features | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Number of Conductors | Shield Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 300 V | Polyphenylene Ether Modified (mPPE) | Slate | 0.015 in | 0.381 mm | ISO 10993 UL Style 21460 | 1000 ft | 304.8 m | 100 % | 24 AWG | 0.299 in | 7.6 mm | Multi-Conductor | Copper Tinned Suprashield® | Copper Tinned | Biological Compatibility Drain Wire Rip Cord | -40 °C | 80 C | Polyphenylene Ether Modified (mPPE) | 25 | Braid Foil | ||
ALPHA WIRE | 300 V | Polyphenylene Ether Modified (mPPE) | Slate | 0.015 in | 0.381 mm | ISO 10993 UL Style 21460 | 100 % | 24 AWG | 0.299 in | 7.6 mm | Multi-Conductor | Copper Tinned Suprashield® | Copper Tinned | Biological Compatibility Drain Wire Rip Cord | -40 °C | 80 C | Polyphenylene Ether Modified (mPPE) | 25 | Braid Foil | 30.5 m | 100 ft |
