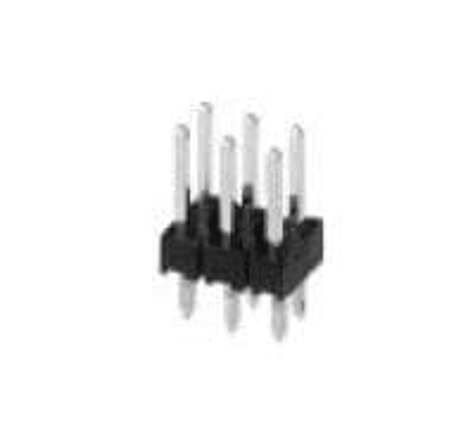

104352 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 18POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Voltage Rating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish - Mating	Shrouding	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Connector Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Number of Positions	Contact Shape	Mounting Type	Insulation Color	Material Flammability Rating	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Termination	Number of Positions [custom]
TE Connectivity AMP Connectors 104352-9	2.54 µm	100 µin	0.23 in	5.84 mm	30 VAC	0.1 "	2.54 mm	3 A	Tin-Lead	Unshrouded	2	0.09 in	2.29 mm	105 ░C	-65 ░C	All	Header Breakaway	3.05 mm	0.12 in	100 çin	2.54 çm	Board to Board Cable	18	Square	Through Hole	Black	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	11.18 mm	0.44 in	Tin-Lead	Press-Fit Solder
TE Connectivity AMP Connectors 104352-8	2.54 µm	100 µin	0.23 in	5.84 mm	30 VAC	0.1 "	2.54 mm	3 A	Tin-Lead	Unshrouded	2	0.09 in	2.29 mm	105 ░C	-65 ░C	All	Header Breakaway	3.05 mm	0.12 in	100 çin	2.54 çm	Board to Board Cable	16	Square	Through Hole	Black	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	11.18 mm	0.44 in	Tin-Lead	Press-Fit Solder
TE Connectivity AMP Connectors 1-104352-8	2.54 µm	100 µin	0.23 in	5.84 mm	30 VAC	0.1 "	2.54 mm	3 A	Tin-Lead	Unshrouded	2	0.09 in	2.29 mm	105 ░C	-65 ░C	All	Header Breakaway	3.05 mm	0.12 in	100 çin	2.54 çm	Board to Board Cable	50	Square	Through Hole	Black	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	11.18 mm	0.44 in	Tin-Lead	Press-Fit Solder
TE Connectivity AMP Connectors 104352-7	2.54 µm	100 µin	0.23 in	5.84 mm	30 VAC	0.1 "	2.54 mm	3 A	Tin-Lead	Unshrouded	2	0.09 in	2.29 mm	105 ░C	-65 ░C	All	Header Breakaway	3.05 mm	0.12 in	100 çin	2.54 çm	Board to Board Cable	14	Square	Through Hole	Black	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	11.18 mm	0.44 in	Tin-Lead	Press-Fit Solder
TE Connectivity AMP Connectors 1-104352-9	2.54 µm	100 µin	0.23 in	5.84 mm	30 VAC	0.1 "	2.54 mm	3 A	Tin-Lead	Unshrouded	2	0.09 in	2.29 mm	105 ░C	-65 ░C	All	Header Breakaway	3.05 mm	0.12 in	100 çin	2.54 çm	Board to Board Cable	60	Square	Through Hole	Black	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	11.18 mm	0.44 in	Tin-Lead	Press-Fit Solder
TE Connectivity AMP Connectors 1-104352-3	2.54 µm	100 µin	0.23 in	5.84 mm	30 VAC	0.1 "	2.54 mm	3 A	Tin-Lead	Unshrouded	2	0.09 in	2.29 mm	105 ░C	-65 ░C	All	Header Breakaway	3.05 mm	0.12 in	100 çin	2.54 çm	Board to Board Cable	26	Square	Through Hole	Black	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	11.18 mm	0.44 in	Tin-Lead	Press-Fit Solder
TE Connectivity AMP Connectors 1-104352-7	2.54 µm	100 µin	0.23 in	5.84 mm	30 VAC	0.1 "	2.54 mm	3 A	Tin-Lead	Unshrouded	2	0.09 in	2.29 mm	105 ░C	-65 ░C	All	Header Breakaway	3.05 mm	0.12 in	100 çin	2.54 çm	Board to Board Cable	40	Square	Through Hole	Black	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	11.18 mm	0.44 in	Tin-Lead	Press-Fit Solder
TE Connectivity AMP Connectors 1-104352-5	2.54 µm	100 µin	0.23 in	5.84 mm	30 VAC	0.1 "	2.54 mm	3 A	Tin-Lead	Unshrouded	2	0.09 in	2.29 mm	105 ░C	-65 ░C	All	Header Breakaway	3.05 mm	0.12 in	100 çin	2.54 çm	Board to Board Cable	30	Square	Through Hole	Black	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	11.18 mm	0.44 in	Tin-Lead	Press-Fit Solder
TE Connectivity AMP Connectors 1-104352-6	2.54 µm	100 µin	0.23 in	5.84 mm	30 VAC	0.1 "	2.54 mm	3 A	Tin-Lead	Unshrouded	2	0.09 in	2.29 mm	105 ░C	-65 ░C	All	Header Breakaway	3.05 mm	0.12 in	100 çin	2.54 çm	Board to Board Cable		Square	Through Hole	Black	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	11.18 mm	0.44 in	Tin-Lead	Press-Fit Solder	34
TE Connectivity AMP Connectors 104352-5	2.54 µm	100 µin	0.23 in	5.84 mm	30 VAC	0.1 "	2.54 mm	3 A	Tin-Lead	Unshrouded	2	0.09 in	2.29 mm	105 ░C	-65 ░C	All	Header Breakaway	3.05 mm	0.12 in	100 çin	2.54 çm	Board to Board Cable	10	Square	Through Hole	Black	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	11.18 mm	0.44 in	Tin-Lead	Press-Fit Solder
