CSHD3 Series

Catalog

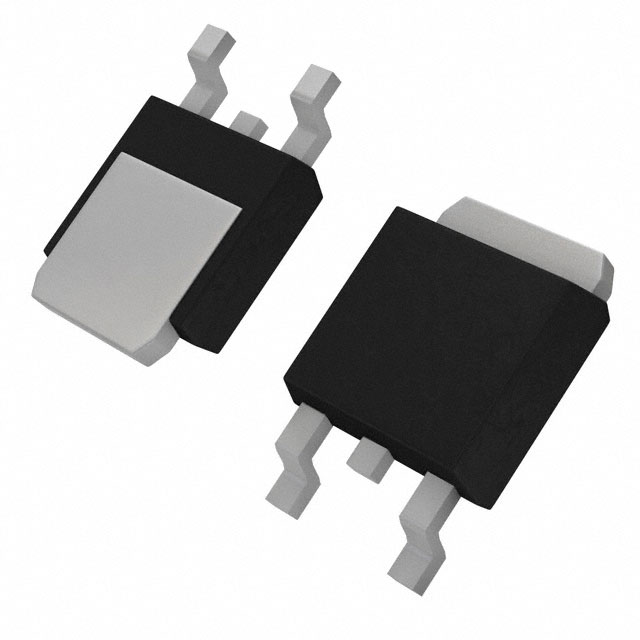

DIODE SCHOTTKY 40V 3A DPAK

Part	Mounting Type	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If	Speed	Technology	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Voltage - Forward (Vf) (Max) @ If [Max]
Central Semiconductor Corp CSHD3-40 TR13 PBFREE	Surface Mount	DPAK	150 °C	-65 C	650 mV	200 mA 500 ns	Schottky	3 A	100 µA	40 V	DPAK (2 Leads + Tab) SC-63 TO-252-3
Central Semiconductor Corp CSHD3-60 TR13 PBFREE	Surface Mount	DPAK	150 °C	-65 C		200 mA 500 ns	Schottky	3 A	30 µA	60 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	750 mV
