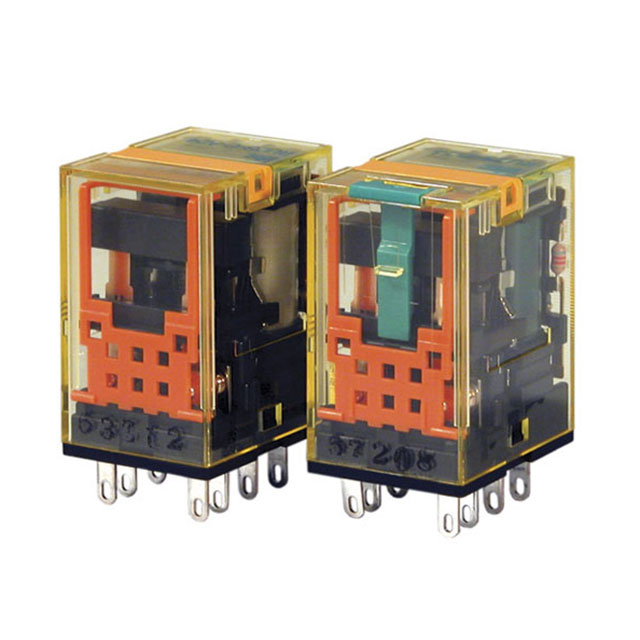

RU2S-C Series
Manufacturer: IDEC
Beta
⌘K
RELAY PLUG-IN DPDT 10A 24VDC ROHS COMPLIANT: YES
| Part | Coil Resistance | Load - Max Switching | Contact Form | Must Operate Voltage | Features | Operate Time | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating (Current) | Release Time | Contact Material | Switching Voltage [Max] | Termination Style | Coil Type | Must Release Voltage | Coil Voltage | Approval Agency | Coil Current | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 605 Ohms | 300 W 2500 VA | DPDT (2 Form C) | 19.2 VDC | Diode Lighted Indicator Mechanical Indicator | 20 ms | General Purpose | 60 °C | -55 C | 10 A | 20 ms | Silver (Ag) | 30 VDC 250 VAC | Plug In | Non Latching | 2.4 VDC | 24 VDC | CE CSA cURus TUV | 44.7 mA | Socketable |
 IDEC | 12.1 kOhms | 300 W 2500 VA | DPDT (2 Form C) | 88 VDC | Lighted Indicator Mechanical Indicator | 20 ms | General Purpose | 60 °C | -55 C | 10 A | 20 ms | Silver Alloy | 30 VDC 250 VAC | Plug In 8 Pin | Non Latching | 11 VDC | 110 VDC | CE CSA cURus TUV | 8.9 mA | Socketable |
IDEC | 160 Ohms | 300 W 2500 VA | DPDT (2 Form C) | 9.6 VDC | Lighted Indicator Mechanical Indicator | 20 ms | General Purpose | 60 °C | -55 C | 10 A | 20 ms | Silver Alloy | 30 VDC 250 VAC | Plug In 8 Pin | Non Latching | 1.2 VDC | 12 VDC | CE CSA cURus TUV | 80 mA | Socketable |
IDEC | 18.23 kOhms | 300 W 2500 VA | DPDT (2 Form C) | 176 VAC | Lighted Indicator Mechanical Indicator | 20 ms | General Purpose | 60 °C | -55 C | 10 A | 20 ms | Silver Alloy | 30 VDC 250 VAC | Plug In 8 Pin | Non Latching | 66 VAC | 220 VAC/DC | CE CSA cURus TUV | 3.6 mA | Socketable |
