3252 Series

Catalog

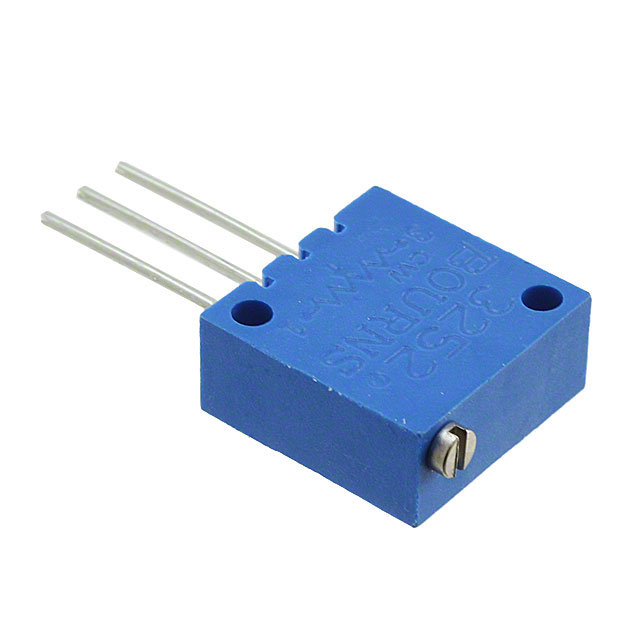

TRIMMER RESISTORS - THROUGH HOLE 5KOHMS 1/2" SQUARE SEALED PANEL MOUNT

Part	Adjustment Type	Temperature Coefficient	Number of Turns	Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Termination Style	Resistive Material	Power (Watts)	Power (Watts)	Tolerance	Mounting Type
Bourns Inc. 3252L-1-502M	Top Adjustment	100 ppm/°C	25	5 kOhms	12.7 mm	4.75 mm	0.187 "	0.5 "	Wire Leads	Cermet	3/4W	0.75 W	10 %	Panel Mount Wire Leads
Bourns Inc. 3252P-1-101LF	Side Adjustment	100 ppm/°C	25	100 Ohms	12.7 mm	5.59 mm	0.22 in	0.5 "	PC Pins	Cermet	3/4W	0.75 W	10 %	Chassis Mount
Bourns Inc. 3252W-1-202MLF	Top Adjustment	100 ppm/°C	25	2 kOhms	12.7 mm	5.59 mm	0.22 in	0.5 "	PC Pins	Cermet	3/4W	0.75 W	10 %	Panel Mount Through Hole
Bourns Inc. 3252W-1-203MLF	Top Adjustment	100 ppm/°C	25	20 kOhms	12.7 mm	5.59 mm	0.22 in	0.5 "	PC Pins	Cermet	3/4W	0.75 W	10 %	Panel Mount Through Hole
Bourns Inc. 3252W-1-105	Top Adjustment	100 ppm/°C	25	1 MOhms	12.7 mm	5.59 mm	0.22 in	0.5 "	PC Pins	Cermet	3/4W	0.75 W	10 %	Chassis Mount
Bourns Inc. 3252W-1-204M	Top Adjustment	100 ppm/°C	25	200000 Ohms	12.7 mm	5.59 mm	0.22 in	0.5 "	PC Pins	Cermet	3/4W	0.75 W	10 %	Panel Mount Through Hole
Bourns Inc. 3252P-1-503	Side Adjustment	100 ppm/°C	25	50000 Ohms	12.7 mm	5.59 mm	0.22 in	0.5 "	PC Pins	Cermet	3/4W	0.75 W	10 %	Chassis Mount
Bourns Inc. 3252L-1-253M	Top Adjustment	100 ppm/°C	25	25 kOhms	12.7 mm	4.75 mm	0.187 "	0.5 "	Wire Leads	Cermet	3/4W	0.75 W	10 %	Panel Mount Wire Leads
Bourns Inc. 3252L-1-101	Top Adjustment	100 ppm/°C	25	100 Ohms	12.7 mm	4.75 mm	0.187 "	0.5 "	Wire Leads	Cermet	3/4W	0.75 W	10 %	Chassis Mount
