SI88221 Series

Catalog

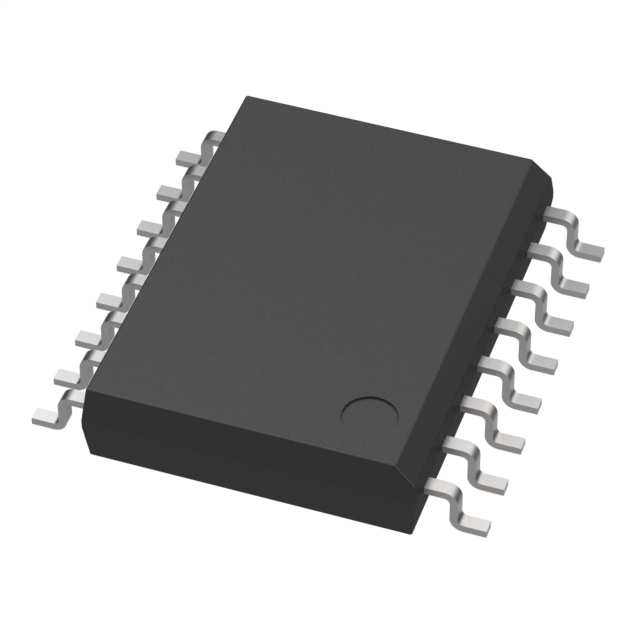

DGTL ISOLTR 5KV 2CH GP 16-SOIC

Part	Mounting Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Propagation Delay tpLH / tpHL (Max)	Propagation Delay tpLH / tpHL (Max) [Max]	Data Rate	Qualification	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Channel Type	Grade	Package / Case	Package / Case	Package / Case	Common Mode Transient Immunity (Min) [Min]	Pulse Width Distortion (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Technology	Inputs - Side 1/Side 2	Number of Channels	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Pulse Width Distortion (Max) [Max]
Skyworks Solutions Inc. SI88221ED-IS	Surface Mount	2.5 ns	2.5 ns	17.5 ns	12.6 ns	100 Mbps	AEC-Q100	16-SOIC	5.5 V	3 V	Unidirectional	Automotive	16-SOIC	7.5 mm	0.295 "	40 kV/µs	4.8 ns	125 °C	-40 C	General Purpose	Capacitive Coupling	1	2
Skyworks Solutions Inc. SI88221ED-ISR	Surface Mount	2.5 ns	2.5 ns	17.5 ns	12.6 ns	100 Mbps	AEC-Q100	16-SOIC	5.5 V	3 V	Unidirectional	Automotive	16-SOIC	7.5 mm	0.295 "	40 kV/µs	4.8 ns	125 °C	-40 C	General Purpose	Capacitive Coupling	1	2
Skyworks Solutions Inc. SI88221EC-ISR	Surface Mount	2.5 ns	2.5 ns			100 Mbps		16-SOIC	5.5 V	3 V	Unidirectional		16-SOIC	7.5 mm	0.295 "	40 kV/µs		125 °C	-40 C	General Purpose	Capacitive Coupling	1	2	23 ns	18 ns	7 ns
Skyworks Solutions Inc. SI88221BD-IS	Surface Mount	2.5 ns	2.5 ns	17.5 ns	12.6 ns	100 Mbps	AEC-Q100	16-SOIC	5.5 V	3 V	Unidirectional	Automotive	16-SOIC	7.5 mm	0.295 "	40 kV/µs	4.8 ns	125 °C	-40 C	General Purpose	Capacitive Coupling	1	2
Skyworks Solutions Inc. SI88221EC-IS	Surface Mount	2.5 ns	2.5 ns			100 Mbps		16-SOIC	5.5 V	3 V	Unidirectional		16-SOIC	7.5 mm	0.295 "	40 kV/µs		125 °C	-40 C	General Purpose	Capacitive Coupling	1	2	23 ns	18 ns	7 ns
Skyworks Solutions Inc. SI88221BC-IS	Surface Mount	2.5 ns	2.5 ns			100 Mbps		16-SOIC	5.5 V	3 V	Unidirectional		16-SOIC	7.5 mm	0.295 "	40 kV/µs		125 °C	-40 C	General Purpose	Capacitive Coupling	1	2	23 ns	18 ns	7 ns
