FA5S010H Series
Manufacturer: JAE Electronics
Beta
⌘K

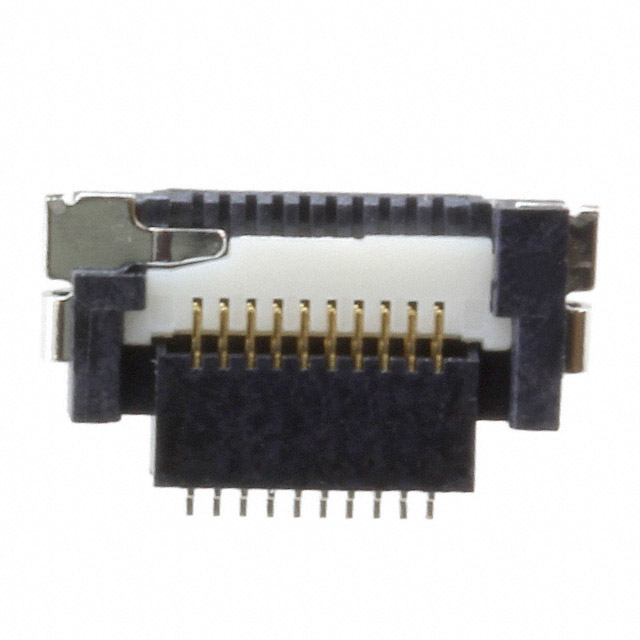

CONN FPC BOTTOM 10POS 0.5MM R/A
| Part | Actuator Color | Housing Color | Mating Cycles | Current Rating (Amps) | Contact Material | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Features | Actuator Material | Contact Finish | Voltage Rating | Height Above Board [z] | Height Above Board [z] | FFC, FCB Thickness | Pitch | Pitch | Mounting Type | Flat Flex Type | Housing Material | Material Flammability Rating | Termination | Locking Feature | Cable End Type | Connector/Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | White | Black | 20 | 0.8 A | Copper Alloy | 10 | 85 °C | -40 C | Solder Retention Zero Insertion Force (ZIF) | Glass Filled Nylon Polyamide (PA) | Gold | 50 V | 1.45 mm | 0.057 in | 0.3 mm | 0.02 " | 0.5 mm | Right Angle Surface Mount | FPC | Glass Filled Liquid Crystal Polymer (LCP) | UL94 V-0 | Solder | Flip Lock | Tapered | Contacts Bottom |
