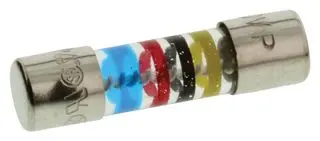

FUSE 5X20 T EBC 4A/250V HIGH I2T (P)
Description
AI
5x20mm time-Lag glass body cartridge fuse designed to IEC specification
Beta
⌘K
FUSE 5X20 T EBC 4A/250V HIGH I2T (P)
FUSE 5X20 T EBC 4A/250V HIGH I2T (P)
| Part | Package / Case [y] | Package / Case | Package / Case [x] | Approval Agency | Fuse Type | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Melting I²t | Response Time | Breaking Capacity @ Rated Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Mounting Type | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 20 mm | Axial | 5 mm | CCC CE CSA PSE SEMKO UL VDE | Cartridge Glass | 22.5 mm | 5.8 mm | 0.228 " | 0.886 in | 330 I²t | Slow Blow | 150 A | -55 C | 125 °C | 4 A | Through Hole | 250 V |

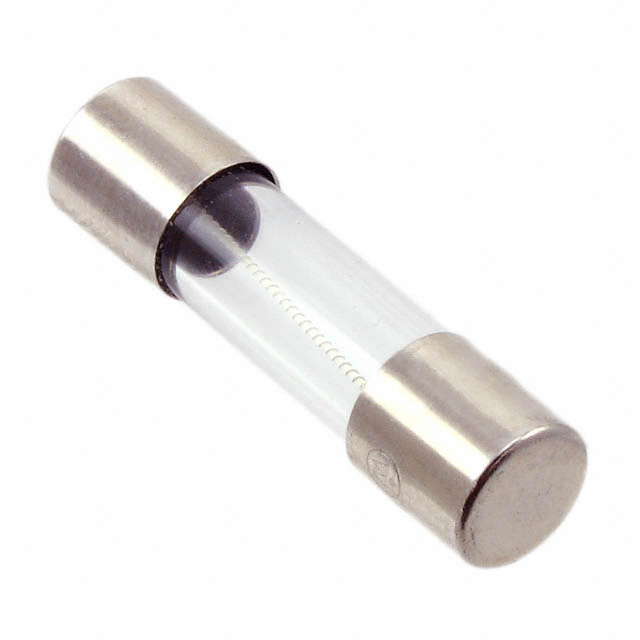

 LITTELFUSE | 20 mm | 5 mm | CCC CE CSA PSE SEMKO UL VDE | Cartridge Glass | 20 mm | 5.2 mm | 0.205 in | 0.787 " | 330 I²t | Slow Blow | 150 A | -55 C | 125 °C | 4 A | Requires Holder | 250 V | |
 LITTELFUSE | 20 mm | 5 mm | CCC CE CSA PSE SEMKO UL VDE | Cartridge Glass | 20 mm | 5.2 mm | 0.205 in | 0.787 " | 330 I²t | Slow Blow | 150 A | -55 C | 125 °C | 4 A | Requires Holder | 250 V | |
 LITTELFUSE | 20 mm | 5 mm | cULus | Cartridge Glass | 20 mm | 5.2 mm | 0.205 in | 0.787 " | 0.16 I²t | Medium Blow | 80 A | -25 °C | 70 °C | 0.315 A | Requires Holder | 250 V |
