770969 Series
Manufacturer: TE Connectivity AMP Connectors
Catalog

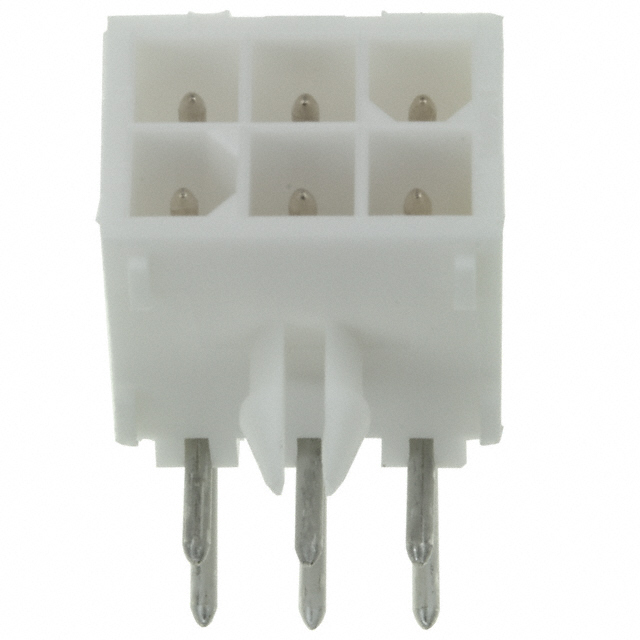

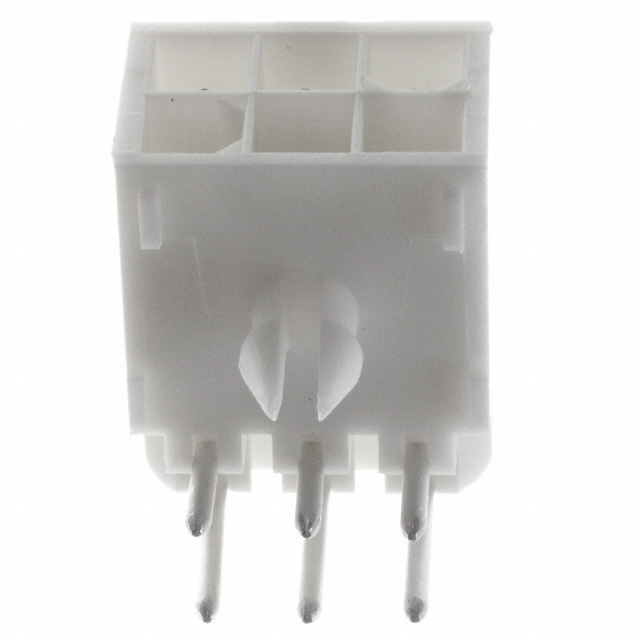

CONN HEADER R/A 6POS 4.14MM
| Part | Contact Finish Thickness - Post | Applications | Shrouding | Features | Contact Finish - Post | Contact Finish - Mating | Contact Type | Fastening Type | Insulation Color | Style | Contact Material | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Material | Number of Positions Loaded | Current Rating (Amps) | Mounting Type | Contact Length - Post | Contact Length - Post | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Number of Rows [custom] | Material Flammability Rating | Contact Shape | Connector Type | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | Shrouded - 4 Wall | Board Lock | Tin-Lead | Gold | Male Pin | Locking Ramp | White | Board to Cable/Wire | Brass | 4.14 mm | 0.163 in | Nylon Polyamide (PA) | All | Varies by Wire Gauge | Right Angle Through Hole | 3.68 mm | 0.145 in | Solder | 0.76 Ám | 30 Áin | 600 VAC | 2 | UL94 V-0 | Circular | Header | 6 | 0.163 in | 4.14 mm | 9.8 mm | 0.386 in | -20 ░C | 105 ░C |
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | Shrouded - 4 Wall | Board Lock | Tin-Lead | Tin-Lead | Male Pin | Locking Ramp | White | Board to Cable/Wire | Brass | 4.14 mm | 0.163 in | Nylon Polyamide (PA) | All | Varies by Wire Gauge | Right Angle Through Hole | 3.68 mm | 0.145 in | Solder | 3.81 Ám | 150 Áin | 600 VAC | 2 | UL94 V-0 | Circular | Header | 6 | 0.163 in | 4.14 mm | 9.8 mm | 0.386 in | -20 ░C | 85 °C |
