11_N-75 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

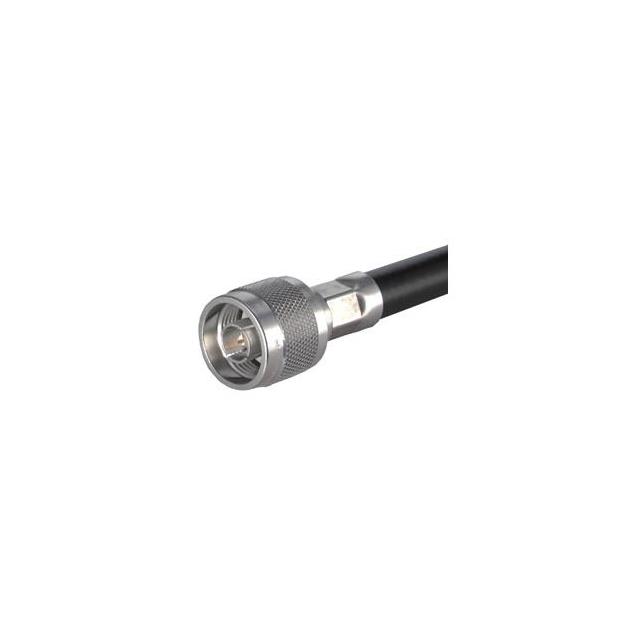

11_N-75-4-3/133_NE
| Part | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Mating Cycles | Center Contact Plating | Body Finish | Connector Type | Impedance | Center Contact Material | Cable Group | Contact Termination | Mounting Type | Frequency - Max [Max] | Housing Color | Shield Termination | Number of Ports | Connector Style | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Brass | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1000 VDC | 500 | Gold | White Bronze | Plug Male Pin | 75 Ohms | Brass | RG-59 | Solder | Free Hanging (In-Line) | 1.5 GHz | Silver | Clamp | 1 | N Type | Threaded |
 Huber+Suhner, Inc. | Brass | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1000 VDC | 500 | Gold | White Bronze | Plug Male Pin | 75 Ohms | Brass | RG-59 | Crimp | Free Hanging (In-Line) | 1.5 GHz | Silver | Crimp | 1 | N Type | Threaded |
Huber+Suhner, Inc. | Brass | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1000 VDC | 500 | Gold | White Bronze | Plug Male Pin | 75 Ohms | Brass | Crimp | Free Hanging (In-Line) | 1.5 GHz | Silver | Crimp | 1 | N Type | Threaded | |
 Huber+Suhner, Inc. | Brass | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1000 VDC | 500 | Gold | White Bronze | Plug Male Pin | 75 Ohms | Brass | RG-59 | Solder | Free Hanging (In-Line) | 1.5 GHz | Silver | Clamp | 1 | N Type | Threaded |
