XDMDK100 Series
Manufacturer: SunLED
Beta
⌘K
DISPLAY 7SEG 3.98" SGL RED 10DIP
| Part | Package / Case | Package / Case | Digit/Alpha Size | Digit/Alpha Size | Current - Test | Wavelength - Peak | Display Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Millicandela Rating | Common Pin | Color | Number of Characters | Power Dissipation (Max) | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

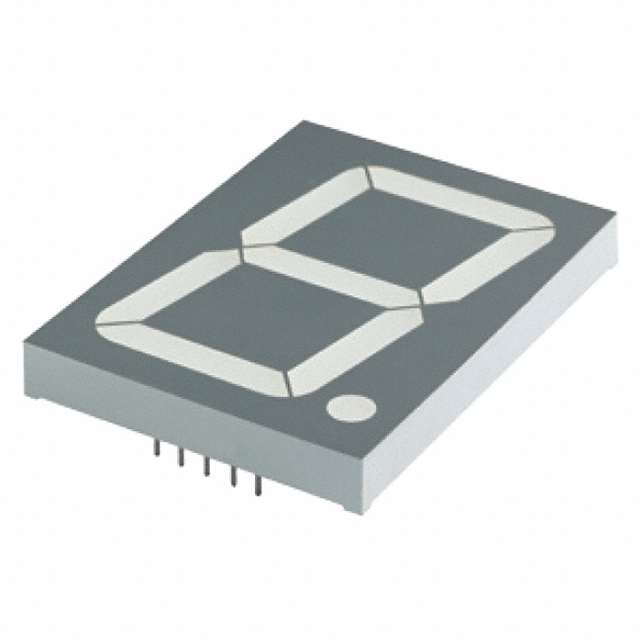

 SunLED | 4.21 in 107 mm | 10-DIP | 3.98 in | 101.2 mm | 10 mA | 645 nm | 7-Segment | 122 mm | 3.543 in | 4.803 in | 90 mm | 15 mm | 0.591 in | 74 mcd | Common Anode | Red | 1 | 150 mW | 7.4 V |

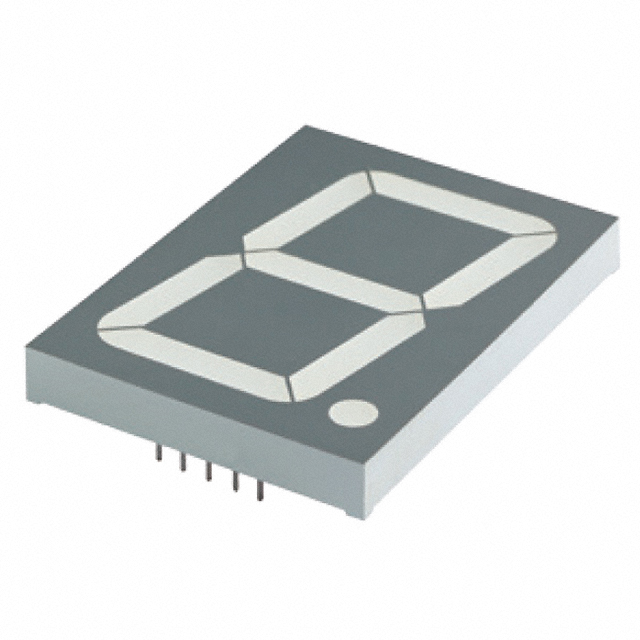

 SunLED | 4.21 in 107 mm | 10-DIP | 3.98 in | 101.2 mm | 10 mA | 645 nm | 7-Segment | 122 mm | 3.543 in | 4.803 in | 90 mm | 15 mm | 0.591 in | 74 mcd | Common Cathode | Red | 1 | 150 mW | 7.4 V |
