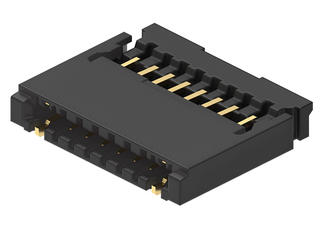

Easy-On FFC/FPC Connector, 0.50mm Pitch, FlatLock Series, Right-Angle, Dual Contact, 0.90mm Height, 6 Circuits, Gold Plating
Easy-On FFC/FPC Connector, 0.50mm Pitch, FlatLock Series, Right-Angle, Dual Contact, 0.90mm Height, 6 Circuits, Gold Plating
Easy-On FFC/FPC Connector, 0.50mm Pitch, FlatLock Series, Right-Angle, Dual Contact, 0.90mm Height, 6 Circuits, Gold Plating
| Part | Actuator Material | Contact Finish | Locking Feature | Flat Flex Type | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Material | Housing Material | FFC, FCB Thickness [custom] | Pitch | Pitch | Cable End Type | Height Above Board [z] | Height Above Board [z] | Connector/Contact Type | Material Flammability Rating | Number of Positions | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Glass Filled Nylon Polyamide (PA) | Gold | Backlock Flip Lock | FFC FPC | 50 V | 85 °C | -40 C | Right Angle Surface Mount | Copper Alloy | Glass Filled Liquid Crystal Polymer (LCP) | 0.2 mm | 0.02 " | 0.5 mm | Notched Tapered | 0.88 mm | 0.035 in | Contacts Top and Bottom | UL94 HB UL94 V-0 | 6 | Solder | Solder Retention |
