745-033 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 33POS 0.100

Part	Material - Insulation	Termination Rows	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Mounting Type	Number of Positions/Bay/Row	Color	Read Out	Number of Positions [custom]	Gender	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Number of Rows	Pitch	Pitch	Contact Type
EDAC Inc. 745-033-525-101	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	33	Black	Single	33	Female	Non Specified - Single Edge	-40 C	105 ░C	Press-Fit	30 Áin	0.76 Ám	Copper Alloy	1	0.1 "	2.54 mm	Cantilever
EDAC Inc. 745-033-540-106	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	33	Black	Single	33	Female	Non Specified - Single Edge	-40 C	105 ░C	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Copper Alloy	1	0.1 "	2.54 mm	Cantilever
EDAC Inc. 745-033-525-106	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	33	Black	Single	33	Female	Non Specified - Single Edge	-40 C	105 ░C	Press-Fit	30 Áin	0.76 Ám	Copper Alloy	1	0.1 "	2.54 mm	Cantilever
EDAC Inc. 745-033-540-101	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	33	Black	Single	33	Female	Non Specified - Single Edge	-40 C	105 ░C	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Copper Alloy	1	0.1 "	2.54 mm	Cantilever
EDAC Inc. 745-033-520-106	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	33	Black	Single	33	Female	Non Specified - Single Edge	-40 C	105 ░C	Press-Fit	30 Áin	0.76 Ám	Copper Alloy	1	0.1 "	2.54 mm	Cantilever
EDAC Inc. 745-033-522-106	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	33	Black	Single	33	Female	Non Specified - Single Edge	-40 C	105 ░C	Press-Fit	30 Áin	0.76 Ám	Copper Alloy	1	0.1 "	2.54 mm	Cantilever
EDAC Inc. 745-033-522-101	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	33	Black	Single	33	Female	Non Specified - Single Edge	-40 C	105 ░C	Press-Fit	30 Áin	0.76 Ám	Copper Alloy	1	0.1 "	2.54 mm	Cantilever

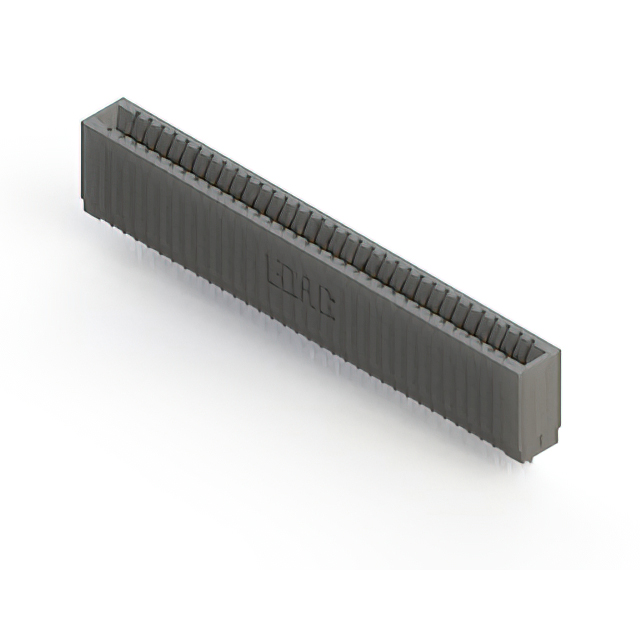

EDAC Inc. 745-033-545-101	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	33	Black	Single	33	Female	Non Specified - Single Edge	-40 C	105 ░C	Press-Fit	30 Áin	0.76 Ám	Copper Alloy	1	0.1 "	2.54 mm	Cantilever

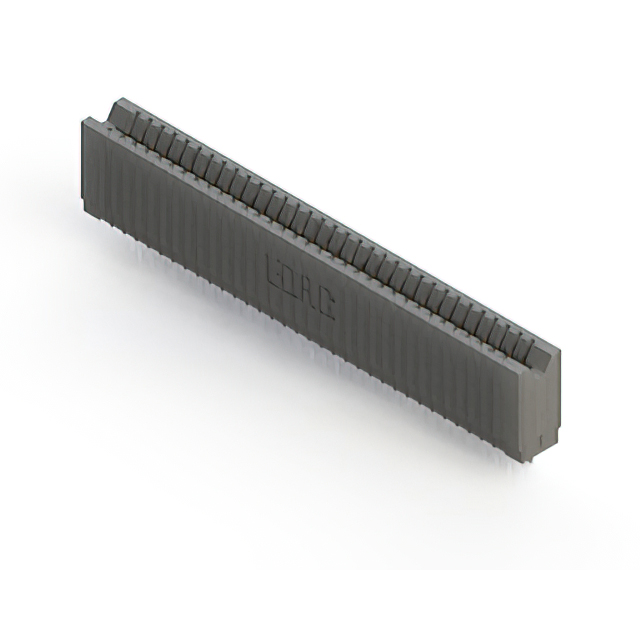

EDAC Inc. 745-033-545-106	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	33	Black	Single	33	Female	Non Specified - Single Edge	-40 C	105 ░C	Press-Fit	30 Áin	0.76 Ám	Copper Alloy	1	0.1 "	2.54 mm	Cantilever

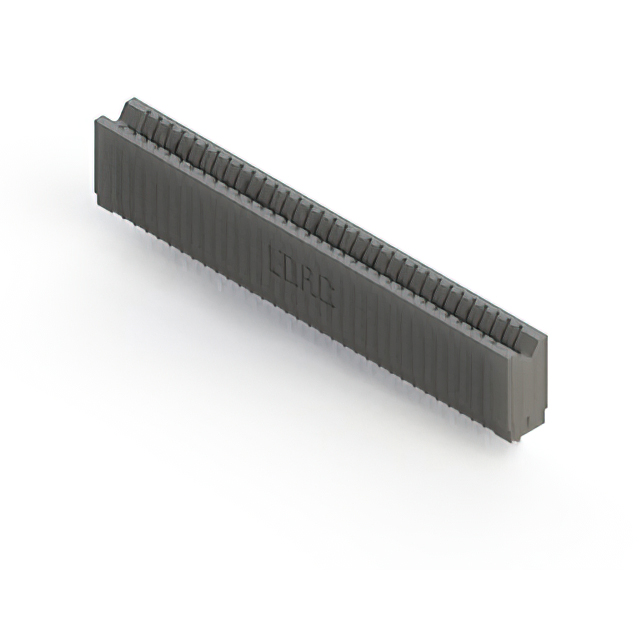

EDAC Inc. 745-033-541-106	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	33	Black	Single	33	Female	Non Specified - Single Edge	-40 C	105 ░C	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Copper Alloy	1	0.1 "	2.54 mm	Cantilever
