86130162 Series

Catalog

CONN HEADER VERT 16POS 2.54MM

Part	Overall Contact Length	Overall Contact Length	Features	Contact Type	Contact Finish - Mating	Connector Type	Fastening Type	Voltage Rating	Number of Positions	Insulation Height	Insulation Height	Shrouding	Insulation Color	Pitch - Mating	Pitch - Mating	Mounting Type	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating [x]	Style	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Shape	Number of Rows	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]
Amphenol ICC (FCI) 86130162324355E1LF	16.65 mm	0.656 in	Keying Slot	Male Pin	Gold or Gold-Palladium	Header	Latch Lock/Eject Hooks Long	250 VDC	16	0.693 in	17.6 mm	Shrouded - 4 Wall	Gray	0.1 in	2.54 mm	Through Hole	UL94 V-0	6.1 mm	0.24 in	Board to Cable/Wire	0.114 in	2.9 mm	All	Circular	2	Solder	-55 °C	125 °C	Tin	Copper Alloy	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)
Amphenol ICC (FCI) 86130162114385E1LF	18.1 mm	0.713 in	Keying Slot	Male Pin	Gold or Gold-Palladium	Header	Latch Lock/Eject Hooks Long	250 VDC	16	0.693 in	17.6 mm	Shrouded - 4 Wall	Gray	0.1 in	2.54 mm	Through Hole	UL94 V-0	6.1 mm	0.24 in	Board to Cable/Wire	0.171 in	4.35 mm	All	Circular	2	Solder	-55 °C	125 °C	Tin	Copper Alloy	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)
Amphenol ICC (FCI) 86130162224345E1LF	16.65 mm	0.656 in	Keying Slot	Male Pin	Gold or Gold-Palladium	Header	Latch Lock/Eject Hooks Short	250 VDC	16	0.693 in	17.6 mm	Shrouded - 4 Wall	Gray	0.1 in	2.54 mm	Through Hole	UL94 V-0	6.1 mm	0.24 in	Board to Cable/Wire	0.114 in	2.9 mm	All	Circular	2	Solder	-55 °C	125 °C	Tin	Copper Alloy	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)
Amphenol ICC (FCI) 86130162114365E1LF	18.1 mm	0.713 in	Keying Slot	Male Pin	Gold or Gold-Palladium	Header	Latch Lock/Eject Hooks Long	250 VDC	16	0.693 in	17.6 mm	Shrouded - 4 Wall	Gray	0.1 in	2.54 mm	Through Hole	UL94 V-0	6.1 mm	0.24 in	Board to Cable/Wire	0.171 in	4.35 mm	All	Circular	2	Solder	-55 °C	125 °C	Tin	Copper Alloy	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)
Amphenol ICC (FCI) 86130162113365E1LF			Keying Slot	Male Pin	Gold or Gold-Palladium	Header	Latch Lock/Eject Hooks Long	250 VDC	16	0.344 in	8.75 mm	Shrouded - 4 Wall	Gray	0.1 in	2.54 mm	Through Hole Right Angle	UL94 V-0	6.1 mm	0.24 in	Board to Cable/Wire			All	Circular	2	Solder	-55 °C	125 °C	Tin	Copper Alloy	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	0.165 in	4.19 mm

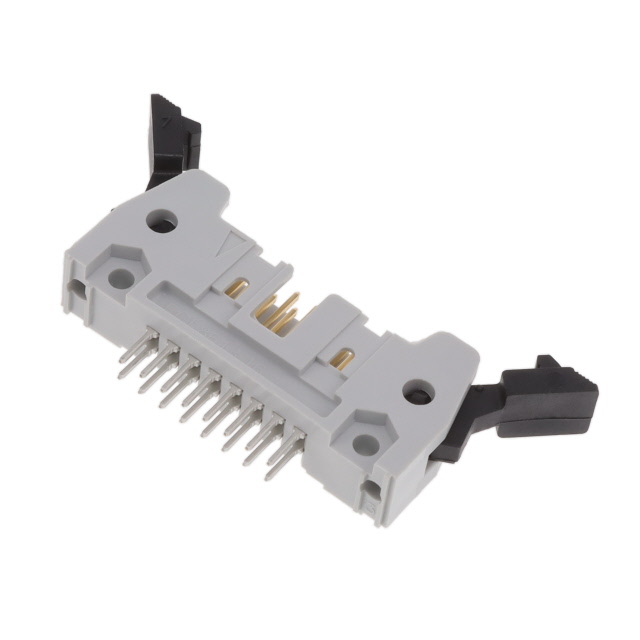

Amphenol ICC (FCI) 86130162114345E1LF	18.1 mm	0.713 in	Keying Slot	Male Pin	Gold or Gold-Palladium	Header	Latch Lock/Eject Hooks Long	250 VDC	16	0.693 in	17.6 mm	Shrouded - 4 Wall	Gray	0.1 in	2.54 mm	Through Hole	UL94 V-0	6.1 mm	0.24 in	Board to Cable/Wire	0.171 in	4.35 mm	All	Circular	2	Solder	-55 °C	125 °C	Tin	Copper Alloy	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)
