MS3106F24 Series

Catalog

CONN PLUG 4POS INLINE W/PINS

Part	Shell Material	Features	Ingress Protection	Number of Positions	Mounting Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Current Rating (Amps)	Orientation [x]	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Fastening Type	Shell Finish	Voltage Rating [custom]	Voltage Rating [custom]	Connector Type	Qualification	Contact Finish - Mating	Grade	Color	Orientation	Voltage Rating	Orientation [z]	Shell Size - Insert
ITT Cannon, LLC MS3106F24-22PX	Aluminum Alloy	Cable Clamp Coupling Nut	Environment Resistant	4	Free Hanging (In-Line)	22	24	74 A	X	-55 C	125 °C	Metal	Threaded	Olive Drab Cadmium	1250 VDC	900 VAC	Plug Male Pins	MIL-DTL-5015	Silver	Military	Olive Drab
ITT Cannon, LLC MS3106F24-22PW	Aluminum Alloy	Cable Clamp Coupling Nut	Environment Resistant	4	Free Hanging (In-Line)	22	24	74 A		-55 C	125 °C	Metal	Threaded	Olive Drab Cadmium	1250 VDC	900 VAC	Plug Male Pins	MIL-DTL-5015	Silver	Military	Olive Drab	W
ITT Cannon, LLC MS3106F24-7P	Aluminum Alloy	Cable Clamp Coupling Nut	Environment Resistant	16	Free Hanging (In-Line)	7	24	22 A 41 A		-55 C	125 °C	Metal	Threaded	Olive Drab Cadmium			Plug Male Pins	MIL-DTL-5015	Silver	Military	Olive Drab	N (Normal)	500 VAC 700 VDC

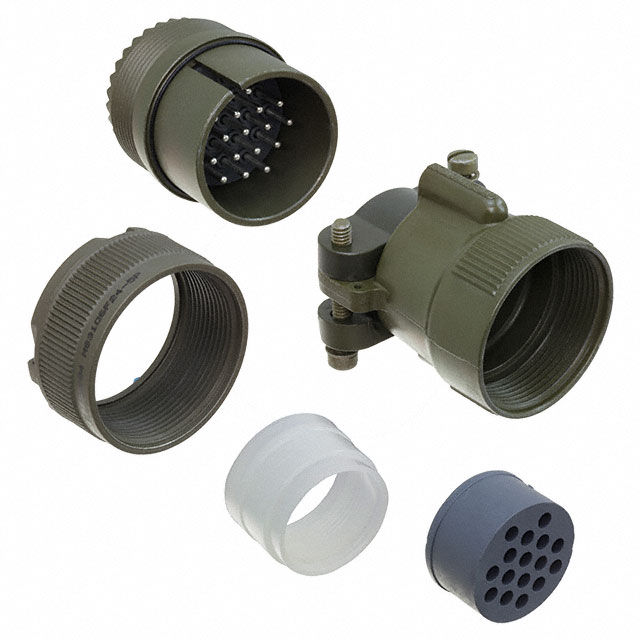

ITT Cannon, LLC MS3106F24-5P	Aluminum Alloy	Cable Clamp Coupling Nut	Environment Resistant	16	Free Hanging (In-Line)	5	24	22 A		-55 C	125 °C	Metal	Threaded	Olive Drab Cadmium			Plug Male Pins	MIL-DTL-5015	Silver	Military	Olive Drab	N (Normal)	500 VAC 700 VDC
ITT Cannon, LLC MS3106F24-28PWF187	Aluminum Alloy	Cable Clamp Coupling Nut	Environment Resistant	24	Free Hanging (In-Line)	28	24	22 A		-55 C	125 °C	Metal	Threaded	Olive Drab Cadmium			Plug Male Pins	MIL-DTL-5015	Silver	Military	Olive Drab	W	200 VAC 250 V
ITT Cannon, LLC MS3106F24-5PYF187	Aluminum Alloy	Cable Clamp Coupling Nut	Environment Resistant	16	Free Hanging (In-Line)	5	24	22 A		-55 C	125 °C	Metal	Threaded	Olive Drab Cadmium			Plug Male Pins	MIL-DTL-5015	Silver	Military	Olive Drab	Y	500 VAC 700 VDC
ITT Cannon, LLC MS3106F24-22P	Aluminum Alloy	Cable Clamp Coupling Nut	Environment Resistant	4	Free Hanging (In-Line)	22	24	74 A		-55 C	125 °C	Metal	Threaded	Olive Drab Cadmium	1250 VDC	900 VAC	Plug Male Pins	MIL-DTL-5015	Silver	Military	Olive Drab	N (Normal)
ITT Cannon, LLC MS3106F24-5SZ	Aluminum Alloy	Cable Clamp Coupling Nut	Environment Resistant	16	Free Hanging (In-Line)	5	24	22 A		-55 C	125 °C	Metal	Threaded	Olive Drab Cadmium			Plug Female Sockets	MIL-DTL-5015	Silver	Military	Olive Drab		500 VAC 700 VDC	Z
ITT Cannon, LLC MS3106F24-5PX	Aluminum Alloy	Cable Clamp Coupling Nut	Environment Resistant	16	Free Hanging (In-Line)	5	24	22 A	X	-55 C	125 °C	Metal	Threaded	Olive Drab Cadmium			Plug Male Pins	MIL-DTL-5015	Silver	Military	Olive Drab		500 VAC 700 VDC
ITT Cannon, LLC MS3106F24-2S	Aluminum Alloy	Cable Clamp Coupling Nut	Environment Resistant	7	Free Hanging (In-Line)			41 A		-55 C	125 °C	Metal	Threaded	Olive Drab Cadmium	1250 VDC	900 VAC	Plug Female Sockets	MIL-DTL-5015	Silver	Military	Olive Drab	N (Normal)			24-2
