J80120 Series
Manufacturer: Telegartner Inc
Beta
⌘K

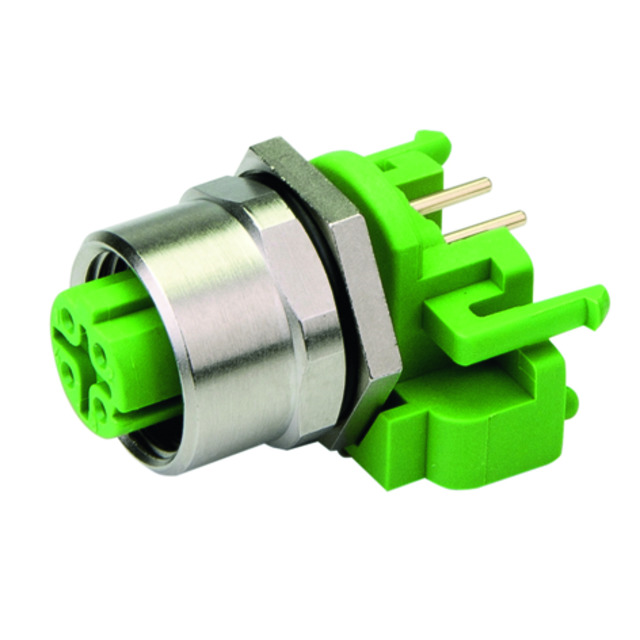

CU-CN M12D-BS C5 THR W/O HOUS
| Part | Orientation | Color | Contact Material | Termination | Contact Finish - Mating | Ingress Protection | Features | Insert Material [custom] | Insert Material [custom] | Number of Positions | Shielding | Mounting Type | Shell Size - Insert | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Connector Type | Shell Material | Fastening Type | Shell Finish | Mounting Feature | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

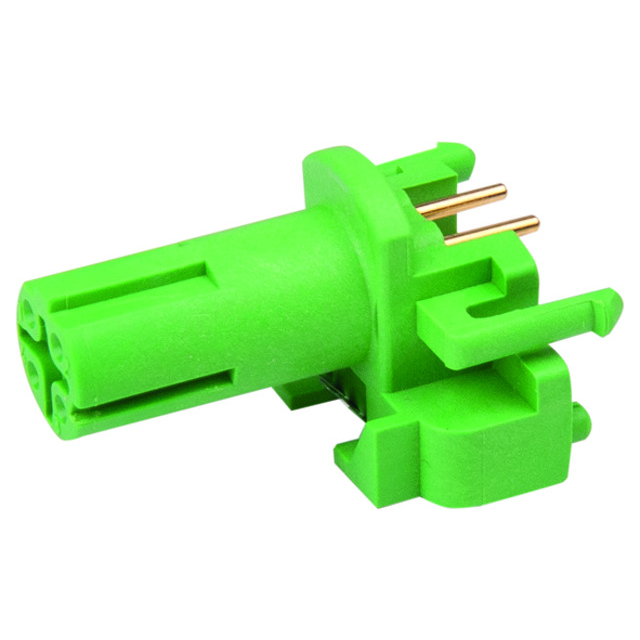

 Telegartner Inc | D | Green | Bronze | Solder | Gold | IP67 - Dust Tight Waterproof | Board Lock Insert Only Requires Shell | Nylon | Polyamide (PA) | 4 | Unshielded | Through Hole | M12-4 | 85 °C | -40 C | Industrial | Insert Female Sockets | |||||

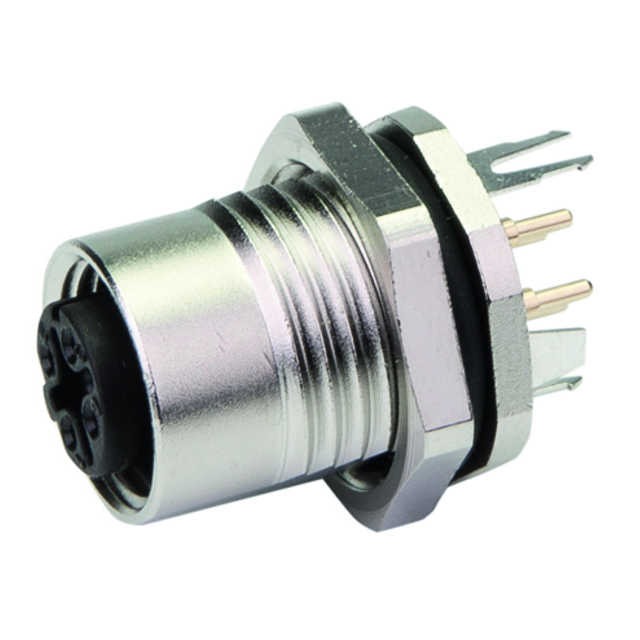

 Telegartner Inc | D | Silver | Bronze | Solder | Gold | IP67 - Dust Tight Waterproof | Board Lock | Nylon | Polyamide (PA) | 4 | Unshielded | Panel Mount Through Hole | M12-4 | 85 °C | -40 C | Industrial | Plug Female Sockets | Brass and Zinc Die Cast | Threaded | Nickel | Bulkhead - Front Side Nut | Metal |
 Telegartner Inc | D | Silver | Bronze | Solder | Gold | IP67 - Dust Tight Waterproof | Board Lock | Nylon | Polyamide (PA) | 4 | Unshielded | Panel Mount Through Hole | M12-4 | 85 °C | -40 C | Industrial | Plug Female Sockets | Brass and Zinc Die Cast | Threaded | Nickel | Bulkhead - Front Side Nut | Metal |

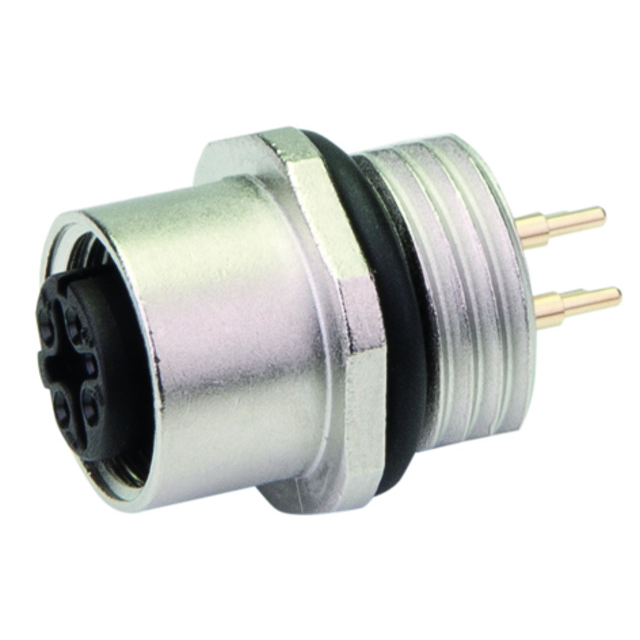

 Telegartner Inc | D | Silver | Bronze | Solder | Gold | IP67 - Dust Tight Waterproof | Nylon | Polyamide (PA) | 4 | Unshielded | Panel Mount Through Hole | M12-4 | 85 °C | -40 C | Industrial | Plug Female Sockets | Brass and Zinc Die Cast | Threaded | Nickel | Bulkhead - Rear Side Nut | Metal |
