3UG4511 Series

Manufacturer: Siemens

Catalog

PHASE SEQUENCE MONITORING

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Trip Range [Max]	Trip Range [Min]	Contact Rating @ Voltage	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Circuit
Siemens 3UG45112BP20	-25 °C	60 °C	DIN Rail	500 V AC	320 V AC	3 A 400 VAC	Relay	500 VAC	320 VAC	Phase Sequence	DPDT (2 Form C)

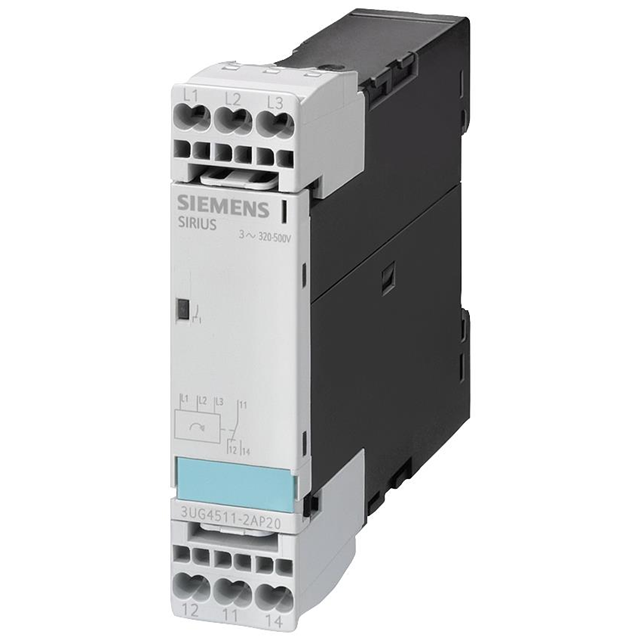

Siemens 3UG45112AN20	-25 °C	60 °C	DIN Rail	260 V AC	160 V AC	3 A 400 VAC	Relay	260 VAC	160 VAC	Phase Sequence	SPDT (1 Form C)
Siemens 3UG45112BQ20	-25 °C	60 °C	DIN Rail	690 V AC	420 V AC	3 A 400 VAC	Relay	690 VAC	420 VAC	Phase Sequence	DPDT (2 Form C)
Siemens 3UG45112AQ20	-25 °C	60 °C	DIN Rail	690 V AC	420 V AC	3 A 400 VAC	Relay	690 VAC	420 VAC	Phase Sequence	SPDT (1 Form C)

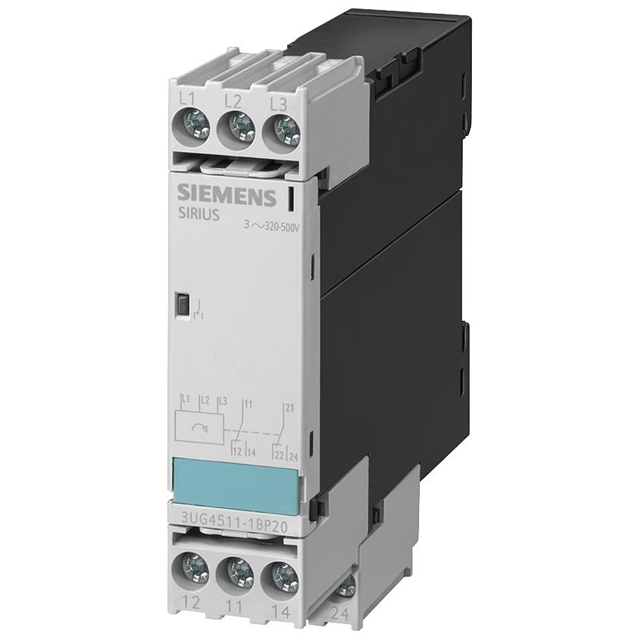

Siemens 3UG45111BQ20	-25 °C	60 °C	DIN Rail	690 V AC	420 V AC	3 A 400 VAC	Relay	690 VAC	420 VAC	Phase Sequence	DPDT (2 Form C)
Siemens 3UG45112BN20	-25 °C	60 °C	DIN Rail	260 V AC	160 V AC	3 A 400 VAC	Relay	260 VAC	160 VAC	Phase Sequence	DPDT (2 Form C)
