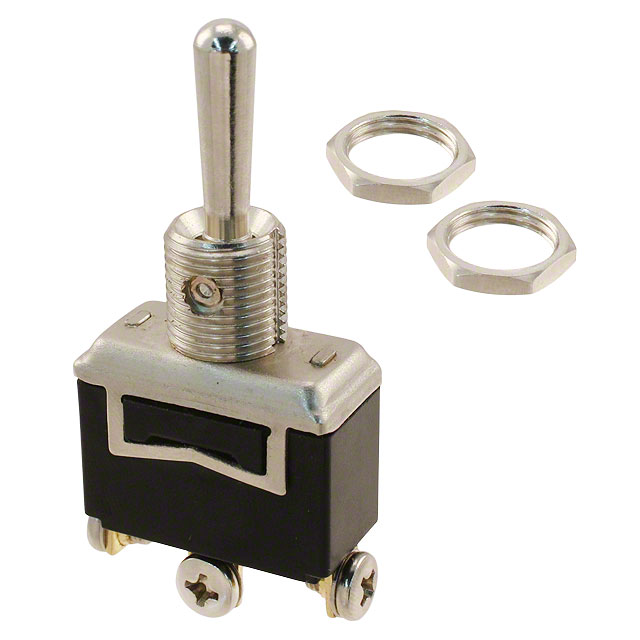

ST16 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TOGGLE SPST 20A 125V
| Part | Actuator Material | Electrical Life | Illumination | Termination Style | Actuator Type | Panel Cutout Dimensions [diameter] | Switch Function | Voltage Rating - AC | Bushing Thread | Current Rating (Amps) | Mounting Type | Actuator Length [x] | Circuit | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | Brass Nickel Plated | 6000 Cycles | Non-Illuminated | Screw Terminal | Standard Round | 12 mm | On-Off | 125 V | M12 x 1 | 20 A | Panel Mount | 19.5 mm | SPST | 0 °C | 85 °C |
E-Switch | Brass Nickel Plated | 6000 Cycles | Non-Illuminated | Screw Terminal | Standard Round | 12 mm | On-Off | 125 V | 15/32-32 | 20 A | Panel Mount | 19.5 mm | SPST | 0 °C | 85 °C |
 E-Switch | Brass Nickel Plated | 6000 Cycles | Non-Illuminated | Screw Terminal | Standard Round | 12 mm | Mom-Off-Mom | 125 V | M12 x 1 | 20 A | Panel Mount | 19.5 mm | SPDT | 0 °C | 85 °C |
