FMG2 Series

Catalog

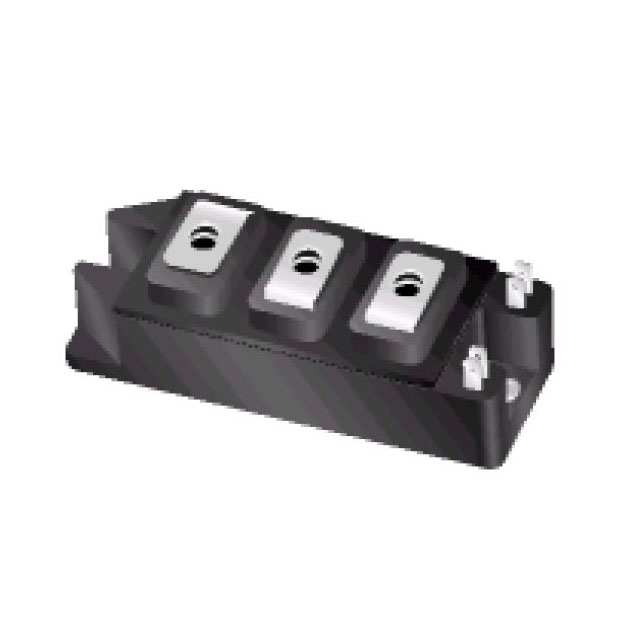

IGBT MODULE 600V 75A 310W 7PMGA

Part	Input Capacitance (Cies) @ Vce	Power - Max [Max]	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max) [Max]	Package / Case	Input	Configuration	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]
ON Semiconductor FMG2G75US60	7.056 nF	310 W	2.8 V	250 µA	7PM-GA	Standard	Half Bridge	7PM-GA	75 A	150 °C	-40 °C	Chassis Mount	600 V
ON Semiconductor FMG2G75US60	7.056 nF	310 W	2.8 V	250 µA	7PM-GA	Standard	Half Bridge	7PM-GA	75 A	150 °C	-40 °C	Chassis Mount	600 V
ON Semiconductor FMG2G150US60		595 W	2.7 V	250 µA	7PM-HA	Standard	Half Bridge	7PM-HA	150 A	150 °C	-40 °C	Chassis Mount	600 V
ON Semiconductor FMG2G200US60		695 W	2.7 V	250 µA	7PM-HA	Standard	Half Bridge	7PM-HA	200 A	150 °C	-40 °C	Chassis Mount	600 V
ON Semiconductor FMG2G400US60		1136 W	2.7 V	250 µA	7PM-IA	Standard	Half Bridge	7PM-IA	400 A	150 °C	-40 °C	Chassis Mount	600 V
ON Semiconductor FMG2G400US60		1136 W	2.7 V	250 µA	7PM-IA	Standard	Half Bridge	7PM-IA	400 A	150 °C	-40 °C	Chassis Mount	600 V
ON Semiconductor FMG2G400LS60		1136 W	1.8 V 15 V 400 A	250 µA	7PM-IA	Standard	Half Bridge	7PM-IA	400 A	150 °C	-40 °C	Chassis Mount	600 V
ON Semiconductor FMG2G150US60E	12.84 nF	500 W	2.8 V	250 µA	7PM-GA	Standard	Half Bridge	7PM-GA	150 A	150 °C	-40 °C	Chassis Mount	600 V
