9936 Series
Manufacturer: Belden Inc.
Beta
⌘K

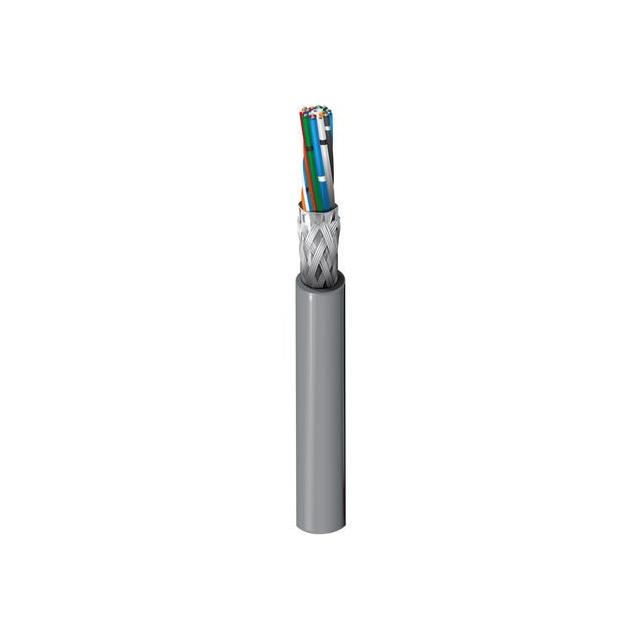

CABLE 15COND 24AWG CHROME
| Part | Shield Material | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Jacket (Insulation) Material | Features | Usage | Conductor Material | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Jacket Color | Number of Conductors | Length | Length | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 80 °C | -30 ░C | Foam Polyethylene (FPE) | 0.345 in | 8.76 mm | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Drain Wire | Computer | Copper Tinned | Braid Foil | 7 | 32 AWG | 0.035 in | 0.889 mm | UL Style 2919 | Chrome | 15 | 304.8 m | 1000 ft | 24 AWG |
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 80 °C | -30 ░C | Foam Polyethylene (FPE) | 0.345 in | 8.76 mm | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Drain Wire | Computer | Copper Tinned | Braid Foil | 7 | 32 AWG | 0.035 in | 0.889 mm | UL Style 2919 | Chrome | 15 | 152.4 m | 500 ft | 24 AWG |
