572-001 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN RCPT HSG 1POS BLUE
| Part | Note | Mounting Type | Fastening Type | Contact Type | Number of Rows | Connector Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Positions | Insulation Material | Contact Termination | Applications | Termination | Number of Positions Loaded | Material Flammability Rating | Contact Finish - Post | Shrouding | Contact Shape | Ingress Protection | Current Rating (Amps) | Insulation Height [z] | Insulation Height [z] | Insulation Color | Style | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

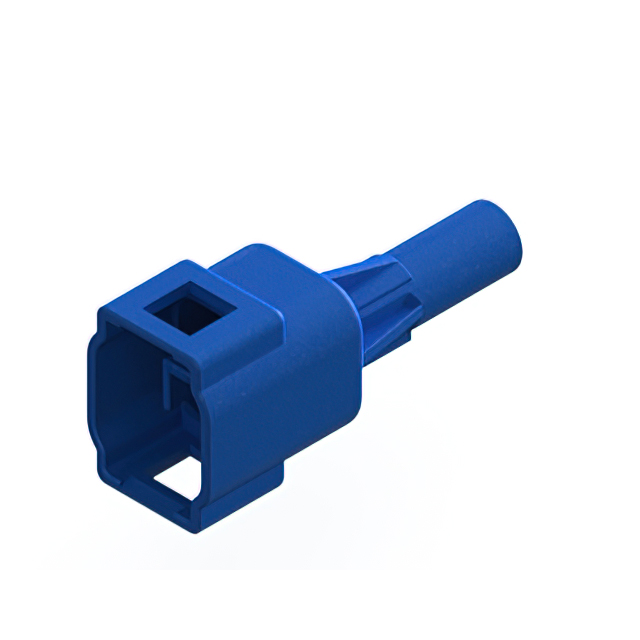

 EDAC Inc. | Contacts Not Included | Free Hanging (In-Line) | Latch Lock | Female Socket | 1 | Receptacle | Waterproof | -40 C | 105 ░C | Blue | 1 | Polybutylene Terephthalate (PBT) | Crimp | ||||||||||||||

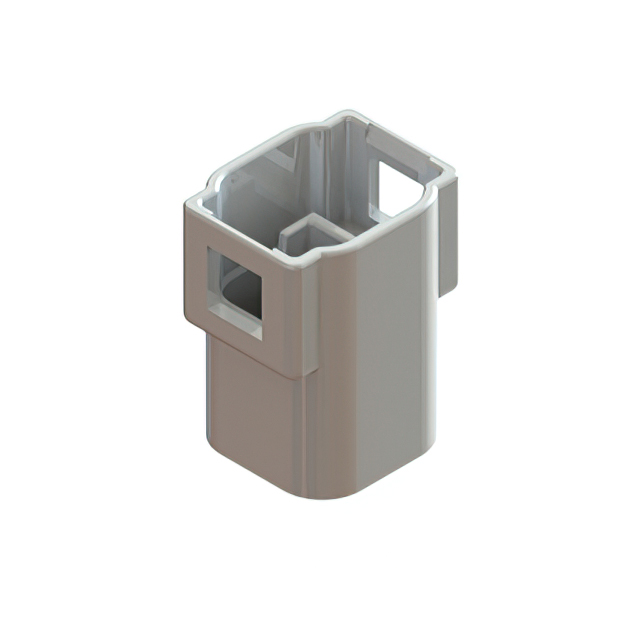

 EDAC Inc. | Through Hole | Latch Holder | Male Pin | 1 | Header | -40 C | 105 ░C | 1 | Polybutylene Terephthalate (PBT) Glass Filled | Automotive General Purpose | Solder | All | UL94 V-0 | Tin | Shrouded - 4 Wall | Circular | IP67 | 10 A | 19.5 mm | 0.768 in | White | Board to Cable/Wire | Brass | ||||

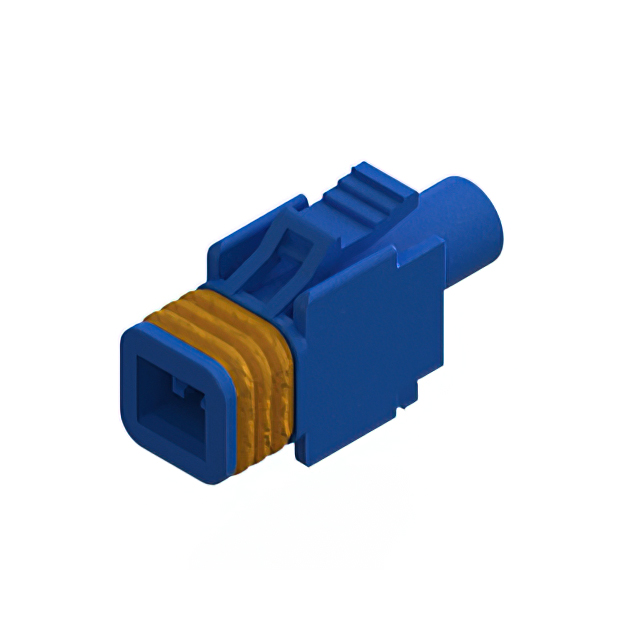

 EDAC Inc. | Contacts Not Included | Free Hanging (In-Line) | Latch Holder | Pin | 1 | Plug | Waterproof | -40 C | 105 ░C | Blue | 1 | Polybutylene Terephthalate (PBT) | Crimp |
