25113 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

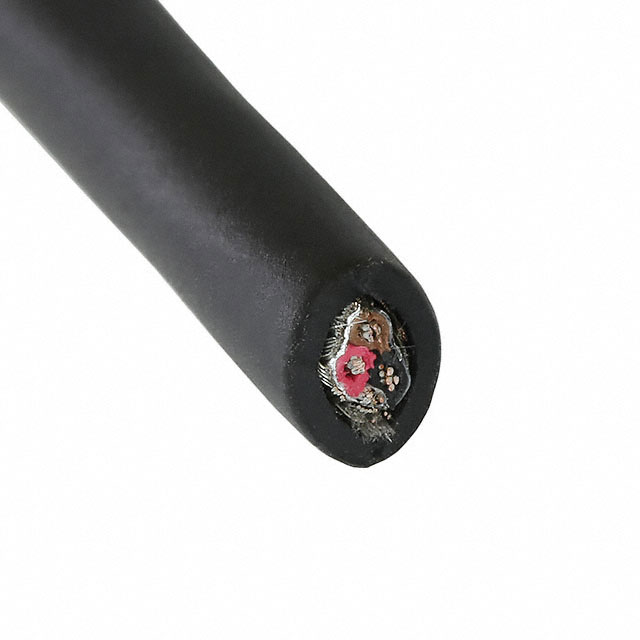

CABLE 3COND 24AWG ORG SHLD 1000'
| Part | Shield Coverage | Shield Material | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Jacket Color | Number of Conductors | Conductor Insulation | Wire Gauge | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Voltage | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | -30 ░C | 90 °C | 304.8 m | 1000 ft | Orange | 3 | Poly-Vinyl Chloride (PVC) | 24 AWG | Multi-Conductor | 0.813 mm | 0.032 in | Biological Compatibility Drain Wire Rip Cord | 4.85 mm | 0.191 " | Copper Tinned | ISO 10993 UL Style 20668 | 7 | 32 AWG | Braid Foil | 300 VDC | Polyurethane (PU) |
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | -30 ░C | 90 °C | 304.8 m | 1000 ft | Black | 3 | Poly-Vinyl Chloride (PVC) | 24 AWG | Multi-Conductor | 0.813 mm | 0.032 in | Biological Compatibility Drain Wire Rip Cord | 4.85 mm | 0.191 " | Copper Tinned | ISO 10993 UL Style 20668 | 7 | 32 AWG | Braid Foil | 300 VDC | Polyurethane (PU) |
