AEE01C Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K

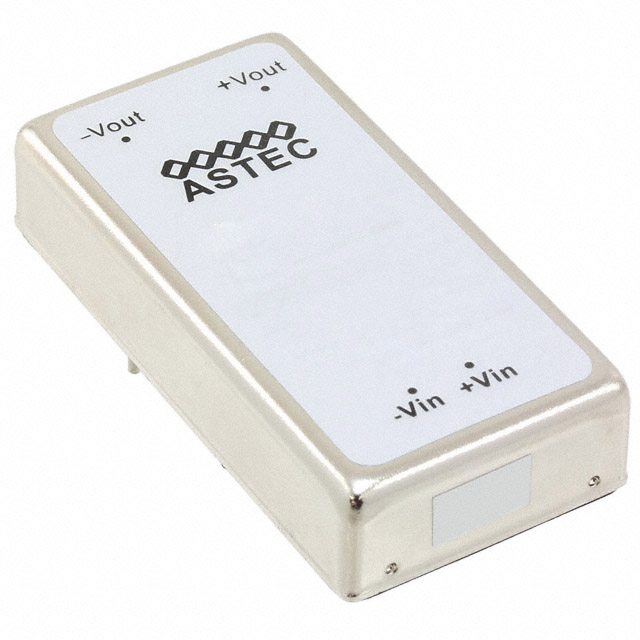

MODULE DC-DC 1-OUT 15V 1A 15W 4-PIN
| Part | Efficiency | Mounting Type | Applications | Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Voltage - Isolation | Number of Outputs | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Voltage - Output 1 | Features | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 84 % | Through Hole | ITE (Commercial) | Isolated Module | 2 in | 0.44 in | 50.8 mm | 25.4 mm | 1 " | 11.3 mm | 15 W | 71 °C | -40 C | 9 V | 1.5 kV | 1 | 1 A | 36 V | 15 V | SCP | 4-DIP Module |

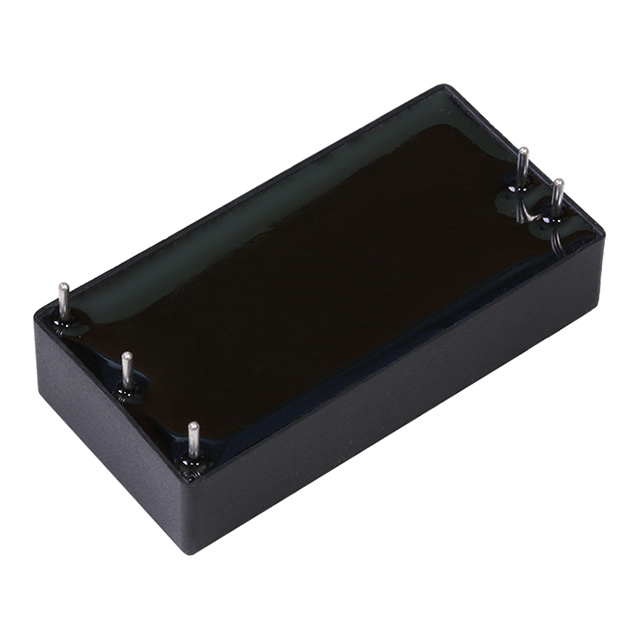

 ARTESYN / Advanced Energy | 87 % | Through Hole | ITE (Commercial) Medical | Isolated Module | 2 in | 0.47 " | 50.8 mm | 25.4 mm | 1 " | 12 mm | 15 W | 80 ¯C | -40 °C | 36 V | 4.2 kV | 1 | 1 A | 75 V | 15 V | OCP OVP SCP | 5-DIP Module 4 Leads |
