FFSD-08 Series

Catalog

.050 X .050 C.L. FEMALE IDC ASSE

...

Part	Number of Rows	Length	Length	Length	Contact Finish	Shielding	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Pitch - Cable [x]	Pitch - Cable	Features	Cable Termination	Number of Positions	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Length	Length [x]

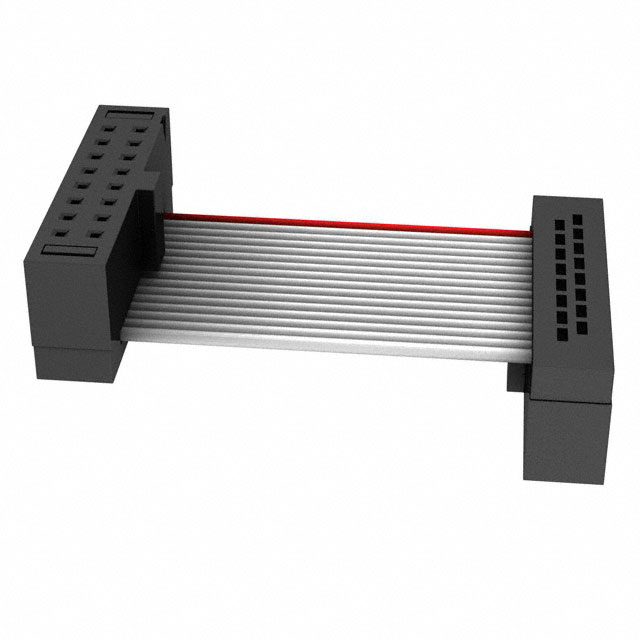

Samtec Inc. FFSD-08-D-04.80-01-N-R	2	4.8 "	0.4 '	121.92 mm	Gold	Unshielded	10 Áin	0.25 Ám	Socket to Socket Reversed	0.025 in	0.64 mm	Polarizing Key	IDC	16	0.05 in	1.27 mm

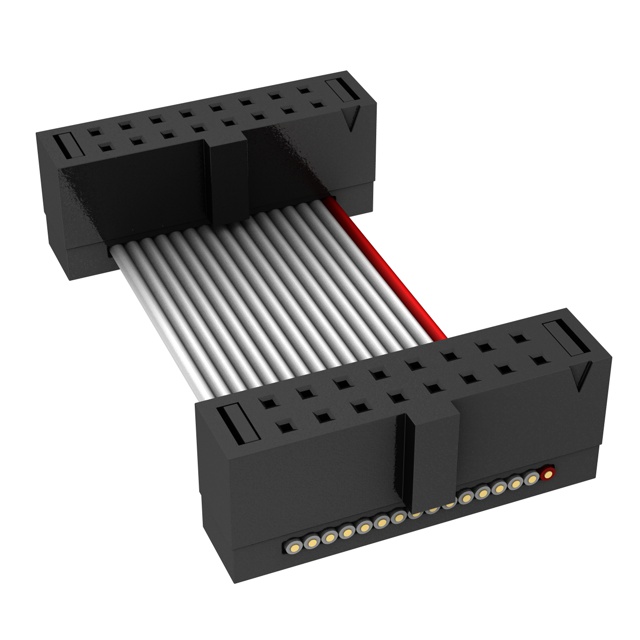

Samtec Inc. FFSD-08-D-39.37-01-N	2				Gold	Unshielded	10 Áin	0.25 Ám	Socket to Socket	0.025 in	0.64 mm	Polarizing Key	IDC	16	0.05 in	1.27 mm	1 m	3.28 ft
Samtec Inc. FFSD-08-D-22.00-01-N	2				Gold	Unshielded	10 Áin	0.25 Ám	Socket to Socket	0.025 in	0.64 mm	Polarizing Key	IDC	16	0.05 in	1.27 mm	558.8 mm	1.83 ft
Samtec Inc. FFSD-08-D-17.30-01-N-R	2				Gold	Unshielded	10 Áin	0.25 Ám	Socket to Socket Reversed	0.025 in	0.64 mm	Polarizing Key Reverse Wiring	IDC	16	0.05 in	1.27 mm	439.42 mm	1.44 '
Samtec Inc. FFSD-08-S-06.00-01-N-RW	2	6 "		152.4 mm	Gold	Unshielded	10 Áin	0.25 Ám	Socket to Cable	0.025 in	0.64 mm	Polarizing Key Reverse Wiring	IDC	16	0.05 in	1.27 mm			0.5 '
Samtec Inc. FFSD-08-D-02.50-01-N-R	2				Gold	Unshielded	10 Áin	0.25 Ám	Socket to Socket Reversed	0.025 in	0.64 mm	Polarizing Key Reverse Wiring	IDC	16	0.05 in	1.27 mm	63.5 mm	2.496 in		2.5 in
Samtec Inc. FFSD-08-D-66.00-01-N	2		5.5 ft	1.68 m	Gold	Unshielded	10 Áin	0.25 Ám	Socket to Socket	0.025 in	0.64 mm	Polarizing Key	IDC	16	0.05 in	1.27 mm
Samtec Inc. FFSD-08-D-19.70-01-N	2				Gold	Unshielded	10 Áin	0.25 Ám	Socket to Socket	0.025 in	0.64 mm	Polarizing Key	IDC	16	0.05 in	1.27 mm	500.38 mm	1.64 ft
Samtec Inc. FFSD-08-D-07.87-01-N-RW	2	7.87 in	0.656 ft	200 mm	Gold	Unshielded	10 Áin	0.25 Ám	Socket to Socket	0.025 in	0.64 mm	Polarizing Key Reverse Wiring	IDC	16	0.05 in	1.27 mm
Samtec Inc. FFSD-08-D-19.69-01-N	2		1.64 ft	500.13 mm	Gold	Unshielded	10 Áin	0.25 Ám	Socket to Socket	0.025 in	0.64 mm	Polarizing Key	IDC	16	0.05 in	1.27 mm
