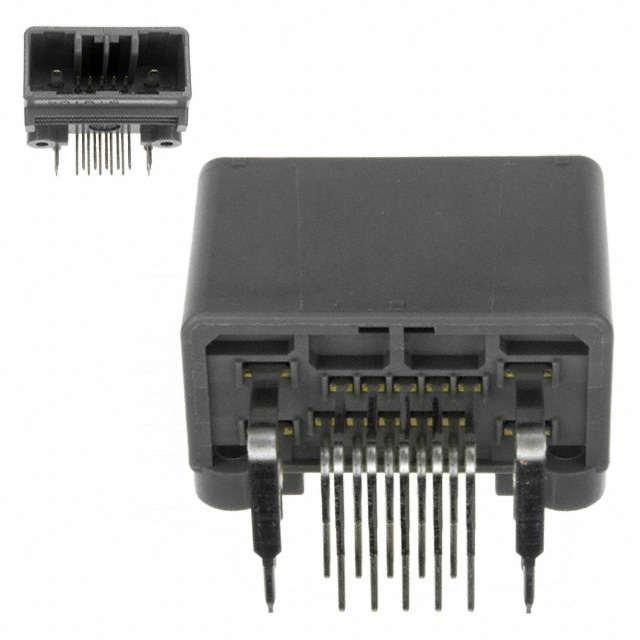

MX34014N Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN HEADER R/A 14POS 2.2MM
| Part | Applications | Fastening Type | Insulation Color | Number of Positions | Current Rating (Amps) | Style | Mounting Type | Contact Finish - Post | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Material | Contact Material | Features | Shrouding | Contact Type | Row Spacing - Mating | Row Spacing - Mating | Insulation Height | Insulation Height | Connector Type | Contact Length - Mating | Contact Length - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Contact Shape | Termination | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | Locking Ramp | Gray | 14 | 3 A | Board to Cable/Wire | Right Angle Through Hole | Tin | All | 0.126 " | 3.2 mm | Glass Filled Syndiotactic Polystyrene (SPS) | Brass | Mounting Flange | Shrouded - 4 Wall | Male Pin | 0.118 in | 3 mm | 16.5 mm | 0.65 in | Header | 0.303 in | 7.7 mm | 85 °C | -40 C | 0.087 in | 2.2 mm | Square | Solder | 2 |
