151064 Series

2.00mm Pitch, Milli-Grid PCB Header, Single Row, Right-Angle, Surface Mount, 0.75µm Gold (Au) Plating, with Peg, 7 Circuits, Tube

Manufacturer: Molex

Catalog

2.00mm Pitch, Milli-Grid PCB Header, Single Row, Right-Angle, Surface Mount, 0.75µm Gold (Au) Plating, with Peg, 7 Circuits, Tube

Part	Contact Shape	Contact Type	Insulation Height	Insulation Height	Shrouding	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Voltage Rating	Termination	Current Rating (Amps)	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Mounting Type	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Number of Rows	Fastening Type	Number of Positions	Features	Pitch - Mating [x]	Pitch - Mating [x]	Style	Applications
Molex 1510641260	Square	Male Pin	6.68 mm	0.263 in	Shrouded - 4 Wall	Gold	-40 °C	70 °C	All	125 VAC	Solder	Varies by Wire Gauge	UL94 V-0	0.142 in	3.6 mm	Surface Mount Right Angle	Black	15 µin	0.38 µm	Copper Alloy	Tin	2 çm	78.7 çin	Header	1	Latch Holder	10	Board Guide Pick and Place	0.079 in	2 mm	Board to Cable/Wire
Molex 1510641258	Square	Male Pin	6.68 mm	0.263 in	Shrouded - 4 Wall	Gold	-40 °C	70 °C	All	125 VAC	Solder	Varies by Wire Gauge	UL94 V-0	0.142 in	3.6 mm	Surface Mount Right Angle	Black	15 µin	0.38 µm	Copper Alloy	Tin	2 çm	78.7 çin	Header	1	Latch Holder	8	Board Guide Pick and Place	0.079 in	2 mm	Board to Cable/Wire
Molex 1510641308	Square	Male Pin	6.68 mm	0.263 in	Shrouded - 4 Wall	Gold	-40 °C	70 °C	All	125 VAC	Solder	Varies by Wire Gauge	UL94 V-0	0.142 in	3.6 mm	Surface Mount Right Angle	Black	29.5 Áin	0.75 Ám	Copper Alloy	Tin	2 çm	78.7 çin	Header	1	Latch Holder	8	Pick and Place	0.079 in	2 mm	Board to Cable/Wire

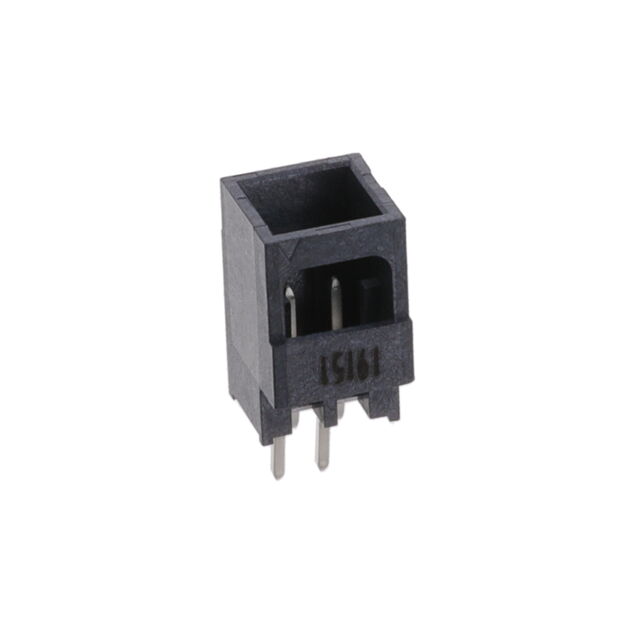

Molex 1510641002	Square	Male Pin			Shrouded - 4 Wall				All		Solder		UL94 V-0	0.141 in	3.6 mm	Surface Mount Right Angle	Black	98.4 µin	2.5 µm	Copper Alloy	Tin	2 çm	78.7 çin	Header	1	Latch Holder	2		0.079 in	2 mm	Board to Cable/Wire	Automotive General Purpose Telecommunications
Molex 1510641257	Square	Male Pin	6.68 mm	0.263 in	Shrouded - 4 Wall	Gold	-40 °C	70 °C	All	125 VAC	Solder	Varies by Wire Gauge	UL94 V-0	0.142 in	3.6 mm	Surface Mount Right Angle	Black	15 µin	0.38 µm	Copper Alloy	Tin	2 çm	78.7 çin	Header	1	Latch Holder	7	Board Guide Pick and Place	0.079 in	2 mm	Board to Cable/Wire
Molex 1510641252	Square	Male Pin	6.68 mm	0.263 in	Shrouded - 4 Wall	Gold	-40 °C	70 °C	All	125 VAC	Solder	Varies by Wire Gauge	UL94 V-0	0.142 in	3.6 mm	Surface Mount Right Angle	Black	15 µin	0.38 µm	Copper Alloy	Tin	2 çm	78.7 çin	Header	1	Latch Holder	2	Board Guide Pick and Place	0.079 in	2 mm	Board to Cable/Wire

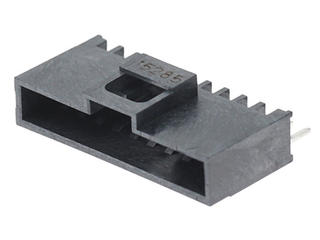

Molex 1510641357	Square	Male Pin	6.68 mm	0.263 in	Shrouded - 4 Wall	Gold	-40 °C	70 °C	All	125 VAC	Solder	Varies by Wire Gauge	UL94 V-0	0.142 in	3.6 mm	Surface Mount Right Angle	Black	29.5 Áin	0.75 Ám	Copper Alloy	Tin	2 çm	78.7 çin	Header	1	Latch Holder	7	Board Guide Pick and Place	0.079 in	2 mm	Board to Cable/Wire
Molex 1510641159	Square	Male Pin	6.68 mm	0.263 in	Shrouded - 4 Wall	Gold	-40 °C	70 °C	All	125 VAC	Solder	Varies by Wire Gauge	UL94 V-0	0.142 in	3.6 mm	Surface Mount Right Angle	Black	1.97 Áin	0.05 Ám	Copper Alloy	Tin	2 çm	78.7 çin	Header	1	Latch Holder	9	Board Guide Pick and Place	0.079 in	2 mm	Board to Cable/Wire
Molex 1510641255	Square	Male Pin	6.68 mm	0.263 in	Shrouded - 4 Wall	Gold	-40 °C	70 °C	All	125 VAC	Solder	Varies by Wire Gauge	UL94 V-0	0.142 in	3.6 mm	Surface Mount Right Angle	Black	15 µin	0.38 µm	Copper Alloy	Tin	2 çm	78.7 çin	Header	1	Latch Holder		Board Guide Pick and Place	0.079 in	2 mm	Board to Cable/Wire
Molex 1510641355	Square	Male Pin	6.68 mm	0.263 in	Shrouded - 4 Wall	Gold	-40 °C	70 °C	All	125 VAC	Solder	Varies by Wire Gauge	UL94 V-0	0.142 in	3.6 mm	Surface Mount Right Angle	Black	29.5 Áin	0.75 Ám	Copper Alloy	Tin	2 çm	78.7 çin	Header	1	Latch Holder		Board Guide Pick and Place	0.079 in	2 mm	Board to Cable/Wire
