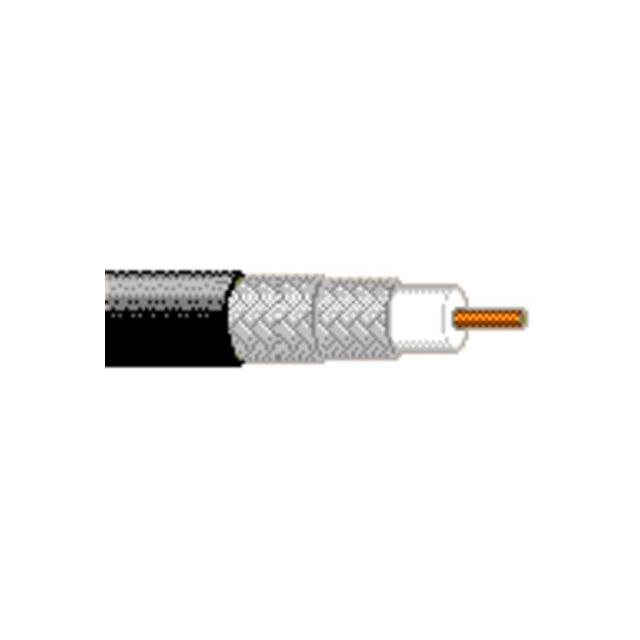

8281B Series
Manufacturer: Belden Inc.
Beta
⌘K
#20 FRSFPE DBLB FRPVC
| Part | VoP, Velocity of Propagation | Shield Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Shield Coverage | Length [x] | Length [x] | Impedance | Cable Type | Shield Type | Jacket Color | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Group | Conductor Strand | Jacket (Insulation) Material | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 66 | Copper Tinned | 5.03 mm | 0.198 in | 80 °C | -40 C | Copper Bare | 95 % | 304.8 m | 1000 ft | 75 Ohms | Coaxial | Double Braid | Black | 20 AWG | 0.305 in | 7.75 mm | RG-59 | Solid | Poly-Vinyl Chloride (PVC) | Video |
