7119-1512 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

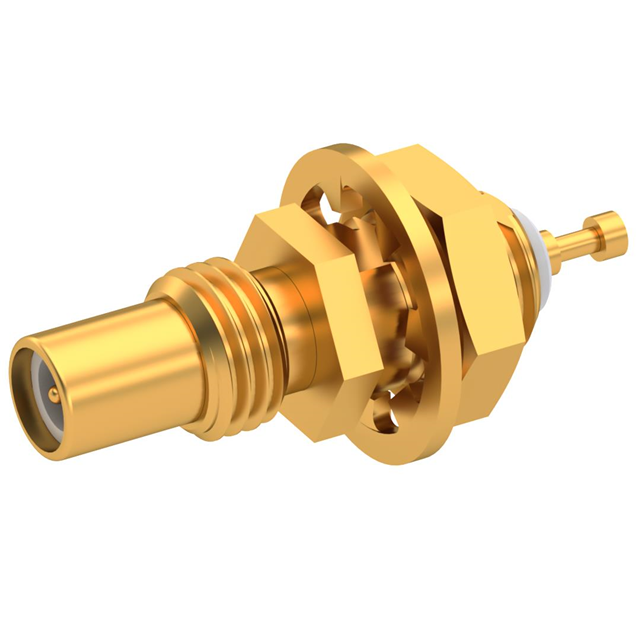

SSMC M STR BHD TUR
| Part | Mating Cycles | Dielectric Material | Voltage Rating | Center Contact Plating | Body Finish | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Housing Color | Fastening Type | Contact Termination | Impedance | Shield Termination | Number of Ports | Mounting Type | Mounting Feature | Connector Style | Connector Type | Frequency - Max [Max] | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | 250 V | Gold | Gold | 1 Connector 1 Lockwasher 1 Nut | -65 ░C | 165 °C | Beryllium Copper | Gold | Snap-On | Solder | 50 Ohms | Solder | 1 | Panel Mount | Bulkhead - Rear Side Nut | SSMC | Jack Male Pin | 12.4 GHz | Beryllium Copper |
