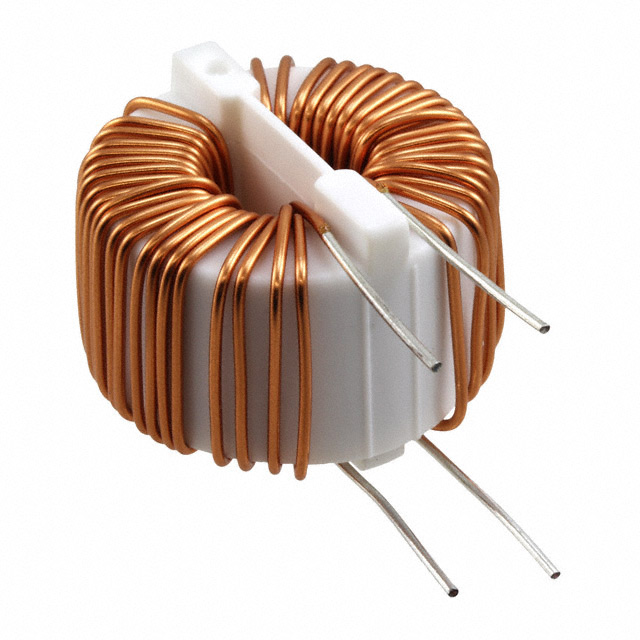

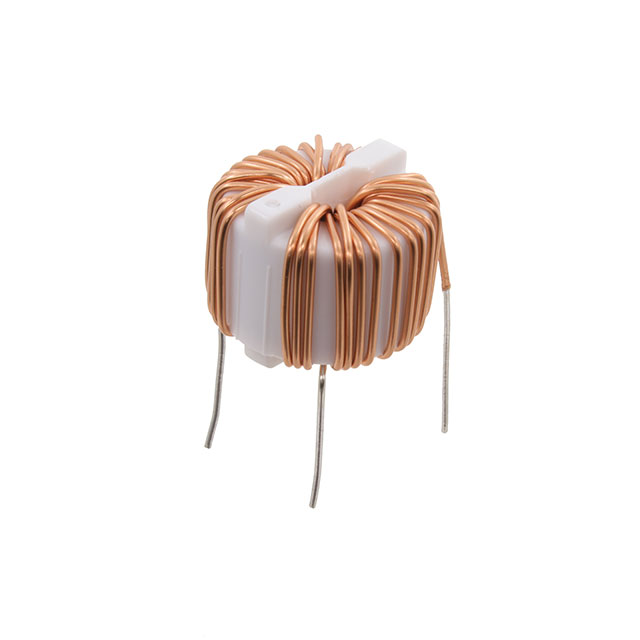

SC-05 Series

Manufacturer: KEMET

Catalog

COMMON MODE FILTER, 8MH, 4A ROHS COMPLIANT: YES

Part	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Inductance @ Frequency	Filter Type	Number of Lines	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Current Rating (Max) [Max]	Voltage Rating - DC	DC Resistance (DCR) (Max)	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Height (Max) [z]	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [custom]	Height (Max) [z]	Height (Max) [z]	DC Resistance (DCR) (Max) [Max]	Height (Max) [z]	Height (Max) [diameter]	Height (Max) [diameter]	Size / Dimension [y]	Size / Dimension [y]

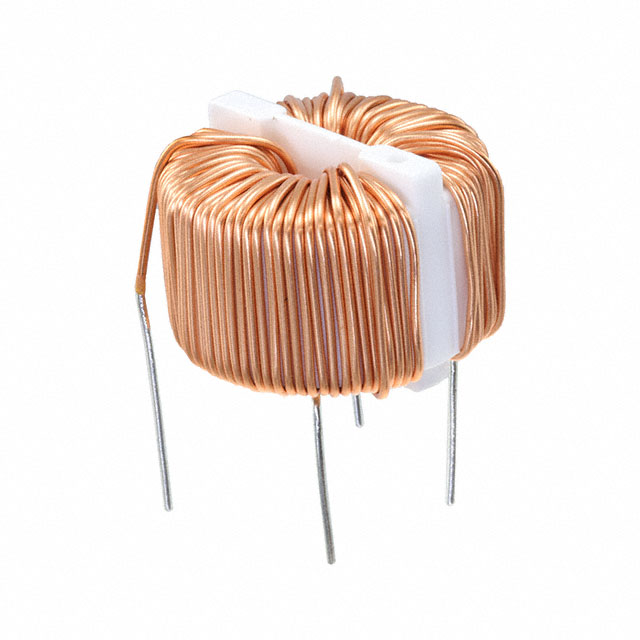

KEMET SC-05-803	23 mm	0.906 in	8 mH	Power Line	2	-40 C	105 ░C	250 V	4 A	250 V	90 mOhm	Through Hole	34 mm	1.339 "	4 PC Pin Horizontal No Base
KEMET SC-05-492JH			4.9 mH	Power Line	2	-40 C	120 °C	250 V	5 A	250 V		Through Hole			4 PC Pin Horizontal	0.709 in 18 mm
KEMET SC-05-812JH			8.1 mH	Power Line	2	-40 C	120 °C	250 V	5 A	250 V		Through Hole			4 PC Pin Horizontal	0.709 in 18 mm
KEMET SC-05-200			2 mH	Power Line	2	-40 C	105 ░C	250 V	5 A	250 V	70 mOhm	Through Hole	32 mm		Vertical No Base 4 PC Pin	32 mm	0.866 "	1.26 "	22 mm	1.26 in
KEMET SC-05-203			2 mH	Power Line	2	-40 C	105 ░C	250 V	5 A	250 V	70 mOhm	Through Hole	32 mm	1.26 in	4 PC Pin Horizontal No Base	22 mm					0.866 in
KEMET SC-05-E06H			10 kHz 600 µH	Power Line	2	-40 C	120 °C	250 V	5 A	250 V		Through Hole	25 mm	0.984 "	4 PC Pin Horizontal No Base	0.512 in						17.5 mOhm	13 mm
KEMET SC-05-1503			10.5 mH	Power Line	2	-40 C	105 ░C	250 V	5 A	250 V		Through Hole	34 mm	1.339 "	Vertical No Base 4 PC Pin							100 mOhm		1.339 in	34 mm

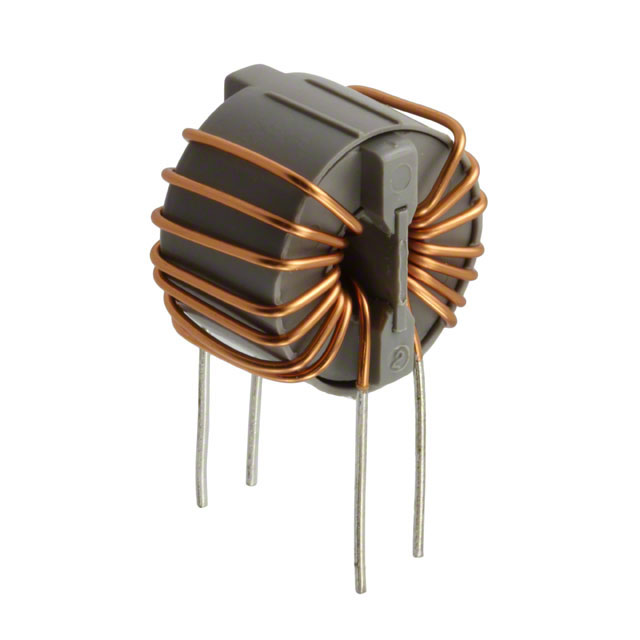

KEMET SC-05-D030			30 µH	Power Line	2	-40 C	105 ░C	250 V	5 A	250 V		Through Hole	25 mm		Vertical No Base 4 PC Pin	25 mm		0.984 in			0.984 in	20 mOhm				19 mm	0.748 in

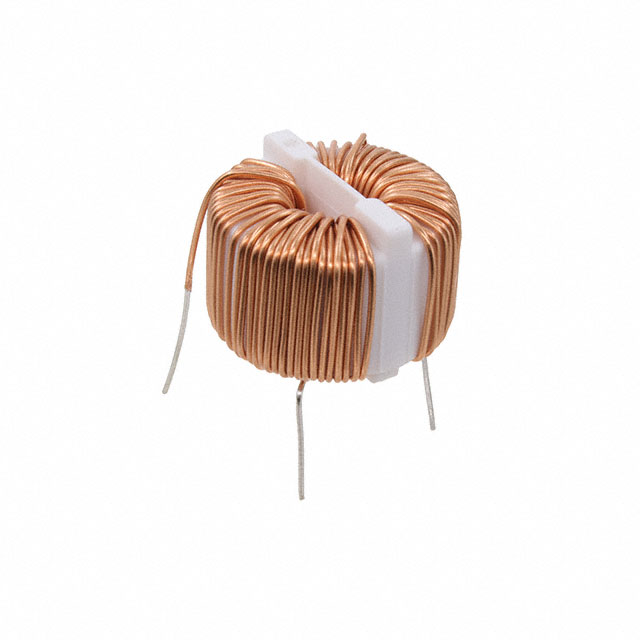

KEMET SC-05-503	23 mm	0.906 in	5 mH 100 kHz	Power Line	2	-40 C	105 ░C	250 V	4 A	250 V		Through Hole	34 mm	1.339 "	4 PC Pin Horizontal No Base							80 mOhm
KEMET SC-05-1100			10 kHz 11 mH	Power Line	2	-40 C	120 °C	250 V	5 A	250 V		Through Hole	34 mm	1.339 "	Vertical No Base 4 PC Pin							55 mOhm		1.339 in	34 mm
