PPTC061 Series

Catalog

CONN HDR 6POS 0.1 TIN SMD

Part	Contact Material	Insulation Material	Contact Shape	Contact Finish - Post	Current Rating (Amps)	Number of Rows	Termination	Connector Type	Pitch - Mating	Pitch - Mating	Voltage Rating	Number of Positions Loaded	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Mounting Type	Insulation Color	Contact Type	Material Flammability Rating	Fastening Type	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PPTC061KFXC	Phosphor Bronze	Polyester	Square	Tin	3 A	1	Solder	Header Top or Bottom Entry	0.1 "	2.54 mm	250 V	All	6	-40 C	105 ░C	0.28 in	7.1 mm	Surface Mount	Black	Female Socket	UL94 V-0	Push-Pull

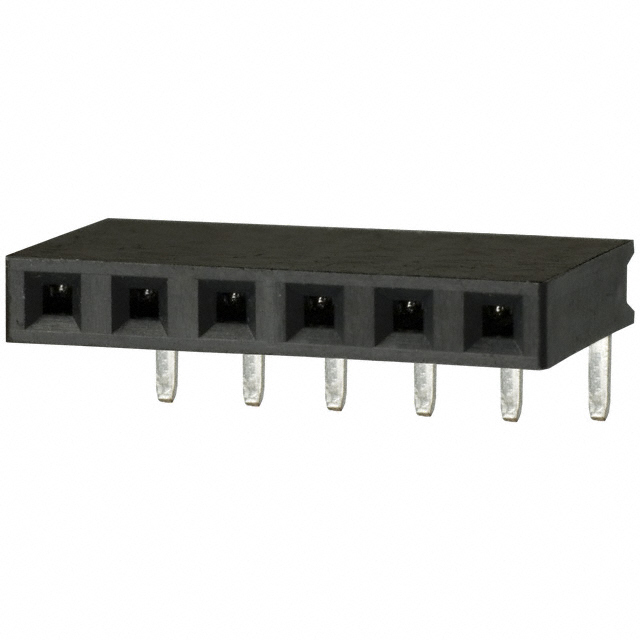

Sullins Connector Solutions PPTC061LGBN	Phosphor Bronze	Polyester	Square	Tin	3 A	1	Solder	Header	0.1 "	2.54 mm	250 V	All	6	-40 C	105 ░C	0.1 in	2.54 mm	Right Angle Through Hole	Black	Female Socket	UL94 V-0	Push-Pull	0.124 in	3.15 mm
Sullins Connector Solutions PPTC061LGBN-RC	Phosphor Bronze	Polyester	Square	Tin	3 A	1	Solder	Header	0.1 "	2.54 mm	250 V	All	6	-40 C	105 ░C	0.1 in	2.54 mm	Right Angle Through Hole	Black	Female Socket	UL94 V-0	Push-Pull	0.124 in	3.15 mm
